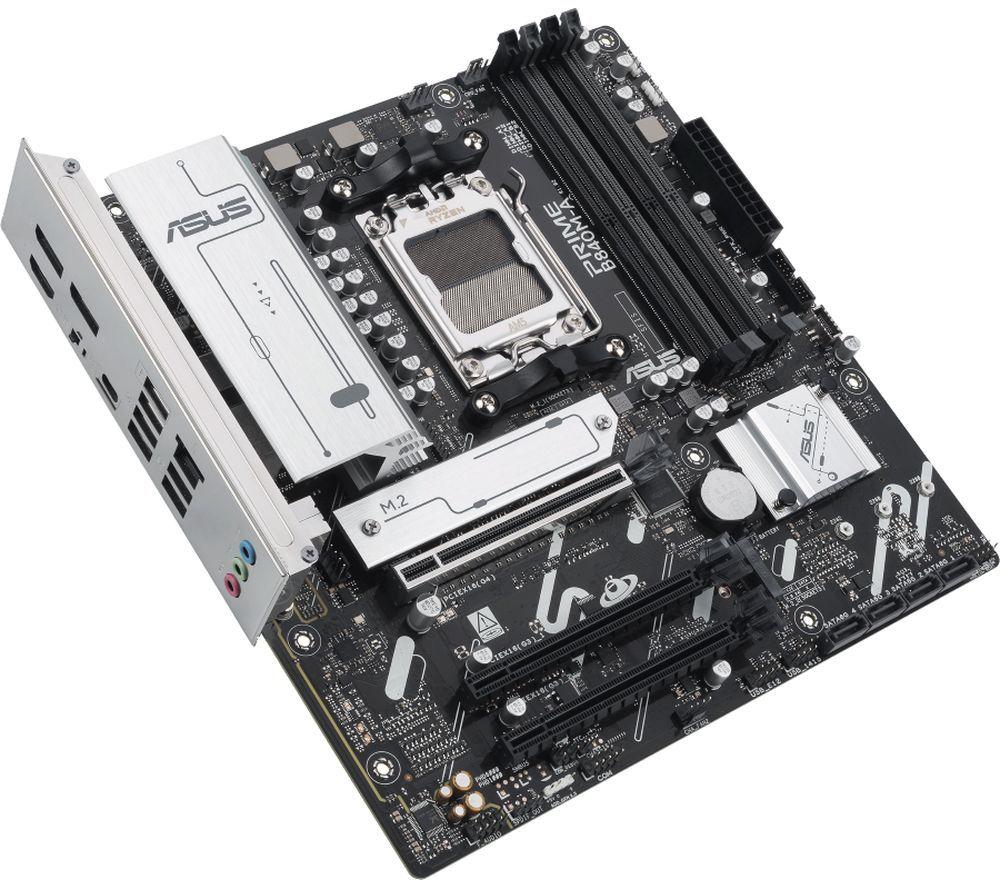

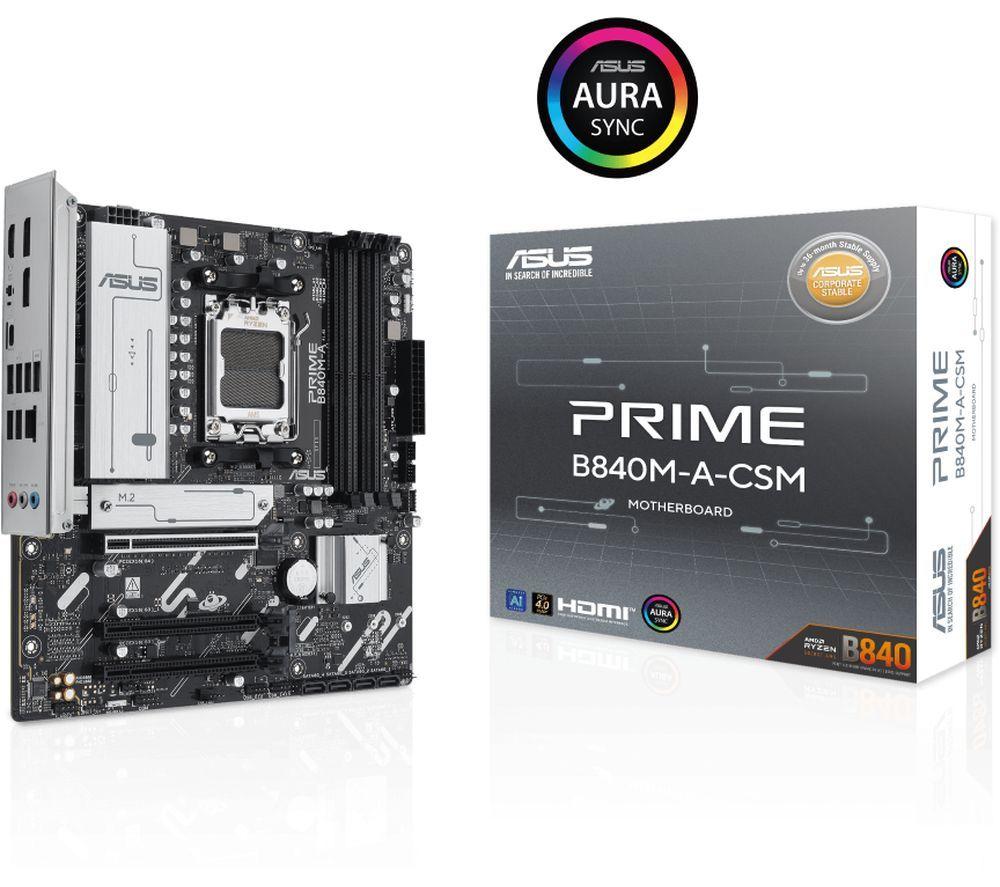

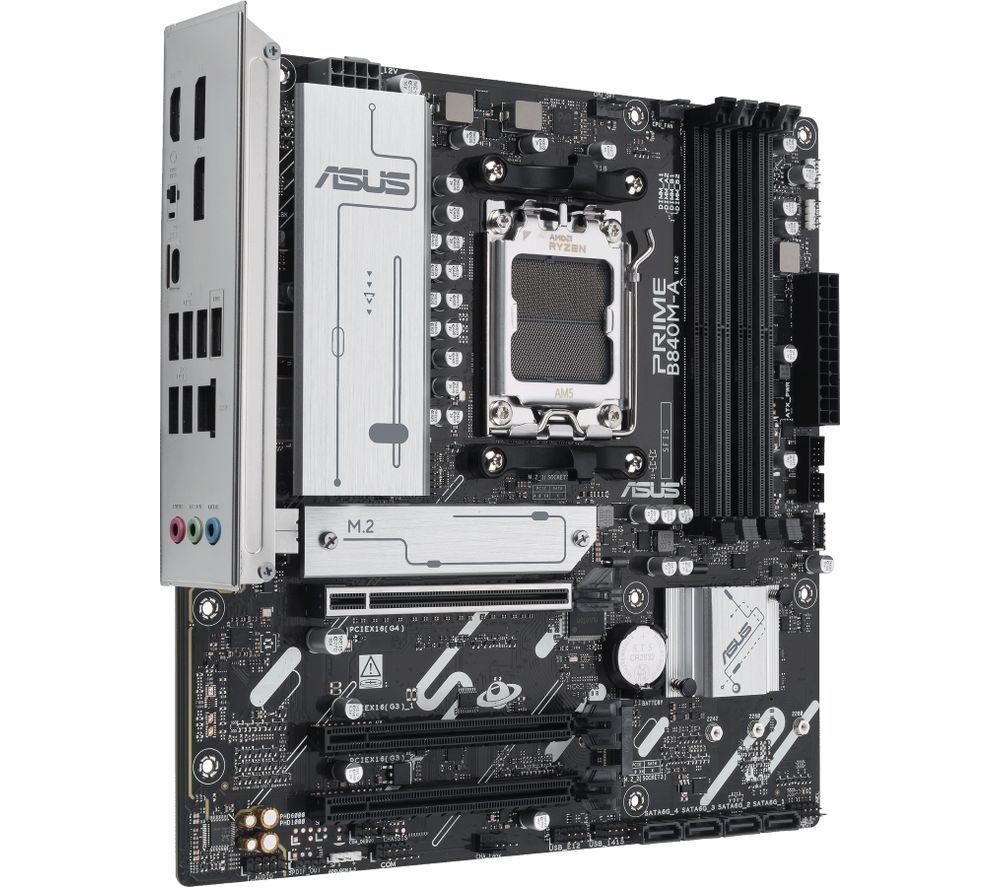

ASUS PRIME B840M-A-CSM AM5 Motherboard

ASUS PRIME B840M-A-CSM AM5 Motherboard

Item No. 10277541

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFY_BNPL12_GAMING_WK52_1 INFYCNTRL_FNDD_1
Form factor: microATX
Socket: AMD AM5
Chipset: AMD B840
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Form factor: microATX
Socket: AMD AM5
Chipset: AMD B840
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Product code: 764821

This microATX board from ASUS is designed to handle powerful components. It's ready for AMD's 9000 series processors, so it's designed for the future of AI computing. Its 6-layer PCB design quickly dissipates heat, giving you more headroom for overclocking. You can plug in up to 192 GB of DDR5 RAM and blaze through your workflows. And with PCIe 4.0 you can have high-speed storage that won't make you wait around.

Good to know

- With 2.5Gb Ethernet you'll have super-fast and rock-solid internet connection for online games
- To make sure your hardware stays cool under load, there are massive onboard heatsinks and hybrid fan headers
- It's got an AIO Pump header, so you can slap some proper liquid cooling on your CPU
- Sync the RGB lighting on your motherboard with your components and peripherals using ASUS Aura Sync

Technical specifications for ASUS PRIME B840M-A-CSM AM5 Motherboard

OVERVIEW

Form factor
microATX
Chipset
AMD B840
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000, 8000, 7000 Series desktop processors
Memory slots
4 x DIMM (Max RAM: 192 GB)
Memory standard
DDR5
Operating systems supported
- Windows 10 (64-bit)
- Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 2
LAN
Realtek 2.5Gb Ethernet x 1
Audio
Audio jacks x 3
USB
- USB 3.2 Gen 2 Type-A x 2
- USB 3.2 Gen 1 Type-A x 2
- USB 2.0 x 2
- USB 3.0 x 11

INTERNAL CONNECTIVITY

BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
Expansion slots
- PCIe 4.0 (x16) (supports x16 mode) × 1
- PCIe 4.0 (x16) (supports x8 / x4 mode) × 1
- PCIe 3.0 (x16) (supports x1 mode) × 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 3
Cooling
4-pin CPU fan header x 1
Case
Power LED x 1
Buttons
- Power
- Reset
- BIOS FlashBack
Power
- 24-pin EATX x 1
- 8-pin ATX 12 V x 2
Other internal connections
- Addressable Gen 2 headers x 3
- Clear CMOS header x 1
- COM Port header x 1
- Front Panel Audio header x 1
- S/PDIF Out header x 1
- SPI TPM header (14-1 pin) x 1
- 10-1 pin Front System Panel header x 1
USB
USB 3.2 Gen 1 Type-C x 1
USB 3.2 Gen 1 (Type-A) x 1
USB 2.0 x 2

GENERAL

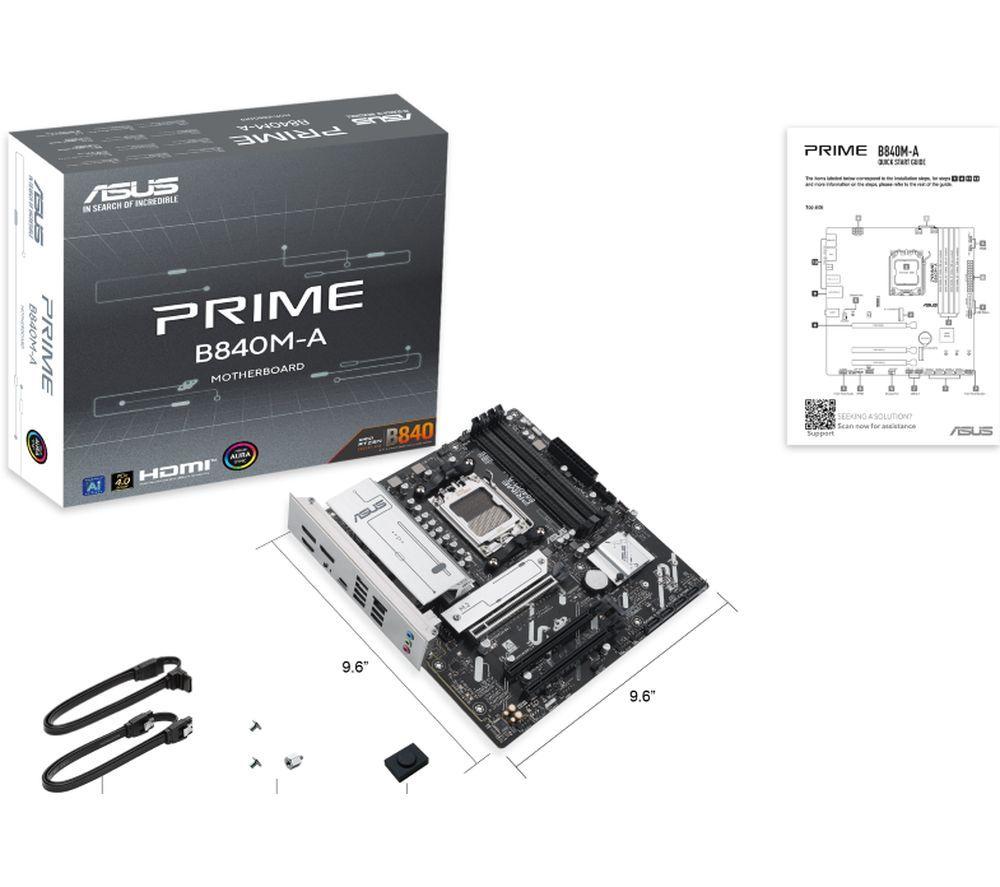

Box contents
- ASUS PRIME B840M-A-CSM WIFI AM5 Motherboard
- SATA 6Gb/s cables x 2
- M.2 rubber package x 1
- Screw packages for M.2 SSD x 3
- Documentation
- Quick start guide
Software included
- ASUS Exclusive Software
- UEFI BIOS
Weight
0.91 kg
Manufacturer’s guarantee
3 years
Dimensions
244 x 244 x 50 mm (H x W x D)
Colour
Black
