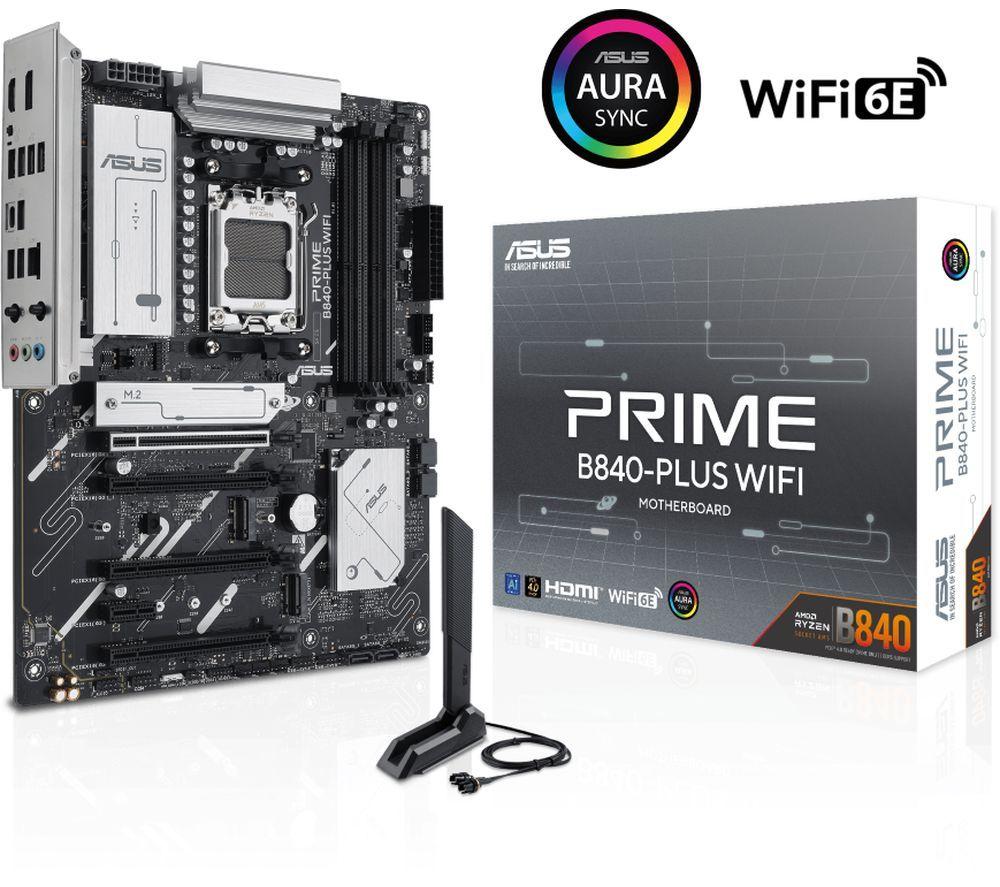

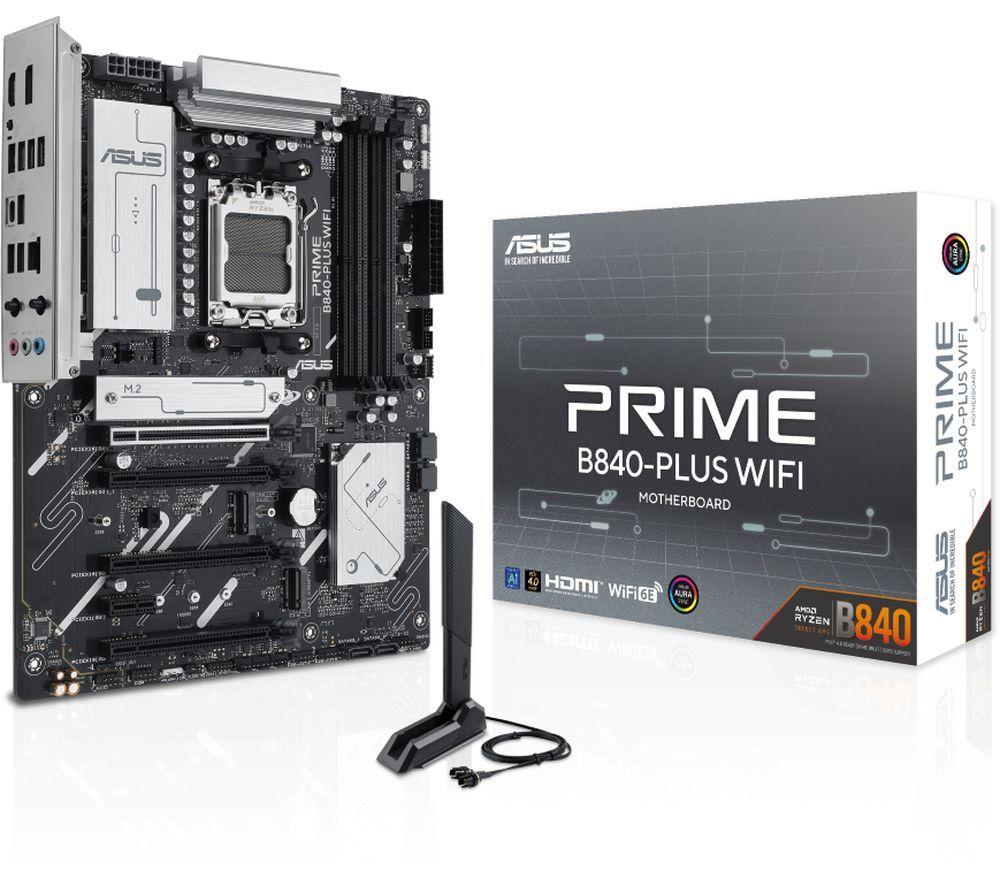

ASUS PRIME B840-PLUS WIFI AM5 Motherboard

ASUS PRIME B840-PLUS WIFI AM5 Motherboard

Item No. 10277507
INFYCNTRL_BNPL6_GENERIC_6 INFYCNTRL_FNDD_1
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B840
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Free Next Day Delivery (All day 8am-8pm) on selected Gaming
£194.99

Spread the cost with Currys flexpay

Learn more
icon-pound

Your available credit to spend: -1.0

Make monthly payments

From £7.90 per month for 36 months*

Or buy now, pay later

Pay as much or as little as you like for 6 months. Settle in full by 20 January 2026 & pay no interest

*Illustrative example: Credit amount £194.99. Pay 36 monthly payments of £7.90. Total amount payable £284.40. The interest rate for this purchase is 29.9%.

Representative example: Rate of interest 29.9% (variable). 29.9% APR representative (variable). Assumed Credit Limit £1,200.

Credit offers require a Currys flexpay account. With a Currys flexpay account you get a credit limit that you can use for future purchases at your standard flexpay interest rate.
Your personalised APR will be set by Creation Consumer Finance Ltd and will depend on your individual circumstances. Monthly prices shown reflect a 29.9% Representative APR (variable) excluding interest free or low interest offers.
Add this item Add another item
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later
Saved
Checking Stock...
Deliver to tomorrowwhen you order by 9pm FREE delivery 3-5 days on orders over £40
See all delivery options
Next day delivery available when you order by 9pm FREE delivery 3-5 days on orders over £40
Check delivery for your area
Checking Stock...
FREE in-store collection in as little as 1 HOUR Check stores near you
FREE in-store collection in 2 days - See more stores
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B840
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Product code: 548681

This ATX board from ASUS is designed to handle powerful components. It's ready for AMD's 9000 series processors, so it's designed for the future of AI computing. Its 6-layer PCB design quickly dissipates heat, giving you more headroom for overclocking. You can plug in up to 192 GB of DDR5 RAM and blaze through your workflows. And with PCIe 4.0 you can have high-speed storage that won't make you wait around.

Good to know

- With WiFi 6E and 2.5Gb Ethernet you'll have super-fast and rock-solid internet connection for online games
- To make sure your hardware stays cool under load, there are massive onboard heatsinks and hybrid fan headers
- It's got an AIO Pump header, so you can slap some proper liquid cooling on your CPU
- Sync the RGB lighting on your motherboard with your components and peripherals using ASUS Aura Sync

Technical specifications for ASUS PRIME B840-PLUS WIFI AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD B840
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000, 8000, 7000 Series desktop processors
Memory slots
4 x DIMM (Max RAM: 192 GB)
Memory standard
DDR5
Operating systems supported
- Windows 10 (64-bit)
- Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 2.5Gb Ethernet x 1
Audio
Audio jacks x 3
USB
Rear:
- USB Type-A (10 Gbps) x 1
- USB Type-C (10 Gbps) x 1
- USB Type-A (5 Gbps) x 2
- USB 2.0 x 4
Front:
- USB 3.2 Gen 1 (supports USB Type-C) x 1
- USB 3.2 Gen 1 (supports 2 additional USB 3.2 Gen 1 ports) x 1
- USB 2.0 (support 4 additional USB 2.0 ports) x 2
Other external connections
Vertical M.2 slot (Key M) x 3

INTERNAL CONNECTIVITY

BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
Expansion slots
- PCIe 4.0 (x16) (supports x16 mode) × 1
- PCIe 4.0 (x16) (supports x8 / x4 mode) × 1
- PCIe 3.0 (x16) (supports x4 mode) × 1
- PCIe 3.0 (x16) (supports x1 mode) × 2
- PCIe 3.0 (x1) (supports x1 mode) × 1
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 3
Cooling
- 4-pin CPU fan header x 1
- 4-pin CPU OPT fan header x 1
- 4-pin AIO Pump header x 1
- 4-pin chassis fan headers x 4
Case
- Power LED x 1
- HDD LED x 1
Buttons
- Power
- Reset
- BIOS FlashBack
Power
- 24-pin EATX x 1
- 8-pin ATX 12 V x 1
- 4-pin ATX 12 V x 1
Other internal connections
- Addressable Gen 2 headers x 3
- Clear CMOS header x 1
- Chassis Intrusion header x 1
- COM Port header x 1
- Front Panel Audio header (F_AUDIO) x 1
- S/PDIF Out header x 1
- SPI TPM header (14-1 pin) x 1
- 10-1 pin System Panel header x 1
- Thunderbolt (USB 4) header x 1
USB
1 x USB 5 Gbps connector (supports USB Type-C) x 1
1 x USB 5 Gbps header (supports 2 additional USB 5 Gbps ports) x 1
2 x USB 2.0 headers (support 4 additional USB 2.0 ports) x 2

GENERAL

Box contents
- Asus PRIME B840-PLUS WIFI AM5 Motherboard
- SATA cables x 2
- M.2 rubber package x 2
- M.2 screw package x 2
- ASUS WiFi Q-Antenna x 1
- Documentation
- Quick start guide
Software included
- ASUS Exclusive Software
- UEFI BIOS
Weight
1.05 kg
Manufacturer’s guarantee
3 years
Dimensions
48 x 244 x 305 mm (H x W x D)
Colour
Black
