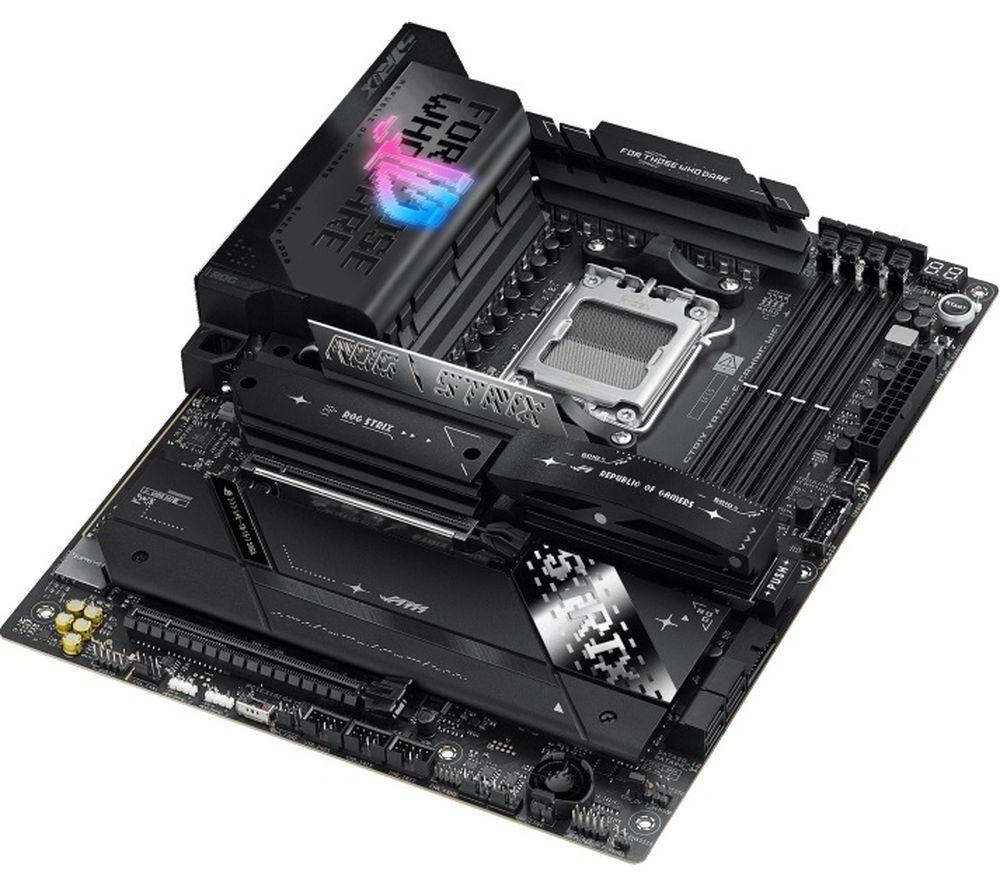

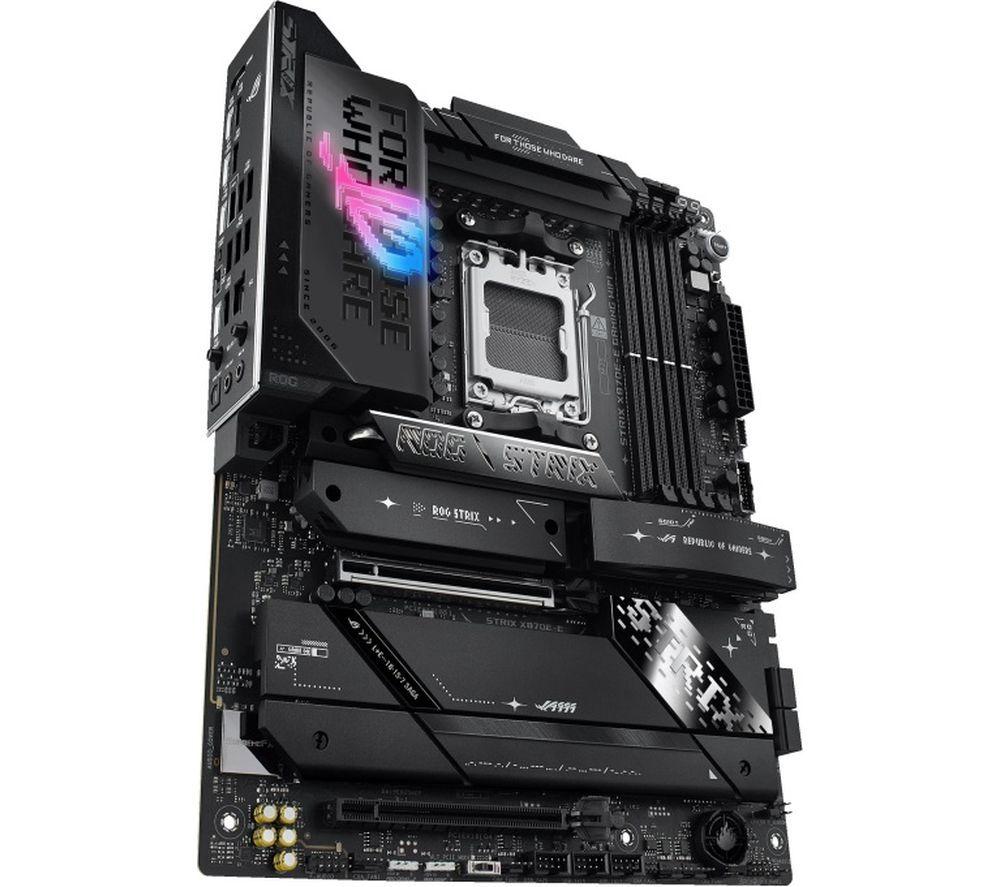

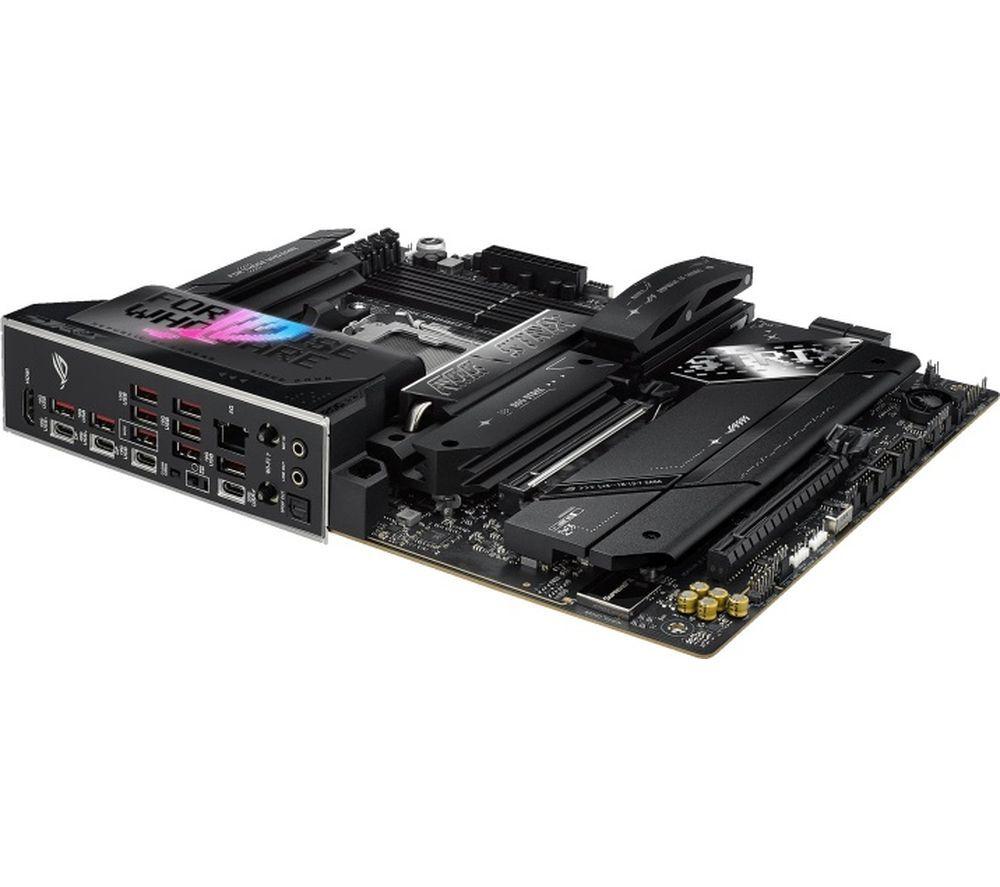

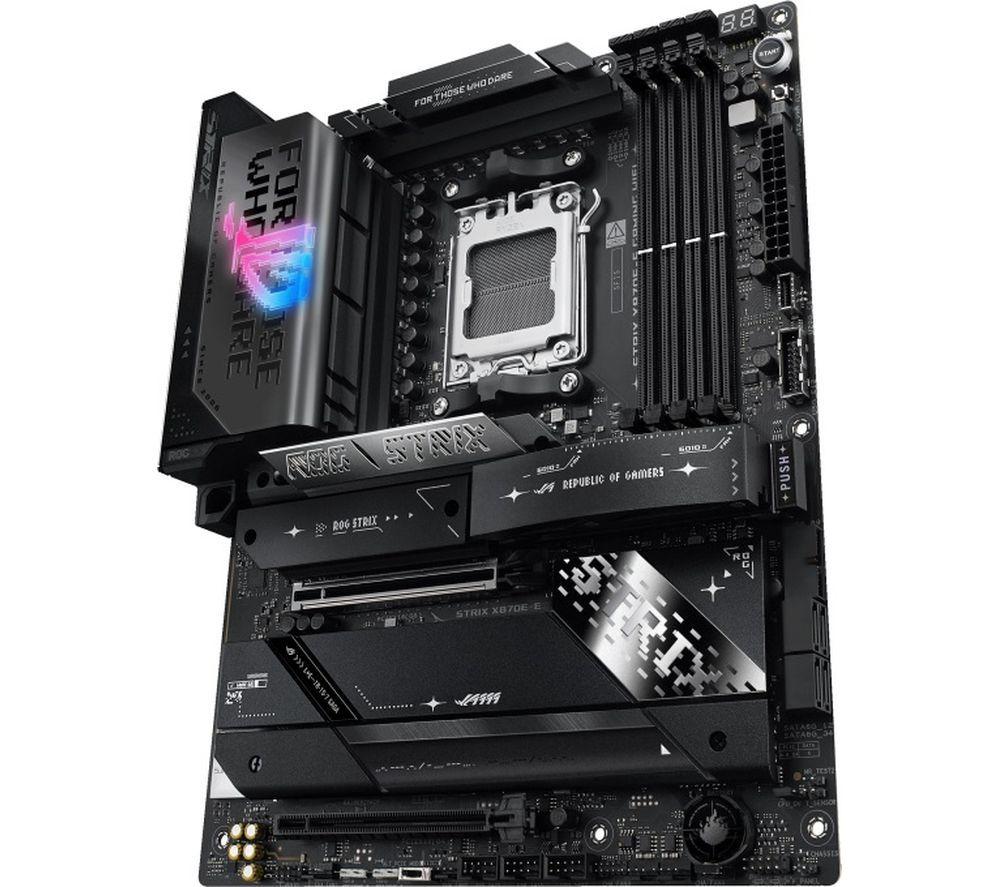

ASUS ROG STRIX X870E-E WiFi AMD AM5 Motherboard

ASUS ROG STRIX X870E-E WiFi AMD AM5 Motherboard

Item No. 10272878

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

5/5 1 reviews
INFY_BNPL12_GAMING_WK52_1 COM_WK32_PS_COMPONENTS_PERIPHERALS_DATA_FNDD
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Product code: 782528

This ATX board from ASUS is designed to handle powerful components. It's ready for 9000 series AMD Processors, but also 8000 and 7000 series chips. So, you can use it as the base for a wide variety of systems. You can plug in up to 192 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and 4.0 you can have high-speed storage that won't make you wait around.

Good to know

- With 5Gb Ethernet and WiFi 7 you'll have super-fast and rock-solid internet connection for online games
- To make sure your hardware stays cool under load, there are massive onboard heatsinks and 7 fan headers
- AI overclocking pushes your CPU to the limit when needed - and you don't have to do anything
- It's got an AIO Pump header, so you can slap some proper liquid cooling on your CPU
- Sync the RGB lighting on your motherboard with your components and peripherals using ASUS Aura Sync

Technical specifications for ASUS ROG STRIX X870E-E WiFi AMD AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X870E
Socket
AMD AM5
Processor models supported
AMD RYZEN 7000 / 8000 / 9000 processors
Memory slots
DIMM (Max RAM: 192 GB) x 4
Memory standard
DDR5
Operating systems supported
Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
- Realtek 5Gb Ethernet x 1
- ASUS LANGuard
Audio
Audio jacks x 2
USB
- USB Type-C x 5
- USB 3.0 x 8
- USB 2.0 x 11
Other external connections
- HDMI™ port x 1
- Wi-Fi Module x 1
- Realtek 5Gb Ethernet x 1
- Gold-plated audio jacks x 2
- Optical S/PDIF out port x 1
- BIOS FlashBack button x 1
- Clear CMOS button x 1

INTERNAL CONNECTIVITY

BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16 slots) x 1
- PCIe 4.0 (x16 slots) x 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 5
Cooling
- 4-pin CPU fan header x 1
- 4-pin CPU OPT fan header x 1
- 4-pin AIO Pump header x 1
- 4-pin chassis fan headers x 5
Case
- Power LED x 1
- Clear CMOS header x 1
Buttons
- Power
- Reset
- BIOS FlashBack
Power
- 24-pin EATX x 1
- 8-pin ATX 12 V x 1
Sensors
Thermal sensor header
Other internal connections
- Addressable Gen 2 headers x 3
- CPU Over Voltage jumper x 1
- FlexKey button x 1
- Front Panel Audio header (AAFP) x 1
- Start button x 1
- 10-1 pin System Panel header x 1
- Thermal Sensor header x 1

GENERAL

Box contents
- Asus ROG STRIX X870E-E WiFi AMD AM5 Motherboard
- Cables
- SATA 6Gb/s cables x 2
- Additional Cooling Kit
- Thermal pad for M.2 22110 x 1
- ASUS Wi-Fi moving antennas x 1
- Cable ties pack x 1
- M.2 Q-Latch package x 1
- M.2 Q-Slides x 2
- ROG key chain x 1
- ROG Strix stickers x 1
- M.2 Rubbers x 5
- Documentation
- Quick start guide
Software included
- WinRAR (40 Days Free Trial)
- UEFI BIOS
- AI Overclocking Guide
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI
- BIOS EZ Mode
- ASUS
- MyHotkey
- Dynamic OC Switcher
- FlexKey
Weight
1.79 kg
Manufacturer’s guarantee
3 years
Dimensions
25 x 244 x 305 mm (H x W x D)
Colour
Black
