ASUS TUF GAMING B650M-PLUS WIFI AM5 Motherboard

ASUS TUF GAMING B650M-PLUS WIFI AM5 Motherboard

Item No. 10251836

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

5/5 1 reviews
INFY_BNPL12_GAMING_WK52 COM_WK32_PS_COMPONENTS_PERIPHERALS_DATA_FNDD
Form factor: microATX
Socket: AMD AM5
Chipset: AMD B650
Memory: DIMM x 4 / Max RAM: 128 GB DDR5
3 year guarantee
Form factor: microATX
Socket: AMD AM5
Chipset: AMD B650
Memory: DIMM x 4 / Max RAM: 128 GB DDR5
3 year guarantee
Product code: 377030

Building a compact gaming PC? This microATX board from ASUS TUF GAMING is designed to handle powerful components. It's ready for a 7000 Series AMD processor, so you can put all those cores to work. Add up to 128 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and 4.0 M.2 slots, you can pop in high-speed SSDs that won't make you wait around.

Good to know

- With 2.5 Gb Ethernet and WiFi 6 you'll have super-fast and rock-solid internet connection
- ASUS Armoury Crate gives you control over cooling and performance, two-way noise cancellation and more
- Connect RGB lights and sync them with your components and peripherals using ASUS Aura Sync
- To make sure your hardware stays cool under load, there are onboard heatsinks and 5 fan headers

Technical specifications for ASUS TUF GAMING B650M-PLUS WIFI AM5 Motherboard

OVERVIEW

Form factor
microATX
Chipset
AMD B650
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000 Series desktop processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR5
Multi-GPU support
No
Operating systems supported
Windows 10 or later

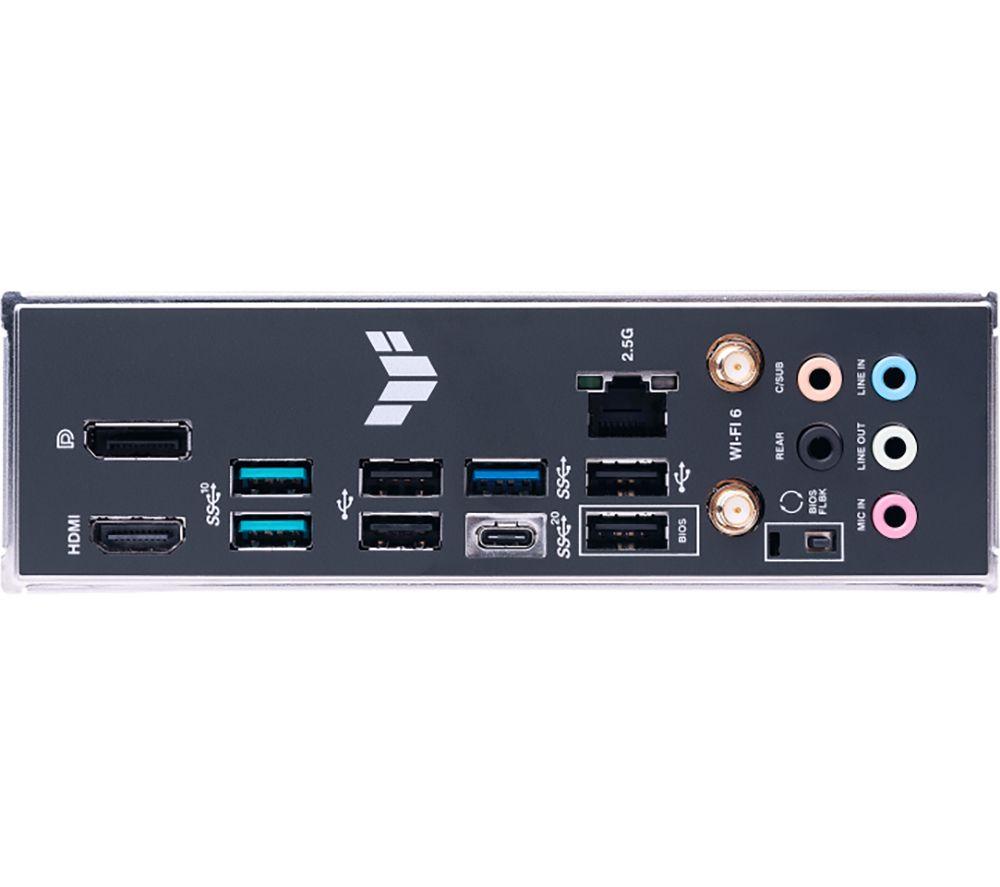

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
2.5 Gigabit Ethernet (10/100/1000/2500) port x 1
Audio
3.5 mm jack x 5
USB
- USB Type-C x 1
- USB 3.2 x 3
- USB 2.0 x 4
Other external connections
WiFi module

INTERNAL CONNECTIVITY

BIOS
- UEFI AMI BIOS
- 256 Mb Flash ROM
Expansion slots
- PCIe 4.0 (x16) x 2
- PCIe 4.0 (x1) x 1
Storage slots
- SATA x 4 (6 GB/s)
- M.2 PCIe 5.0 x 1 (64 GB/s)
- M.2 PCIe 4.0 x 1 (32 GB/s)
Cooling
- CPU fan 4-pin x 1
- CPU OPT fan 4-pin x 1
- Case fan 4-pin x 3
- AIO Pump 4-pin x 1
Case
Power LED x 1
Buttons
- Power
- Reset
- BIOS FlashBack
Power
- 24-pin EATX x 1
- 8-pin ATX x 1
- 4-pin ATX x 1
Other internal connections
- Addressable Gen 2 headers x 3
- Aura RGB header x 1
- Clear CMOS header x 1
- COM Port header x 1
- Front Panel Audio header (AAFP) x 1
- 20-3 pin System Panel header with Chassis intrude function x 1
- Thunderbolt (USB4) header x 1
USB
- USB Type-C x 1
- USB 3.2 x 2
- USB 2.0 x 4

GENERAL

Box contents
ASUS TUF GAMING B650M-PLUS WIFI AM5 Motherboard
Software included
- Armoury Crate
- AI Suite 3
- ASUS CPU-Z
- MyAsus
- Norton Anti-virus software (Free Trial version)
- WinRAR
- ASUS EZ DIY
Weight
1.7 kg
Manufacturer’s guarantee
3 years
Dimensions
244.4 x 244.4 x 28mm (H x W x D)
Colour
Black
