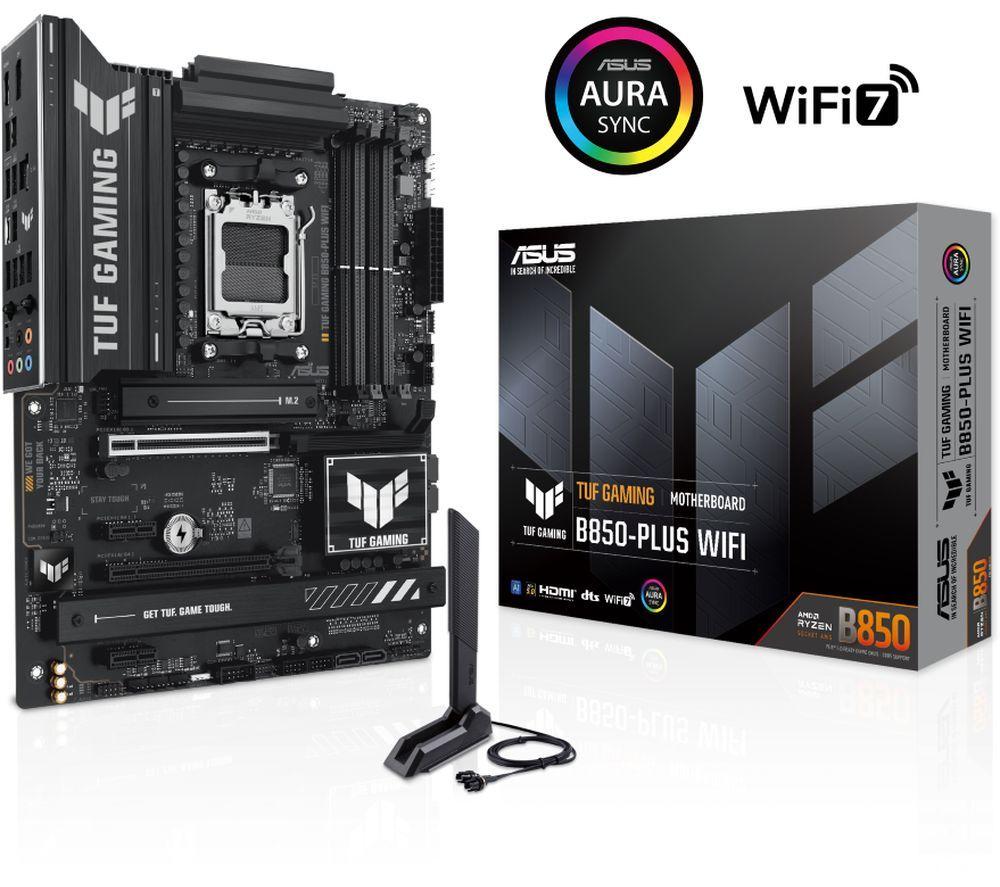

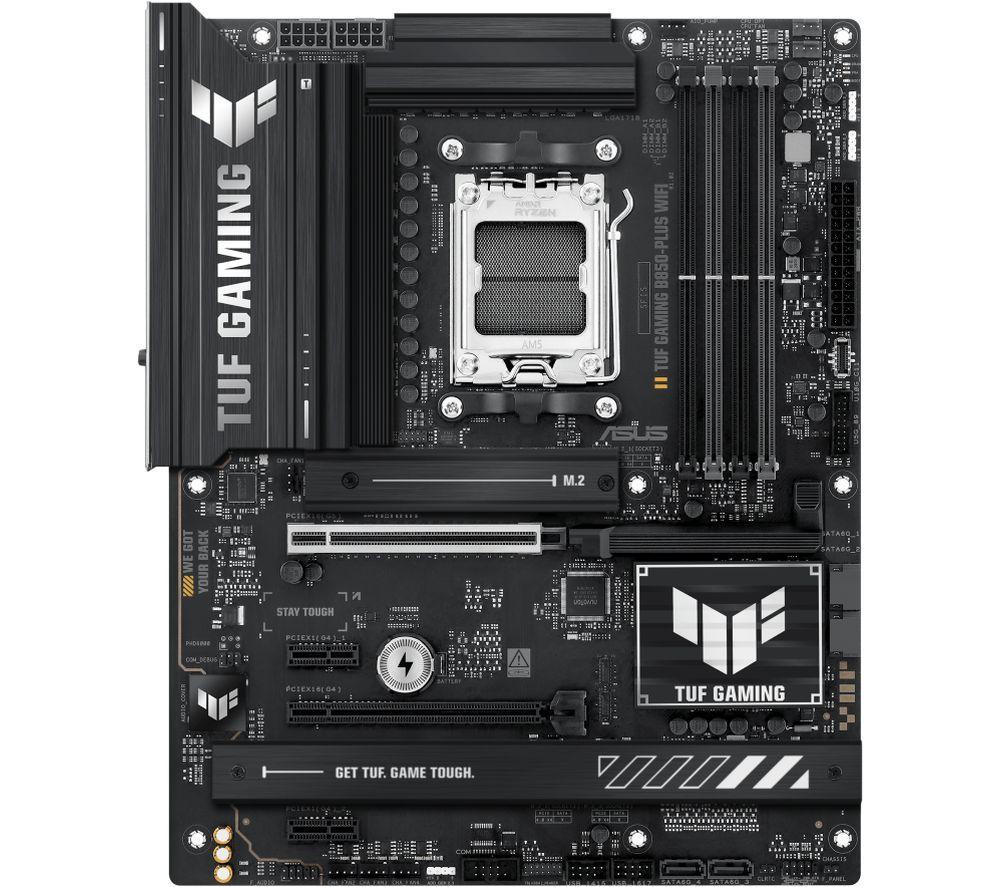

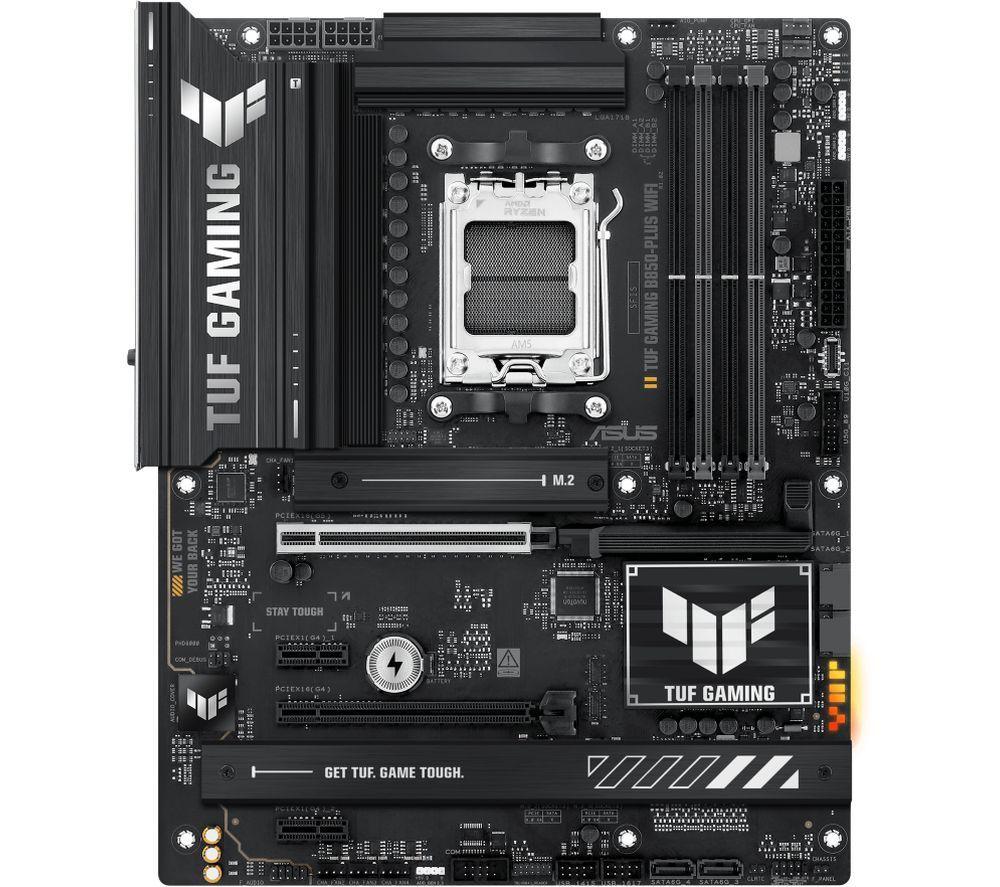

ASUS TUF GAMING B850-PLUS WiFi AM5 Motherboard

ASUS TUF GAMING B850-PLUS WiFi AM5 Motherboard

Item No. 10277539

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFYCNTRL_BNPL12_GENERIC_WK07 INFYCNTRL_FNDD_1
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Product code: 751345

Building a compact gaming PC? This ATX board from ASUS TUF GAMING is designed to handle powerful components. It's ready for AMD 9000 series Processors, so it's designed for the future of AI computing. You can plug in up to 192 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and PCIe 4.0 you can have high-speed storage that won't make you wait around. Got questions? Just ask the ASUS AI Advisor – this AI tech uses natural language to help guide you through PC hardware.

Good to know

- With 2.5 Gb Ethernet and WiFi you'll have super-fast and rock-solid internet connection for online games
- ASUS Armoury Crate gives you control over cooling and performance, two-way noise cancellation and more
- To make sure your hardware stays cool under load, there are massive onboard heatsinks
- It's got an AIO Pump header, so you can slap some proper liquid cooling on your CPU
- Connect RGB LEDs and sync them with your components and peripherals using ASUS Aura Sync

Technical specifications for ASUS TUF GAMING B850-PLUS WiFi AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD B850
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000 / 8000 / 7000 Series desktop processors
Memory slots
4 x DIMM (Max RAM: 192 GB)
Memory standard
DDR5
Cooling features
- Enlarged VRM heatsinks
- AIO pump header
- Fan Xpert 4
- Smart fan protection
- M.2 heatsinks
- PCH heatsink
- 4-Pin PWM / DC fan
- ASUS AIO coolers
Operating systems supported
Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 2.5Gb Ethernet x 1
Audio
3.5 mm jack x 5
USB
- USB Type-C x 2
- USB 3.0 x 10
- USB 2.0 x 4

INTERNAL CONNECTIVITY

BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16 slot) (supports x16 mode) x 1
- PCIe 4.0 (x16 slot) (supports x8 / x4 mode) x 1
- PCIe 4.0 (x1 slot) x 1
- PCIe 4.0 (x16 slot) (supports x4 mode) x 1
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 3
Cooling
4-pin CPU Fan header x 1
Case
BIOS FlashBack LED
Buttons
BIOS FlashBack button
Power
- 24-pin Main Power connector x 1
- 8-pin +12V CPU Power connectors x 2
Sensors
Thermal sensors x 3
Other internal connections
- Addressable Gen 2 headers x 3
- Clear CMOS header x 1
- Chassis Intrusion header x 1
- COM Port header x 1
- Front Panel Audio header (F_AUDIO) x 1
- 10-1 pin Front System Panel header x 1
- Thunderbolt (USB4) header x 1

GENERAL

Box contents
- ASUS TUF GAMING B850M-PLUS AM5 Motherboard
- SATA 6 Gb/s cables x 2
- ASUS WiFi Q-Antenna
- TUF GAMING sticker
- M.2 rubber packages x 2
- Documentation
- Quick start guide
Software included
- ASUS Exclusive Software
- UEFI BIOS
Weight
1.32 kg
Manufacturer’s guarantee
3 years
Dimensions
305 x 244 x 500 mm (H x W x D)
Colour
Black
