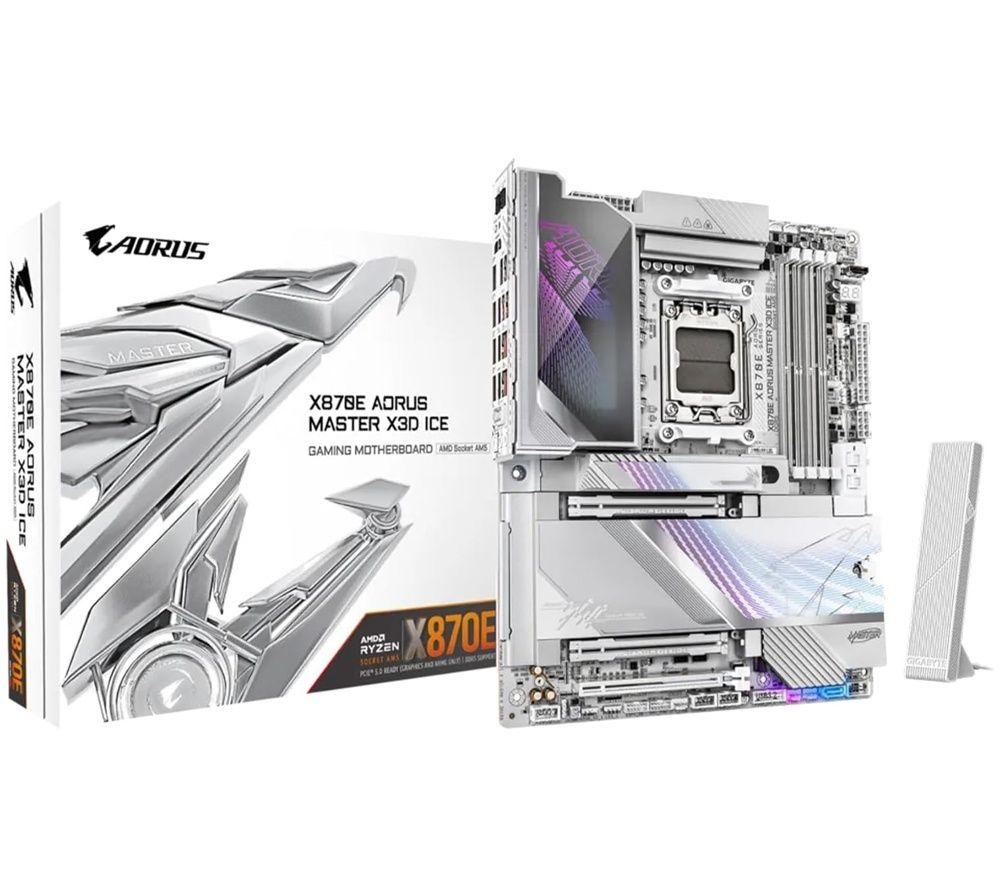

GIGABYTE AORUS MASTER X3D ICE X870E AM5 Motherboard

GIGABYTE AORUS MASTER X3D ICE X870E AM5 Motherboard

Item No. 10296838

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

4/5 1 reviews
INFYCNTRL_FNDD_GAMING_WK06 INFYCNTRL_BNPL12_GENERIC_1
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 549564

The Gigabyte AORUS MASTER X3D ICE X870E AM5 Motherboard is built for high-performance gaming PCs. It supports AMD Ryzen 7000, 8000 and 9000 Series processors, so you've got plenty of power and room to upgrade over time. Its VRM Thermal Armor and passive heatsinks help prevent heat build-up for steady performance. With PCIe 5.0 and PCIe 4.0 support, you can install SSDs and next-gen components, helping reduce load times.

  • Supports up to 256GB DDR5 RAM - smooth gaming and heavy multitasking
  • X3D Turbo Mode - automatically boosts frame rates in supported games
  • Five M.2 slots - install multiple NVMe SSDs for storage expansion
  • Includes USB-C, USB 3.0 and USB 2.0 ports
  • WiFi 7 and dual 10 GbE with 5 GbE LAN
  • Bluetooth support

Technical specifications for GIGABYTE AORUS MASTER X3D ICE X870E AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X870E
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000 / 8000 & 9000 Series processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
- Advanced passive heatsinks
- VRM Thermal Armor
- Reinforced PCB thermal plate
- M.2 Thermal Guard
Operating systems supported
Windows 11

EXTERNAL CONNECTIVITY

Video output
HDMI x 1
LAN
- 5GbE LAN x 1
- 10GbE x 2
Audio
- Optical S/PDIF Out
- 3.5 mm jack x 2
- 7.1 HD Audio (Realtek ALC1220-VB)
USB
- USB Type-C x 2
- USB 3.0 x 7
- USB 2.0 x 2
Other external connections
- Dual Wi‑Fi 7 antenna connectors
- Bluetooth 5.4

INTERNAL CONNECTIVITY

BIOS
AMI UEFI BIOS
Expansion slots
- PCIe 5.0 (x16) x 3 (configurable x16/x8/x4)
- PCIe 4.0 (x4) x 1
Storage slots
- SATA x 2 (6 GB/s)
- M.2 x 5
Cooling
- CPU fan 4‑pin x 2
- Chassis fan 4‑pin x 6
- Water pump headers x 2
Case
- Front panel header x 1
- Power LED x 1
- HDD LED x 1
- TPM header x 1
Buttons
- Reset
- Power
- Clear CMOS jumper
- Q-Flash Plus button
Power
- 24-pin ATX x 1
- 8-pin CPU EPS x 3
Sensors
- Temperature sensor
- Fan speed sensor
Other internal connections
- RGB headers x 5
- Chassis intrusion
- USB headers

GENERAL

Box contents
- Gigabyte AORUS MASTER X3D ICE X870E AM5 Motherboard
- WiFi Antenna
- SATA cables
- M.2 screws
- Quick start guide
- Documentation
Weight
4.4 kg
Manufacturer’s guarantee
3 years
Dimensions
305 x 244 x 35 mm (H x W x D)
Colour
White
