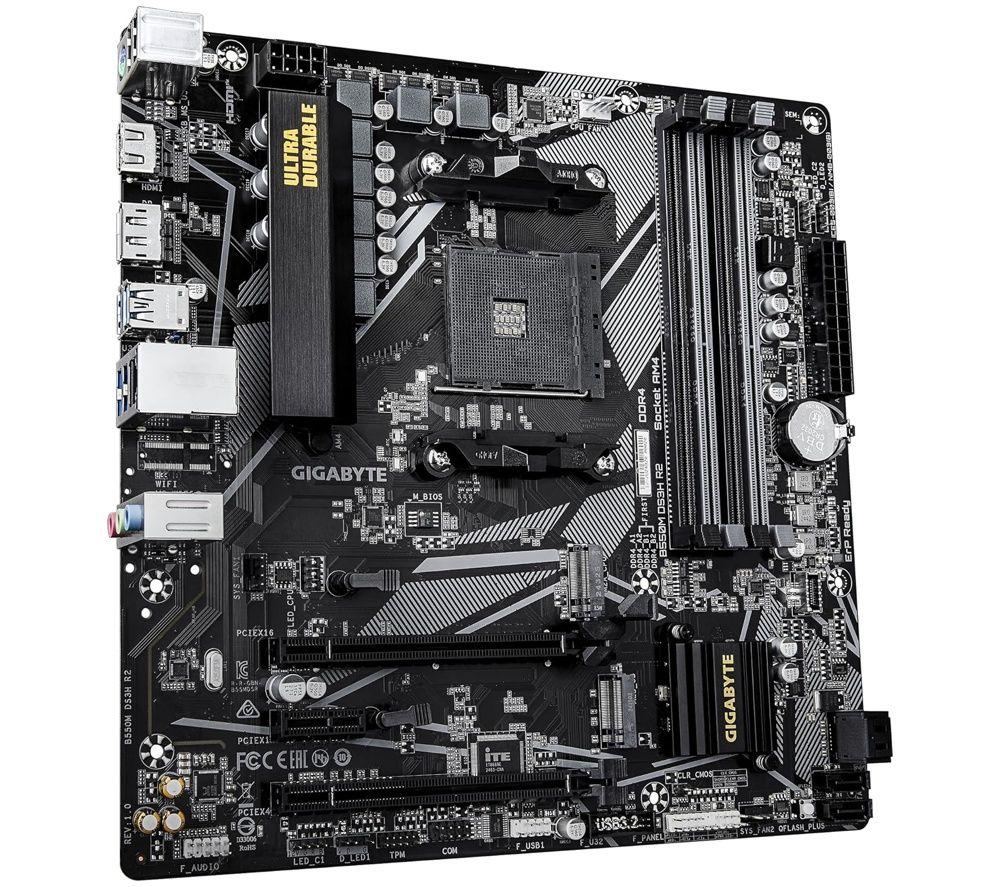

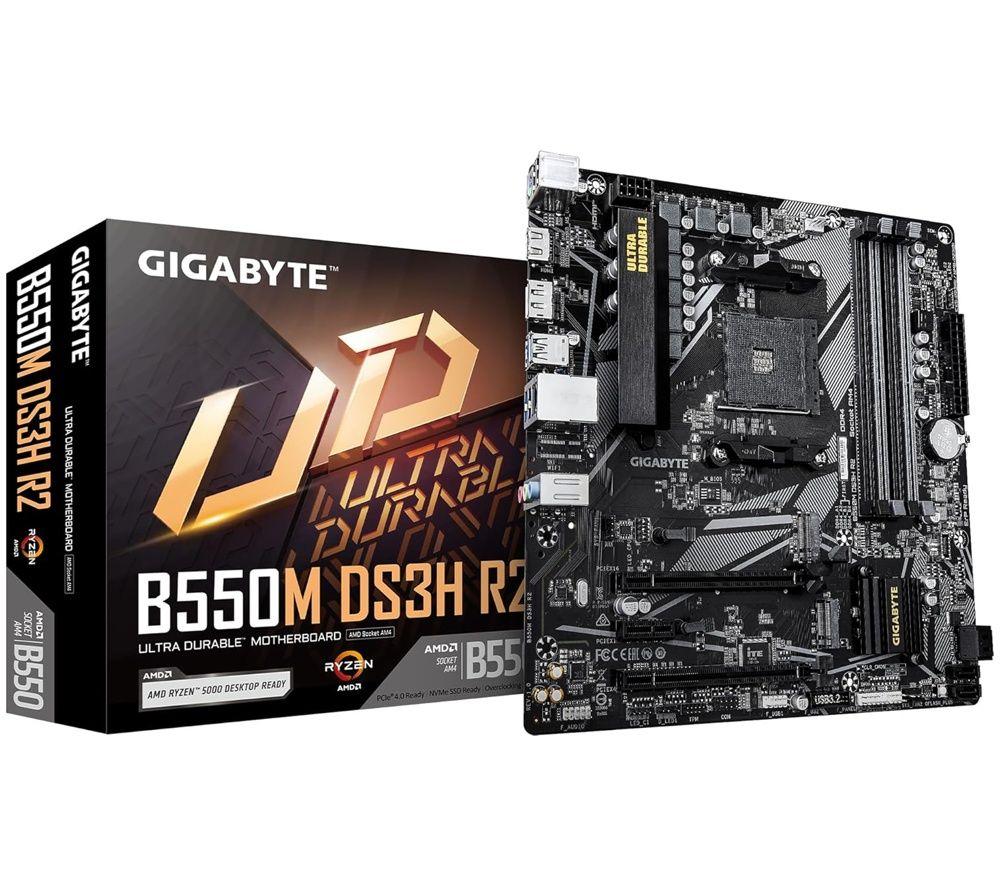

GIGABYTE DS3H R2 B550M AM4 Motherboard

GIGABYTE DS3H R2 B550M AM4 Motherboard

Item No. 10296851

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

Form factor: microATX
Socket: AMD AM4
Chipset: AMD B550
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Form factor: microATX
Socket: AMD AM4
Chipset: AMD B550
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Product code: 715578

The Gigabyte DS3H R2 B550M AM4 motherboard gives you a reliable base for a high-performance build. The AMD B550 chipset supports AMD Ryzen 5000, 4000 and 3000 series processors, giving you a plenty of options for your build. The PCIe 4.0 support increases bandwidth for GPUs and SSDs, helping large files load faster. And its VRM heatsinks help prevent heat build-up for steady performance.

  • Dual M.2 slots with RAID support - let you expand storage and boost data performance
  • EZ-Latch design - lets you install components without needing tools
  • Smart Fan 6 - gives you precision control over your cooling
  • DDR4 RAM - runs large apps smoothly without slowdowns
  • Includes USB-C, USB 3.2 and USB 2.0 ports
  • Realtek Gigabit LAN port

Technical specifications for GIGABYTE DS3H R2 B550M AM4 Motherboard

OVERVIEW

Form factor
Micro ATX
Chipset
AMD B550M
Socket
AMD AM4
Processor models supported
AMD Ryzen 3000, 4000 & 5000 Series processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR4
Cooling features
- Heatsink
- VRM Thermal Armor Advanced
Operating systems supported
Windows 11 (64-bit)

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek GbE LAN
Audio
3.5 mm jack x 3
USB
- USB 3.2 Gen 1 x 4
- USB 2.0/1.1 ports x 2
Other external connections
PS2 keyboard, mouse, Wi-Fi antenna connectors x2

INTERNAL CONNECTIVITY

BIOS
UEFI AMI BIOS (128 Mbit flash)
Expansion slots
- PCIe 4.0 (x16) x 1
- PCIe 3.0 (x16) x 1
- PCIe 3.0 (x1) x 1
Storage slots
- SATA x 4
- M.2 x 2
Cooling
- CPU fan header x 1
- System fan headers x 2
Case
- Power switch
- Reset switch
Buttons
- Q-Flash Plus x 1
- Clear CMOS jumper x 1
Power
- 24-pin ATX x 1
- 8-pin ATX x 1
Sensors
- Voltage
- Temperature
- Fan speed
Other internal connections
- Front panel header x 1
- Front panel audio header x 1
- Addressable RGB Gen2 LED Strip Headers x 2
- RGB LED Strip Header x 2
- Trusted Platform Module header x 1
- CPU cooler LED strip/RGB LED strip header x 1
- Serial port header x 1
USB
- USB Type-C x 1
- USB 3.2 Gen 1 x 4
- USB 2.0 x 4

GENERAL

Box contents
- Gigabyte DS3H R2 B550M AM4 Motherboard
- Manual
- Antenna
- IO Shield
- SATA cables x 2
Weight
870 g
Manufacturer’s guarantee
3 years
Dimensions
70 x 244 x 244 mm (H x W x D)
Colour
Black
