MSI A520M-A Pro AM4 Motherboard

MSI A520M-A Pro AM4 Motherboard

Item No. 10274158

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

4/5 12 reviews
INFYWG_FNDD_WK22
Form factor: mini ATX
Socket: AMD AM4
Chipset: AMD A520
Memory: DIMM x 2 / Max RAM: 64 GB
3 year guarantee
Form factor: mini ATX
Socket: AMD AM4
Chipset: AMD A520
Memory: DIMM x 2 / Max RAM: 64 GB
3 year guarantee
Product code: 581323

- This micro ATX board is perfect for building a compact and powerful PC around a 5000 Series AMD processor
- It supports PCIe 3.0 for powerful GPUs and SSDs and lets you plug in up to 64 GB of DDR4 RAM

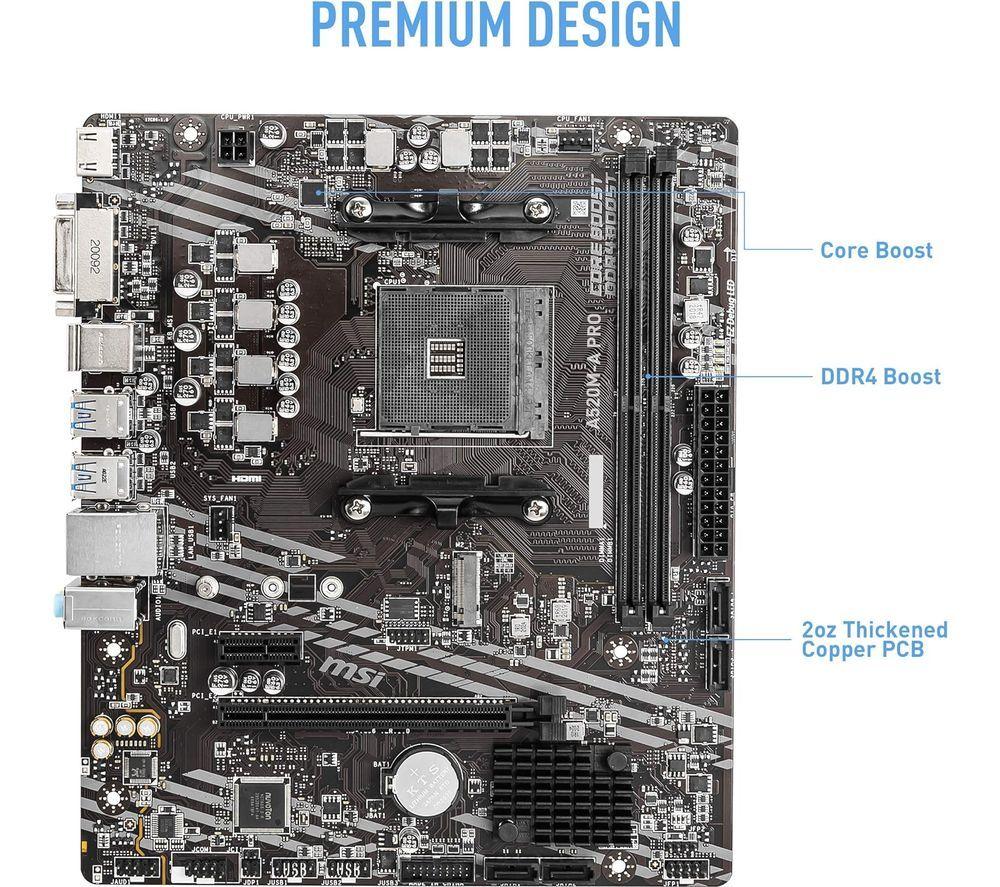

- It's got a thickened copper PCB for better heat dissipation and improved reliability
- Access all MSI exclusive tools in one user-friendly interface with Dragon Center
- Fully controllable BIOS and software let you manage speeds and temperatures for all your system and CPU fans

Technical specifications for MSI A520M-A Pro AM4 Motherboard

OVERVIEW

Form factor
micro ATX
Chipset
AMD A520
Socket
AMD AM4
Processor models supported
AMD AM4 Socket for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
Memory slots
2 x DIMM (Max RAM: 64 GB)
Memory standard
DDR4
Cooling features
- Improved PCB design
- Total Fan Control
Operating systems supported
Windows 10 (64-bit)

EXTERNAL CONNECTIVITY

Video output
HDMI 2.1 x 1
LAN
Realtek RTL8111H 1Gb Ethernet x 1
Audio
Audio jacks x 3

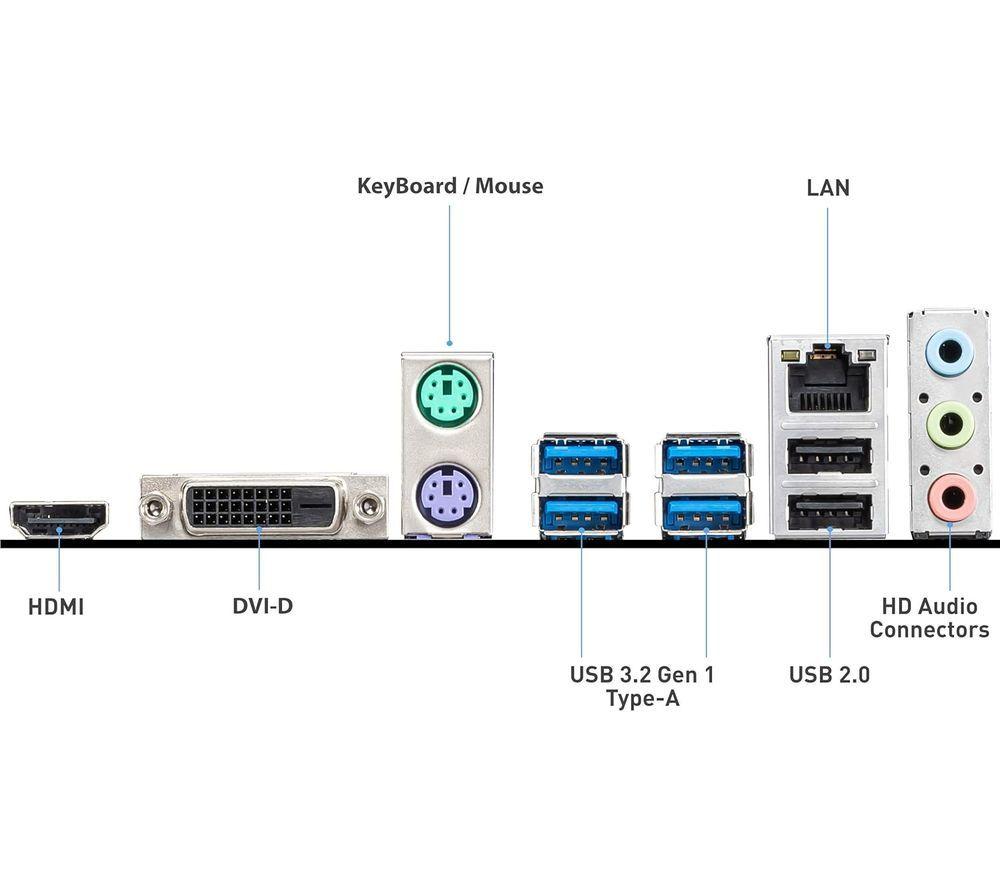

USB
Rear:
- USB 3.2 Type-A x 4
- USB 2.0 Type-A x 2

INTERNAL CONNECTIVITY

BIOS
CLICK BIOS 5
Expansion slots
- PCIe 3.0 x16 (x16 mode) x 1
- PCIe 3.0 (x1) x 2

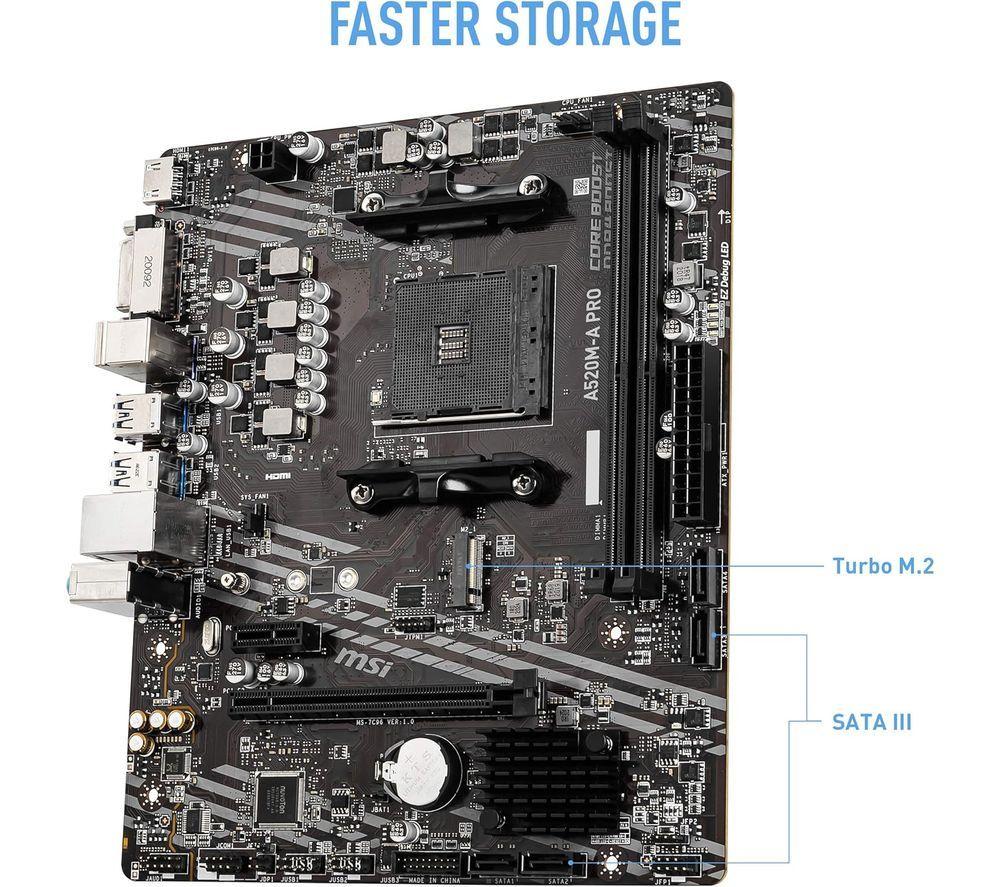

Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 1
Cooling
- 4-pin CPU fan x 1
- 4-pin system fan x 1
Case
Power Led x 1
Power
- 24-pin ATX x 1
- 4-pin ATX 12 V x 1
Other internal connections
- SATA 6Gb/s connectors x 4
- M.2 slot (M-Key) x 1
- Front panel audio connector x 1
- System panel connectors x 2
- Chassis Intrusion connector x 1
- TPM module connector x 1
- Clear CMOS jumper x 1
USB
- USB 3.2 x 3
- USB 2.0 x 6

GENERAL

Box contents
- Asus A520M Pro AM4 Motherboard
- MSI Case Bage
- Quick Installation
- SATA Cables x 2
- IO Shield
- Support Disk
Weight
1.66 kg
Manufacturer’s guarantee
3 years
Dimensions
55 x 200 x 236 mm (H x W x D)
Colour
Black
