MSI MPG Z890I EDGE TI WIFI LGA1851 Motherboard

MSI MPG Z890I EDGE TI WIFI LGA1851 Motherboard

Item No. 10273789

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

5/5 2 reviews
INFY_BNPL12_GAMING_WK52_1 COM_WK32_PS_COMPONENTS_PERIPHERALS_DATA_FNDD
Form factor: mini ATX
Socket: Intel® 1851
Chipset: Intel® Z890
Memory: DIMM x 2 / Max RAM: 128 GB DDR5
3 year guarantee
Form factor: mini ATX
Socket: Intel® 1851
Chipset: Intel® Z890
Memory: DIMM x 2 / Max RAM: 128 GB DDR5
3 year guarantee
Product code: 779144

Building a powerful, compact desktop? Give your new build a solid foundation with this microITX board. This MSI motherboard lets you build a PC based on an Intel® Core™ Ultra Processors (Series 2) and DDR5 RAM. Fancy a gaming rig or a content creator‘s workstation? Using the PCIe 5.0 expansion slot you can hook up most recent graphics cards for a truly high-end setup. Best thing about a PC is upgradeability. That's why this mother board is seriously tough – the MSI Steel Armor reinforcement means you're up for many years of heavy use.

Good to know

- There are 2 DIMM slots letting you to plug in up to 128 GB DDR4 RAM - plenty for  multitasking.
- There's an Intel® WiFi 7 chip built-in, so you can expect fast and reliable wireless connectivity
- The 5G Ethernet port is great for lightning fast wired internet connection
- With the extended heatsink and M.2 Thermal Frozr Guards it's ready to keep cool even a high-performance setup

Technical specifications for MSI MPG Z890I EDGE TI WIFI LGA1851 Motherboard

OVERVIEW

Form factor
Mini ITX
Chipset
Intel® Z890
Socket
Intel® LGA1851
Processor models supported
Intel® Core™ Ultra Processors (Series 2)
Memory slots
2 x DIMM (Max RAM: 128 GB)
Memory standard
DDR5
Cooling features
- Frozr AI cooling
- Frozr Sync
- Frozr Guard
- Frozr Control
- M.2 Shield Frozr II
Operating systems supported
Windows 11 or later

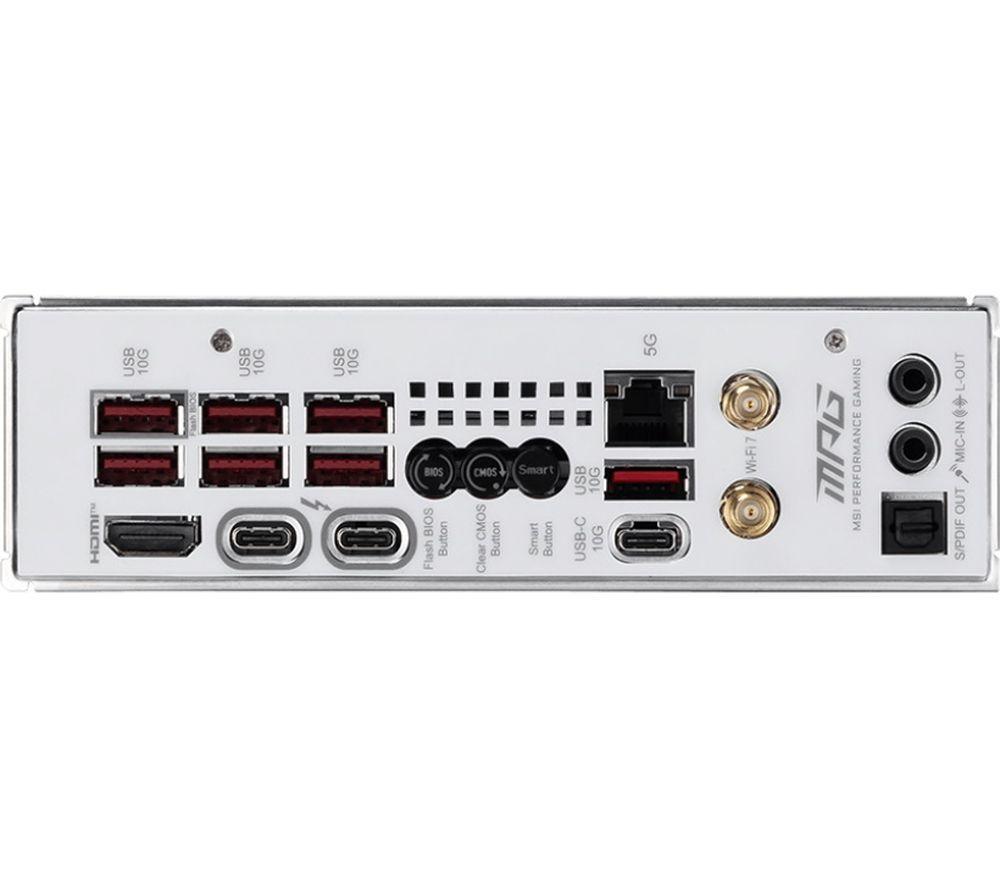

EXTERNAL CONNECTIVITY

Video output
- HDMI 2.1 x 1
- Type-C DisplayPort x 2
- Thundebolt 4 x 1
LAN
- Intel® Wi-Fi 7
- Bluetooth 5.4
Audio
- 7.1-Channel USB High-Performance Audio
- Supports S/PDIF output
USB
- USB Type-C x 1
- USB Type-A x 7

INTERNAL CONNECTIVITY

BIOS
Flash BIOS
Expansion slots
- PCIe 5.0 (x16 slot) x 1
- PCIe 4.0 (x1 slot) x 1
- PCIe 4.0 (x4 slot) x 1
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 1 (128 GB/s)
- M.2 x 3 (64 GB/s)
Cooling
- CPU fan 4-pin x 1
- Combo fan x 1
- System fan 4-pin x 6
- Extended Heatsink
- MOSFET Baseplate
- 7W/mK Thermal Pad
- Heat-pipe
Case
Power LED x 1
Buttons
- Power button
- Reset Flash BIOS Button
- Clear CMOS button
Power
- 24-pin ATX x 1
- 8-pin ATX x 1
Sensors
Thermal sensor
Other internal connections
- CPU Fan x 1
- Front Panel (JFP) x 2
- Chassis Intrusion (JCI) x 1
- Addressable V2 RGB LED connector (JARGB_V2) x 3
- TPM pin header (Support TPM 2.0) x 1
USB
- USB Type-C x 1
- USB 3.2 x 2
- USB 2.0 x 4

GENERAL

Box contents
- MSI MPG Z890I EDGE TI WIFI LGA1851 Motherboard
- EZ Wi-Fi Antenna
- 5-in-1 Xpander USB 5Gbps Cable
- 5-in-1 Xpander
- USB Drive
- 2 x SATA Cables
- 3 x M.2 Screws
- 1 to 3 EZ Conn-Cable (V2)
- EZ Front Panel Cable
- Quick Installation Guide
- Cable Sticker
Weight
1 kg
Manufacturer’s guarantee
3 years
Dimensions
82 x 170 x 170mm (H x W x D)
Colour
White
