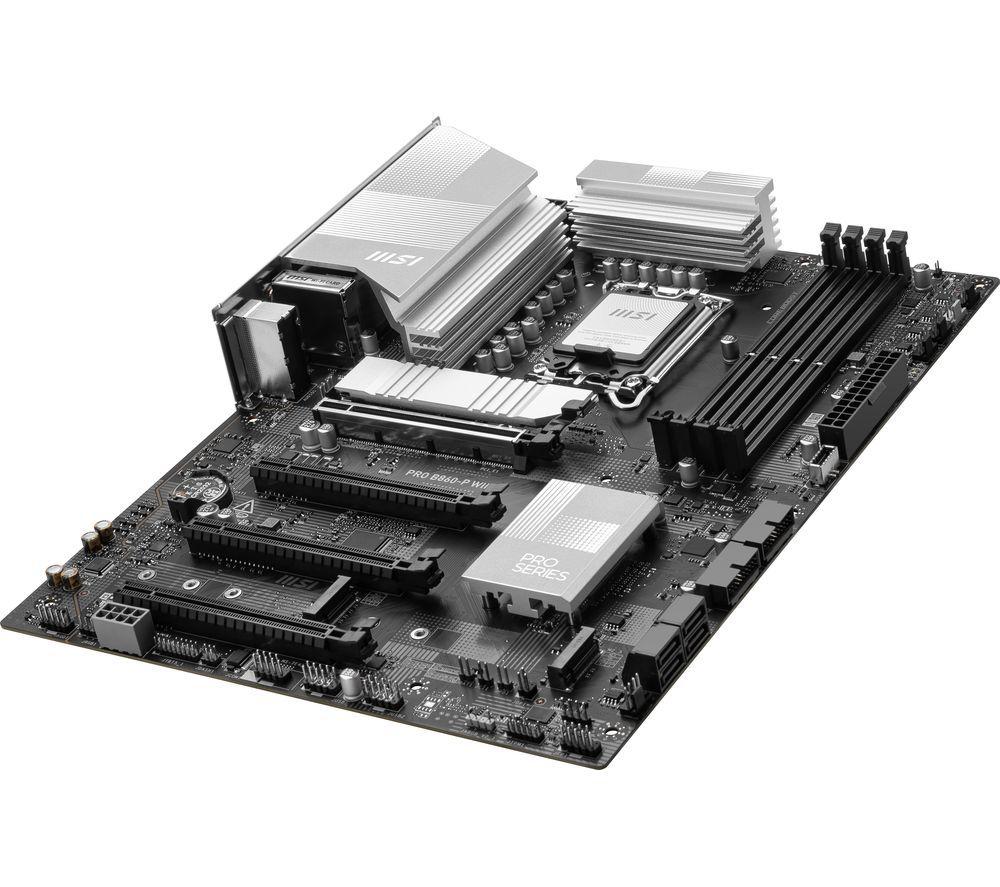

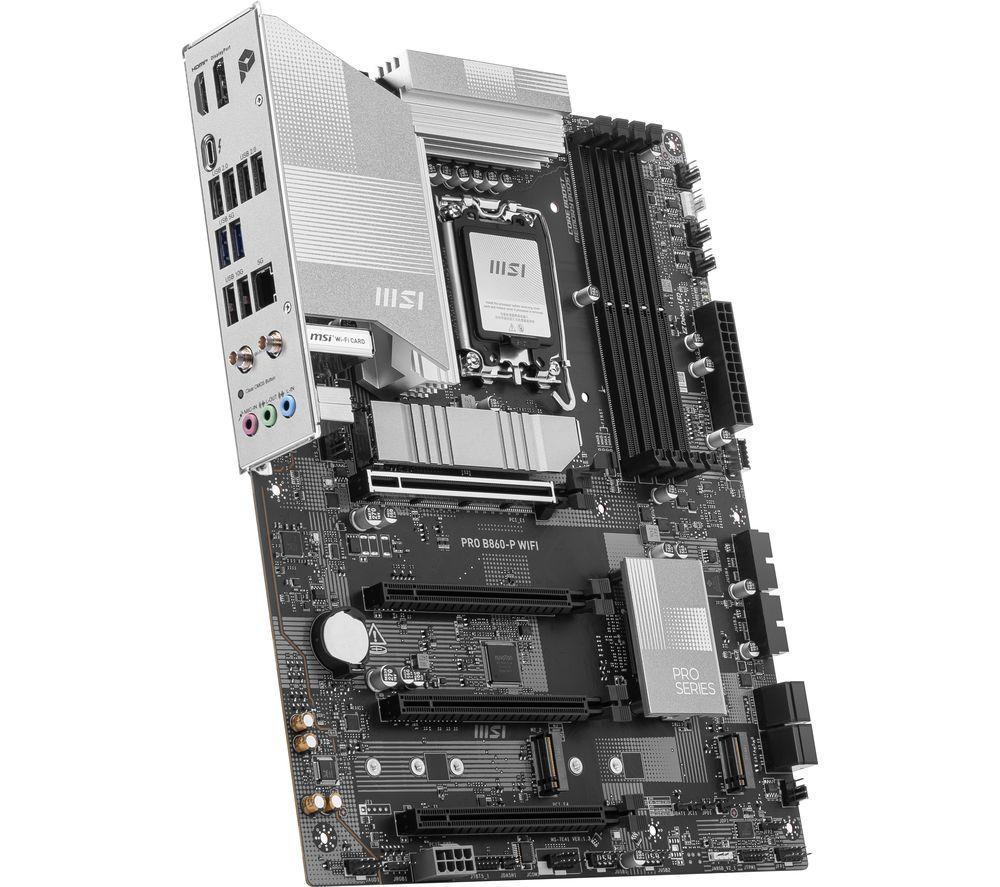

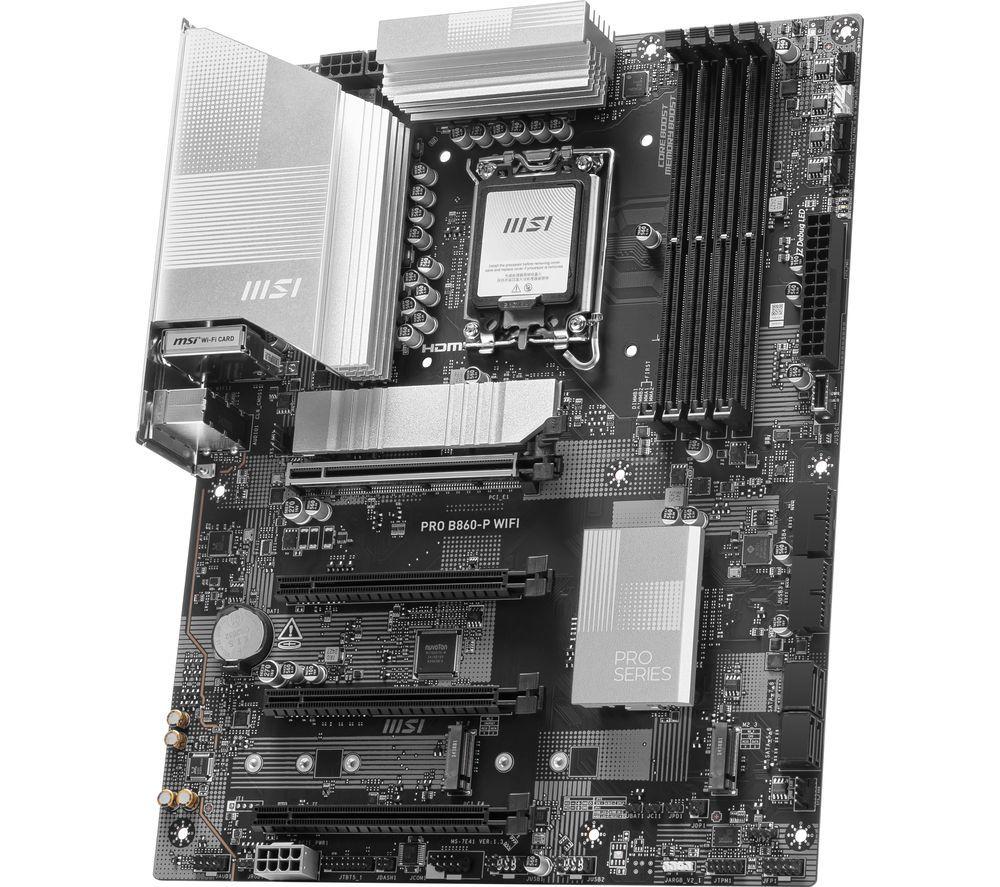

MSI PRO B860-P WIFI LGA1851 Motherboard

MSI PRO B860-P WIFI LGA1851 Motherboard

Item No. 10277358

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFY_BNPL12_GAMING_WK52_1 COM_WK32_PS_COMPONENTS_PERIPHERALS_DATA_FNDD
Form factor: ATX
Socket: Intel® 1851
Chipset: Intel® B860
Memory: UDIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: Intel® 1851
Chipset: Intel® B860
Memory: UDIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 572113

This MSI motherboard lets you build a powerful PC based on a Intel® Core™ Ultra Processors (Series 2) and DDR5 RAM. Fancy a gaming rig or a content creator‘s workstation? Using the PCIe 5.0 expansion slot you can hook up most recent graphics cards for a truly high-end setup. The best thing about a PC is upgradeability. That's why this mother board is seriously tough – the MSI Steel Armor reinforcement means you're up for many years of heavy use.

Good to know

- There's an Intel® WiFi 7 chip built-in, so you can expect fast and reliable wireless connectivity
- 5G Ethernet port is great for lightning fast wired internet connection
- With the extended heatsink, it's ready to keep even a high-performance setup cool
- It fits up to 4 gen 4.0 M.2 SSDs, each speeding up to 64 GB/s of data transfer
- Choose water or fan cooling - this motherboard has connectors for either

Technical specifications for MSI PRO B860-P WIFI LGA1851 Motherboard

OVERVIEW

Form factor
ATX
Chipset
Intel® B860
Socket
Intel® LGA1851
Processor models supported
Intel® Core™ Ultra Processors (Series 2)
Memory slots
4 x UDIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
- Frozr AI cooling
- Fan cooling
Operating systems supported
Windows 11 or later

EXTERNAL CONNECTIVITY

Video output
- HDMI 2.1 x 1
- DisplayPort 1.4 x 1
LAN
- Intel® Wi-Fi 7
- Bluetooth 5.4
Audio
- Realtek® ALC897 Codec
- 7.1-Channel High-Definition Audio
USB
- USB Type-A (10Gbps) x 2
- USB Type-A (5Gbps) x 6
- USB Type-C (10 Gbps) x 1
- USB 2.0 x 8

INTERNAL CONNECTIVITY

BIOS
Flash BIOS
Expansion slots
- PCIe 5.0 (x16 slot) x 1
- PCIe 4.0 (x16 slot) x 1
- PCIe 4.0 (x1 slot) x 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 3 (64 GB/s)
Cooling
- CPU fan x 1
- Combo fan x 1
- System fan x 4
Buttons
- Power button
- Clear CMOS Button
Power
- Power connector (ATX_PWR) x 1
- Power connector (CPU_PWR) x 2
- Power connector (PCIE_PWR 8pin) x 1
Other internal connections
- Thunderbolt5 card connector x 1
- CPU Fan x 1
- Combo Fan x 1
- System Fan x 4
- Front Panel (JFP) x 2
- Chassis Intrusion (JCI) x 1
- Front Audio (JAUD) x 1
- Com Port (JCOM) x 1
- Tuning Controller connector (JDASH) x 1
- Addressable V2 RGB LED connector (JARGB_V2) x 2
- RGB LED connector (JRGB) x 1
- TPM pin header (Support TPM 2.0) x 1

GENERAL

Box contents
- MSI PRO B860-P WIFI LGA1851 Motherboard
- SATA Cable x 1
- EZ M.2 Clip x 3
- EZ M.2 Clip remover x 1
- EZ Wi-Fi Antenna
- Quick Installation Guide
Manufacturer’s guarantee
3 years
Dimensions
73 x 243 x 304 mm (H x W x D)
Colour
Black
