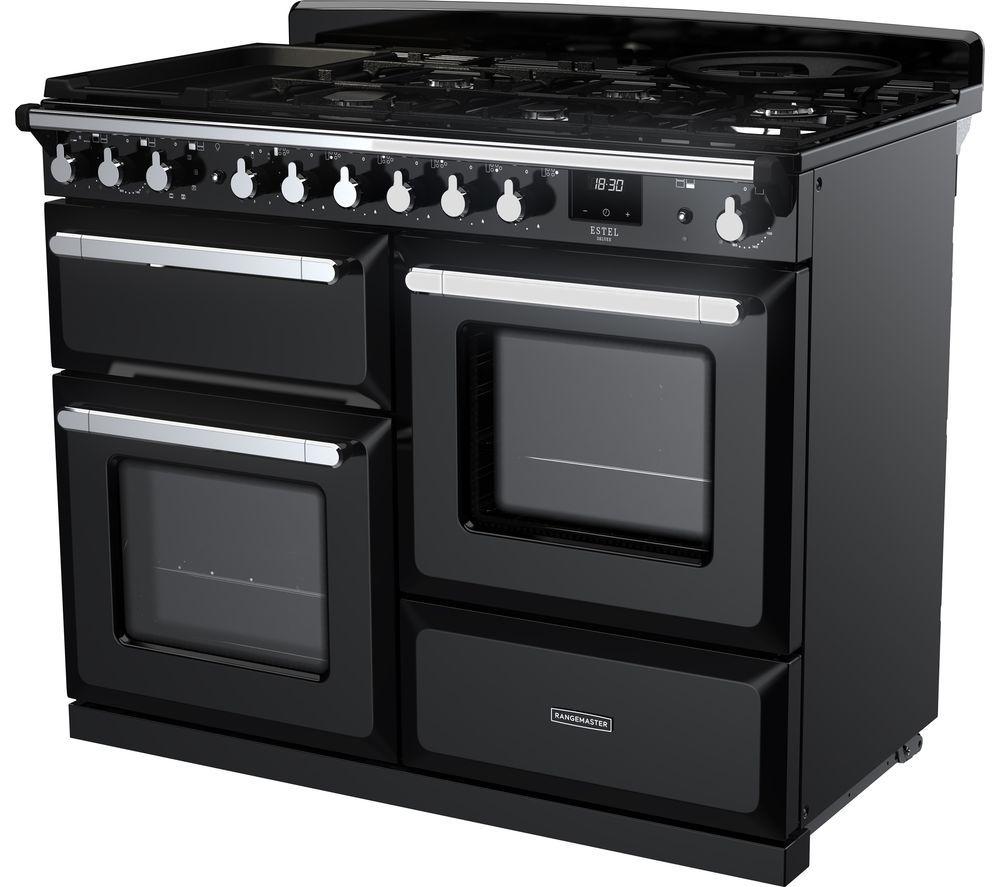

RANGEMASTER Estel Deluxe ESDLO110DFPGBL/CM1 110 cm Dual Fuel Range Cooker - Black & Chrome
89.5 x 109.2 x 61.7 cm (H x W x D)
Two electric ovens / Separate electric grill
5-burner gas hob / cast iron supports
Main oven cleaning: Assisted clean / Catalytic
Large capacity oven
2 year guarantee
Product code: 790845

Cooking for a hungry family is no easy task. This Rangemaster cooker has two 80 litre ovens - plenty of space to rustle up tasty home-cooked meals. A 5-burner gas hob means you can simmer, steam, sauté and stir fry all at the same time. There are also 2 ceramic zones with a multi-zone griddle and wok cradle when you need to go big. And the deluxe flexi-grill lets you make delicious bacon sarnies or cheese on toast in minutes. It has telescopic runners so you can pull the tray out to check on your meal easily.

Good to know

- Program the cooking duration and start and finish times with the Minute Minder timer
- The 25 litre proving drawer gives you precise control over temperature and humidity for perfect doughs
- Its self-adjusting magnetic plinth means it'll sit flush with your cabinets and countertops
- The glass doors can be fully removed when you need to give them a deep clean
- Its uniformed controls with haptic touch make it super easy to use


GAS INSTALLATION: This product requires installation by a qualified gas safe engineer, such as one of our Tech Experts (available in the UK only).

ELECTRICAL INSTALLATION: This product requires professional installation to a dedicated cooker circuit (identified by a big red cooker switch) by a qualified installer, such as one of our Tech Experts.

Technical specifications for RANGEMASTER Estel Deluxe ESDLO110DFPGBL/CM1 110 cm Dual Fuel Range Cooker - Black & Chrome

OVERVIEW

Type
Freestanding dual fuel range cooker
Fuel
Dual fuel
Colour
Black & chrome
LPG option
Yes, kit available
Oven type
- Main: electric
- Second: electric
Number of ovens
2
Hob type
Gas
Number of burners
5
Number of grills
1

CONTROLS

Control type
Dials
Timer type
- Fully programmable main oven
- Countdown timer
Display type
LED display
Ignition system
Automatic
Wok burner
Yes
Pan supports
Cast iron
Flame Supervision Device (FSD)
Yes
Griddle
Yes

OVENS

Oven cleaning
- Main: catalytic liners
- Second: catalytic liners
Energy rating
- Main: A
- Second: A
Other features
- Telescopic shelf
- Handy rack in main oven
- Plate rack in RH oven
Functions
- Duo
- Fan Oven
- Fanned Grilling
- Fan Assisted
- Conventional
- Browning
- Base Heat
- Defrost
Energy consumption
- Main: 1.01 & 0.88 kWh
- Second: 0.79 kWh
Viewing window
- Main: triple glazed
- Second: double glazed
Oven type
- Main: multifunction
- Second: fan
Size
- Main: large
- Second: large
Capacity
- Main: 80 litres
- Second: 80 litres
Interior light
- Main: yes
- Second: yes
Main oven shelves
- 2 shelves
- 7 shelf positions
Second oven shelves
- 2 shelves
- 7 shelf positions
Door opening style
- Main: Left-hinged
- Second: Right-hinged
Removeable door glass
- Main: yes
- Second: yes

GRILL

Grill type
Separate variable electric grill
Grill features
- Deluxe glide out grill
- 4 height positions
Grill capacity
29 litres
Grill cleaning
Enamel coating
Boxed dimensions
1006 x 1199 x 720 mm (H x W x D)
Box contents
- Rangemaster Estel Deluxe ESDLO110DFPGBL/CM1 110 cm Dual Fuel Range Cooker
- Griddle
- Shelves
- Grill pan
- Wok cradle
Weight
140.86 kg
Boxed weight
149.9 kg
Dimensions
895 x 1092 x 617 mm (H x W x D)
Recess dimensions
895 x 1102 x 617 mm (H x W x D)
Manufacturer’s guarantee
2 years

INSTALLATION

Minimum distance required
- 650 mm above hob
- 5 mm to the sides
Electrical installation
This product requires hardwiring to a 32 Amp fuse and should be installed by a qualified installer, such as one of our Tech Experts.
Electrical power rating
10.7 kW
Cooker legs
Telescoping legs (40 mm)
Gas & dual fuel installation
Please note this product should be installed by a qualified Gas Safe engineer, such as one of our Tech Experts (available in the UK only).
Power supply
32 Amp (Requires hardwiring to a dedicated cooker circuit)
