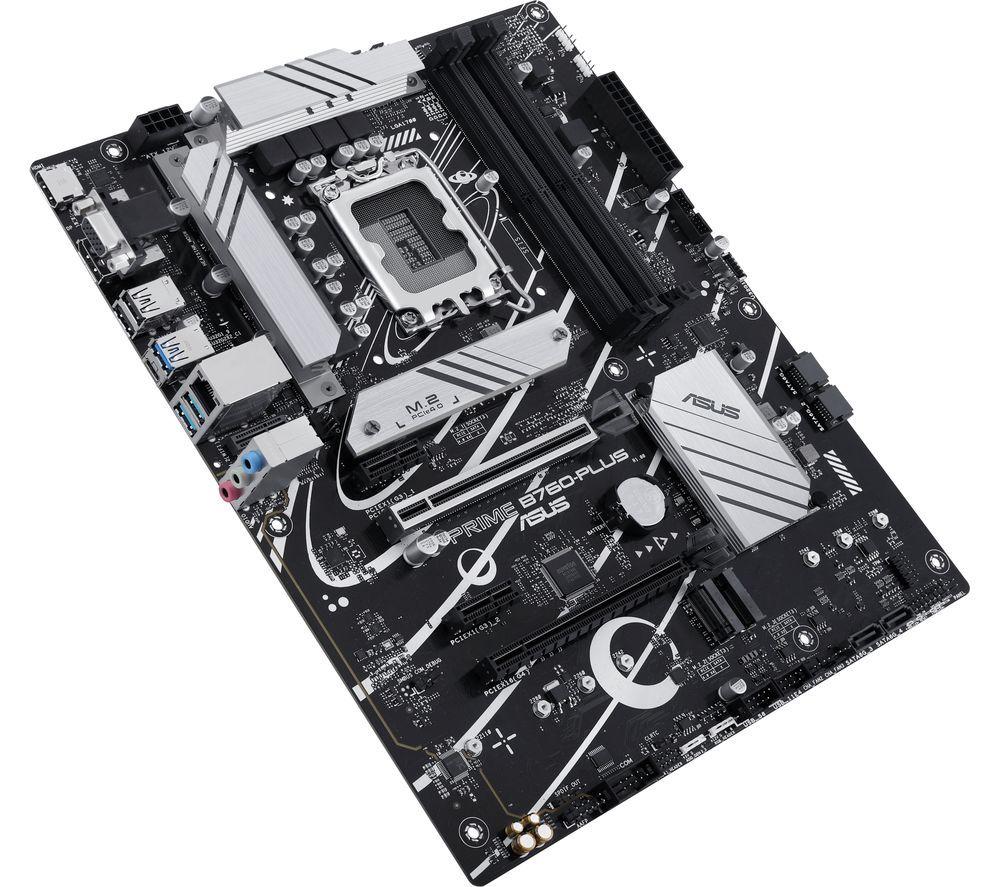

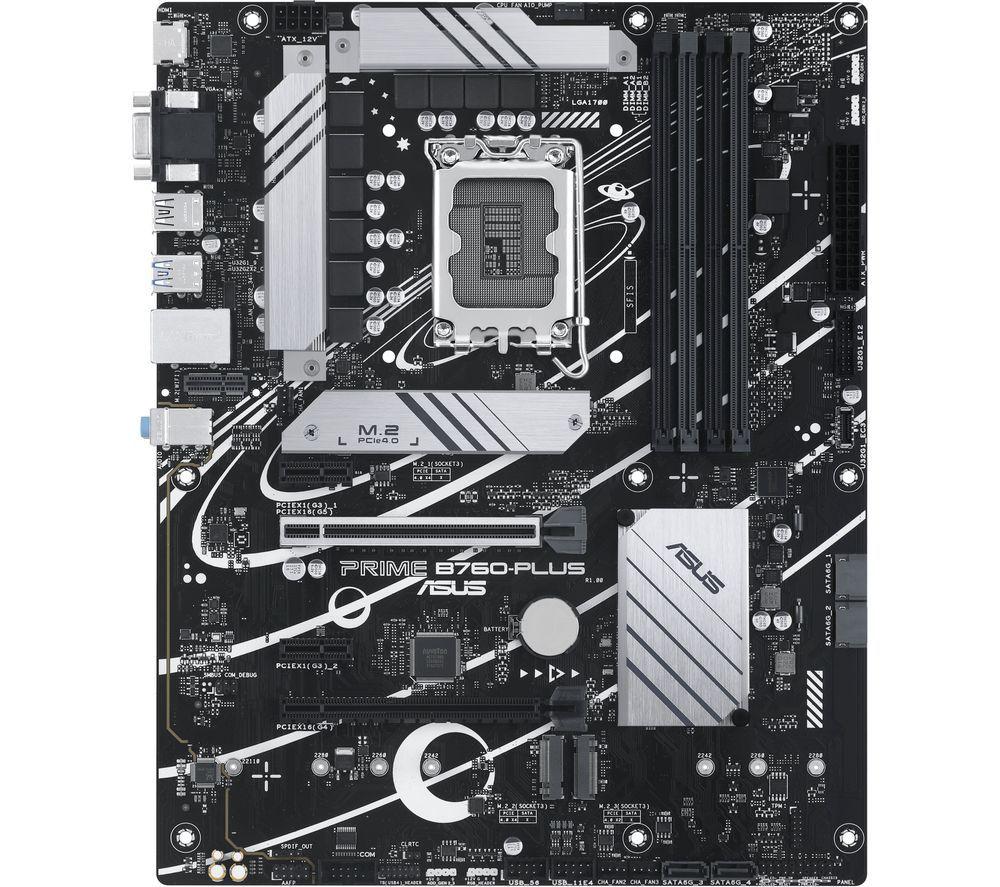

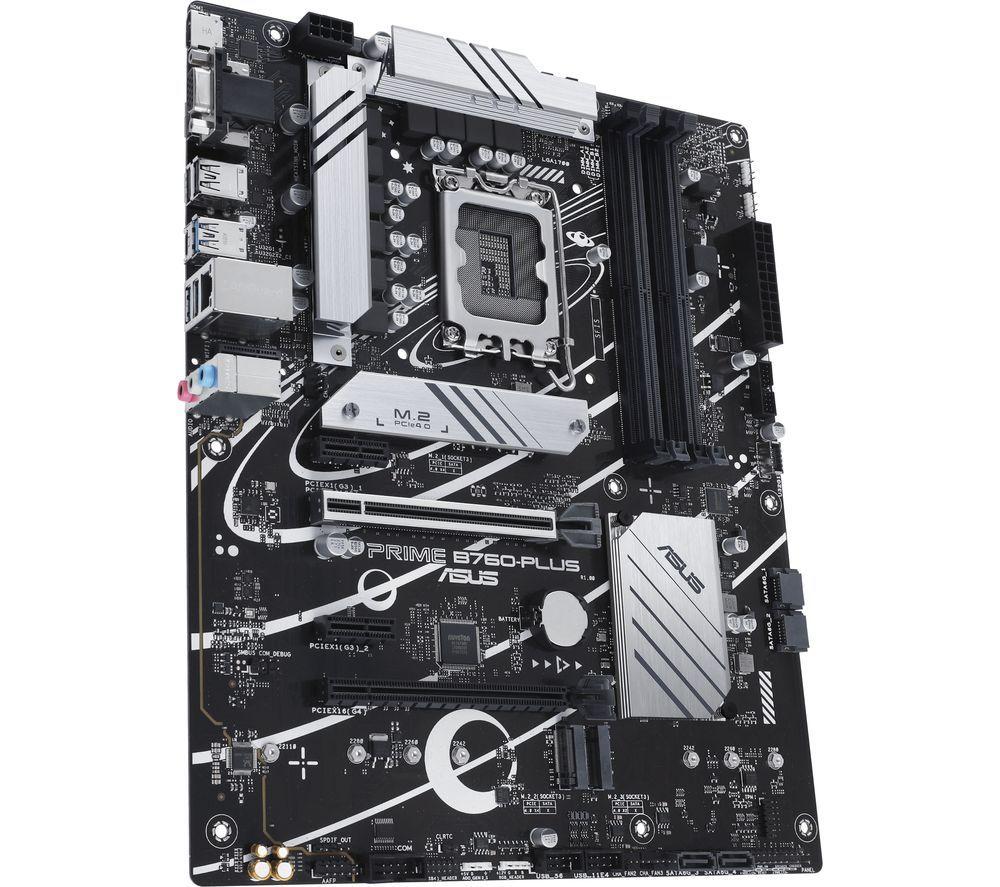

ASUS PRIME B760-PLUS LGA1700 Motherboard

ASUS PRIME B760-PLUS LGA1700 Motherboard

Item No. 10264349

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFYCNTRL_FNDD_GAMING_WK06
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® B760
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® B760
Memory: DIMM x 4 / Max RAM: 192 GB DDR5
3 year guarantee
Product code: 653461

The ASUS PRIME B760-PLUS LGA1700 Motherboard is designed for gamers, professionals, and content creators who need reliable performance for demanding workloads. It's ready for Intel® 13th and 12th Gen Core processors, so you can put all those cores to work. Add up to 192 GB of DDR5 RAM and blaze through your workflows. And its VRM, M.2, and PCH heatsinks work alongside Fan Xpert 2+ to keep things cool.

  • ASUS Enhanced Memory Profile II & OptiMem II - help memory run faster with automatic tuning
  • PCIe 5.0 x16 slot - gives up to 64 GB/s of bandwidth for today's fastest graphics cards
  • Three M.2 slots - install up to three NVMe SSDs for faster load times and plenty of space
  • ASUS Aura Sync - lets you connect RGB lights and sync them with your components
  • ASUS Armoury Crate - a single dashboard for managing lighting, updates, and system settings

Technical specifications for ASUS PRIME B760-PLUS LGA1700 Motherboard

OVERVIEW

Form factor
ATX
Chipset
Intel® B760
Socket
LGA1700
Processor models supported
- Intel® Core™ 14th Gen Processors
- Intel® Core™ 13th Gen Processors
- Intel® Core™ 12th Gen Processors
- Intel® Pentium® Gold Processors
- Intel® Celeron® Processors
- Intel® Turbo Boost Technology 2.0
- Intel® Turbo Boost Max Technology 3.0
Memory slots
4 x DIMM (Max RAM: 192 GB)
Memory standard
DDR5
Operating systems supported
- Windows 10 64-bit
- Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 2.5Gb Ethernet x 1
Audio
- Realtek 7.1 Surround Sound High Definition Audio CODEC
- 3.5 mm jack x 3
- Front panel audio header x 1
USB
- USB 3.2 Type-C x 1
- USB 3.2 Gen 2 x 2
- USB 3.2 Gen 1 x 1
- USB 2.0 x 2
Other external connections
Vertical M.2 slot (Key E) x 1

INTERNAL CONNECTIVITY

BIOS
- 128 Mb Flash ROM x 2
- UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x16) (supports x4 mode) x 1
- PCIe 3.0 (x1) x 2
Storage slots
- SATA x 4 (6 Gb/s)
- M.2 x 3
Cooling
- 4-pin CPU Fan Header x 1
- 4-pin CPU OPT Fan Header x 1
- 4-pin Chassis Fan Headers x 3
Case
Power LED x 1
Buttons
Power
Power
- 24-pin main power connector x 1
- 8-pin 12V CPU power x 1
Other internal connections
Thunderbolt USB4 header x 1
Addressable Gen 2 headers x 3
Aura RGB header x 1
Clear CMOS header x 1
COM Port header x 1
Front Panel Audio header (AAFP) x 1
S/PDIF Out header x 1
SPI TPM header (14-1pin) x 1
20-3 pin System Panel header with Chassis intrude function x 1
USB
- USB 3.2 Type-C x 1
- USB 3.2 x 1
- USB 2.0 x 2

GENERAL

Box contents
- Asus PRIME B760-PLUS LGA1700 Motherboard
- SATA 6Gb/s cables x 2
- I/O Shield
- M.2 Rubber Package
- Screw Packages for M.2 SSD
- User guide
Software included
- ASUS Exclusive Software
- Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- AI Suite 3
- DIGI+ VRM
- PC Cleaner
- ASUS CPU-Z
- Norton 360 Deluxe (60 Days Free Trial)
- WinRAR
- UEFI BIOS
- ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Weight
1.31 kg
Manufacturer’s guarantee
3 years
Dimensions
305 x 244 x 25 mm (H x W x D)
Colour
Black
