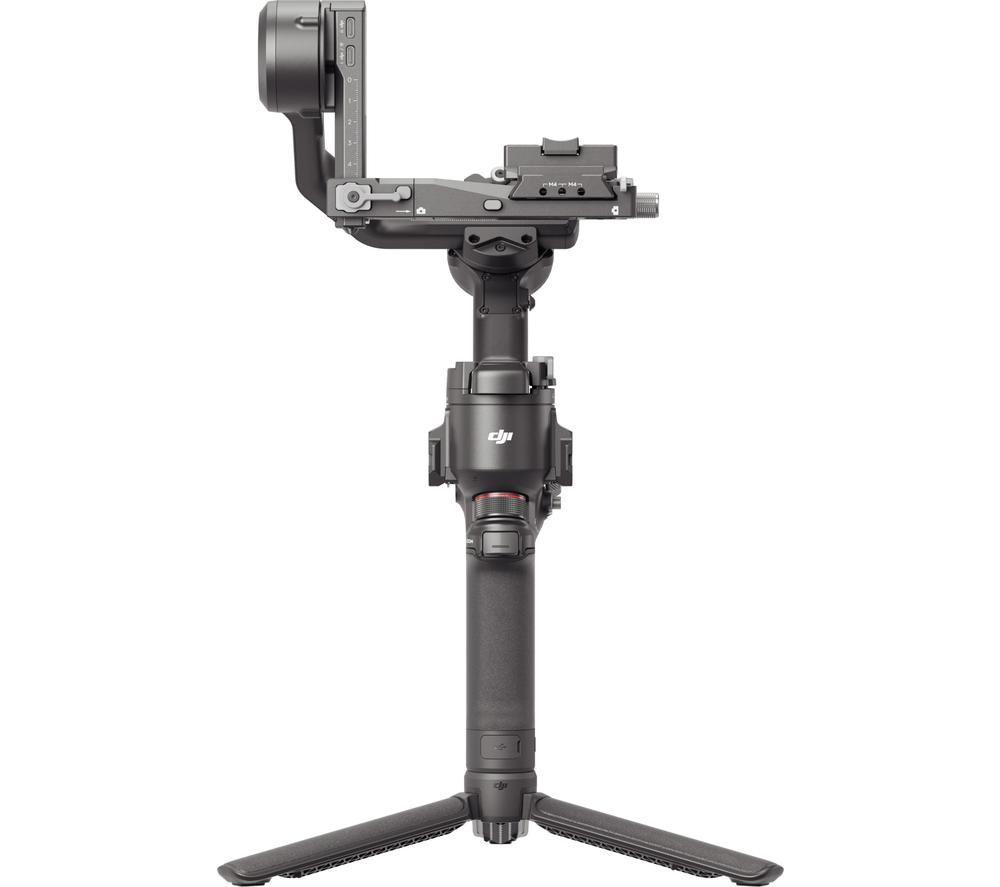

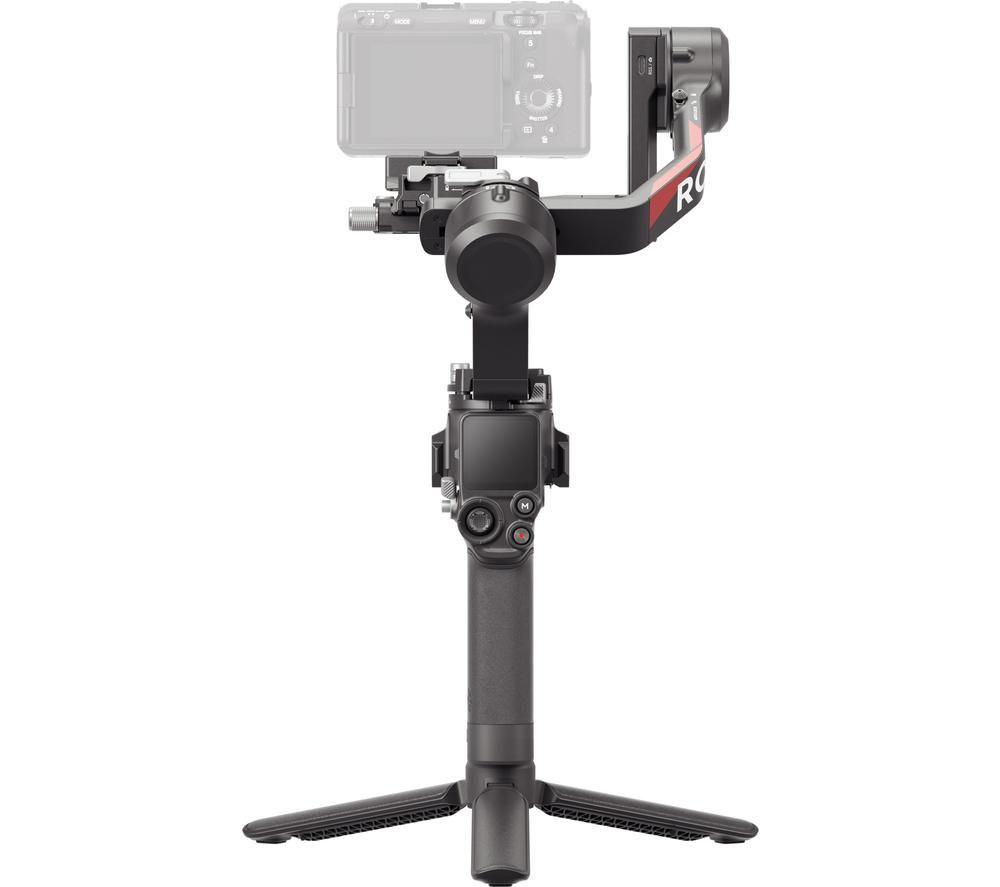

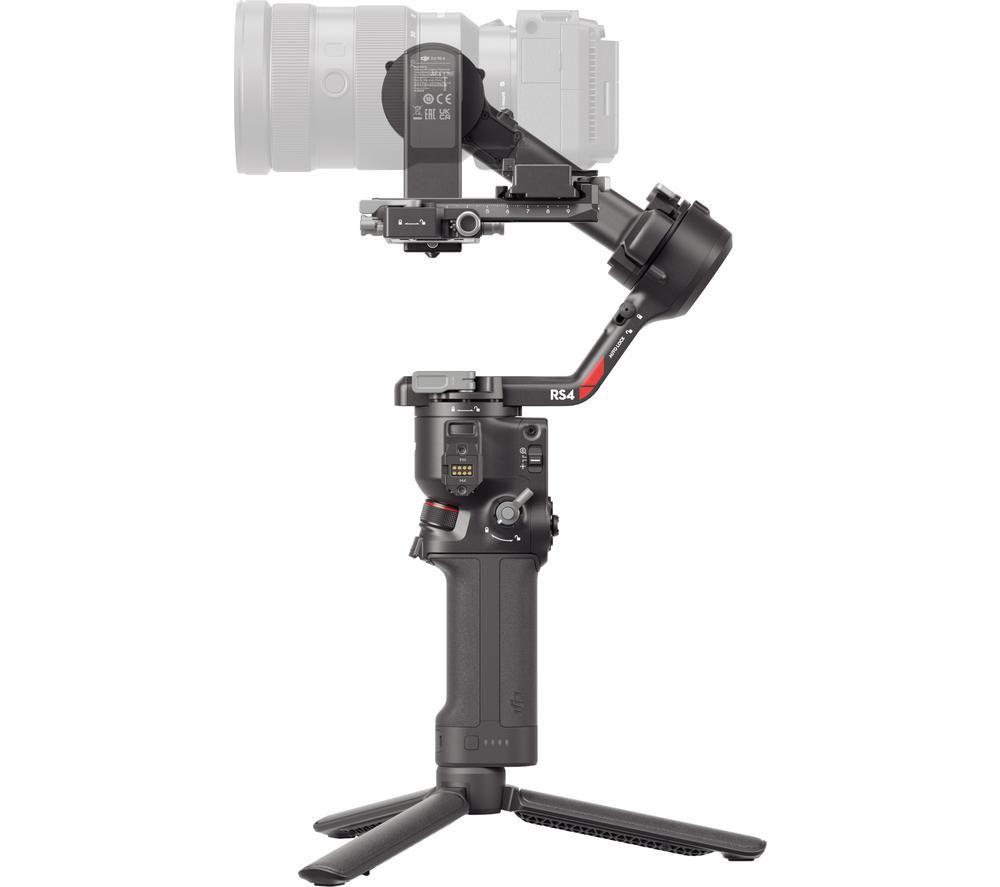

DJI Ronin RS 4 Handheld Gimbal Stabiliser
3-axis stabilisation
Maximum load: 3 kg
2 year guarantee
Product code: 390122

Tell gripping stories any which way you like with the DJI RS4. It switches from Horizontal to Native vertical shooting in a snap. The 4th-Gen RS Stabilisation algorithm is more than able for vertical filming and even handles action shots like running. So it's easy to unleash your inner guerrilla film-maker. You can even switch over to joystick mode for a quick and easy way to adjust focus, ISO, gimbal axes and loads more. Getting up and running is simple - the automated axis locks can sleep and wake, so they're ready at a moment's notice. And there's a fine-tuning knob to dial in the tilt axis after you change cameras or lenses.

Good to know

- The Teflon coated aluminium arms are silky smooth and balanced even with heavier kit up to a 3 kg payload
- Its Dual-Layered Quick-Release Plate is easy to use, prevents camera rotation and follows ARCA standards for tripod switching
High-torque motors mean you'll even get usable footage when zooming out to max focal length on long lenses
- Switch modes or toggle settings straight from the 1.8" OLED touchscreen - don't worry, Auto-lock stops any accidental button presses
- Its battery lasts for up to 12 hours, so you can keep rolling for a full working day
- The NATO port gives you loads of accessory options, like fill lights and monitors
Bluetooth lets you start recording and control camera functions straight from the gimbal's record button
- This can work with all kinds of expansion kit - from the Focus Pro motor's incredible tracking to the DJI Image Transmitter and more (all sold separately)

Technical specifications for DJI Ronin RS 4 Handheld Gimbal Stabiliser

CONSTRUCTION

Head attachment
Quick release plate: dual-layered (with adjustable placement guide)
Panoramic rotation
360°
Pan and tilt
Yes
Quick release
Yes
Thread mount size
1/4"
Maximum load capacity
3 kg
Other features
- Supports Ronin Image Transmitter & Focus Pro Motor (both sold separately)
- Native vertical shooting
- POV (Roll Follow) mode
- Automated axis locks
- FPV mode
- Zoom control
- 1.8" full colour OLED touchscreen
- Power Delivery fast charging
- RSA ports × 1
- NATO ports × 2
- Charging adapter port × 1
- Built-in joystick

OVERVIEW

Compatibility
Recommended camera and lens combinations:
- Sony: A7S3/A7M4/A7C/A1 + FE 24-70 mm F2.8
- Canon: R5/R6 + RF 24-70 mm F2.8
- Nikon: Z6 II/Z7 II + Z 24-70 mm F2.8
- Panasonic: GH6 + M4/3 12-60 mm F2.8-4.0
- Fujifilm: X-T4 + X 16-55 mm F2.8
Material
Axis arm: Aluminium alloy & Teflon coating
Type
3-axis gimbal stabiliser

GENERAL

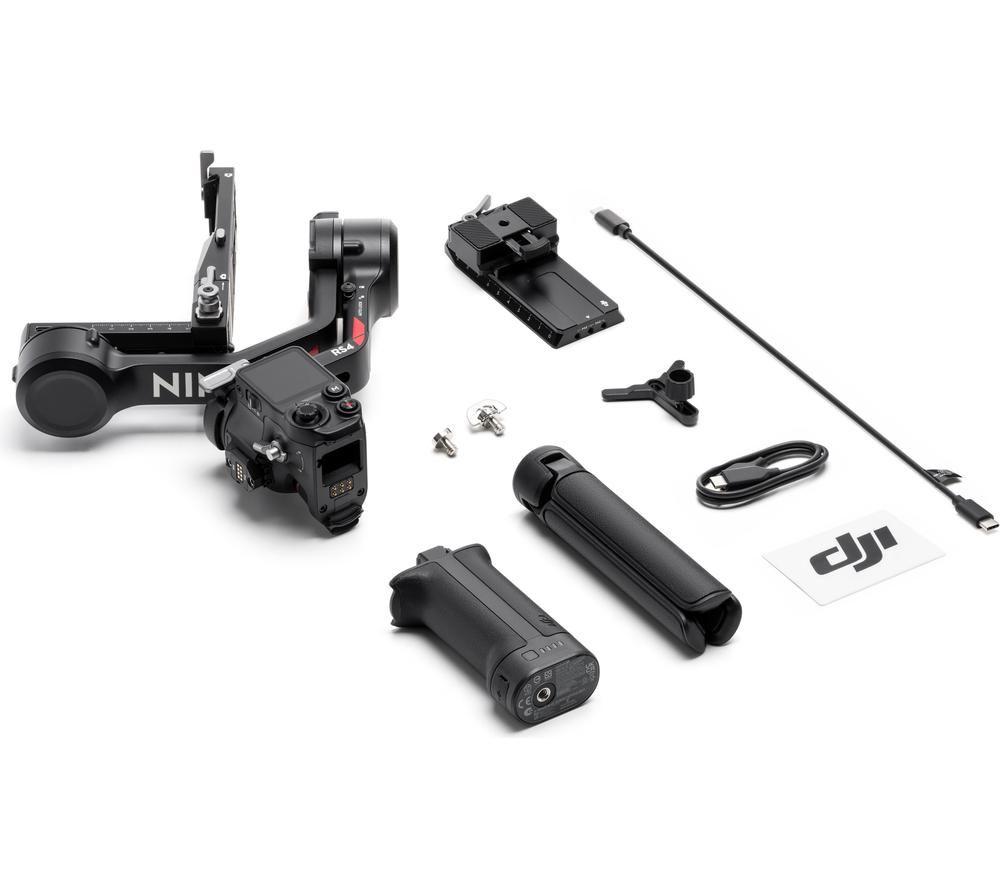

Box contents
- DJI Ronin RS 4 Handheld Gimbal Stabiliser
- Grip with built-in battery
- Quick release plate
- Extended grip / tripod
- Briefcase handle
- Lens-fastening support
- Multi-camera control USB Type-C cable (30 cm)
- USB Type-C charging cable (40 cm)
- Screw kit
Dimensions
255 x 245 x 75 mm (H x W x D)
Weight
Gimbal: 1.4 kg
Manufacturer's guarantee
2 years
Colour
Black
Wireless connectivity
Bluetooth 5.1
Power
- Detachable battery
- Runtime: Up to 12 hours
- Charging time: 2.5 hours
