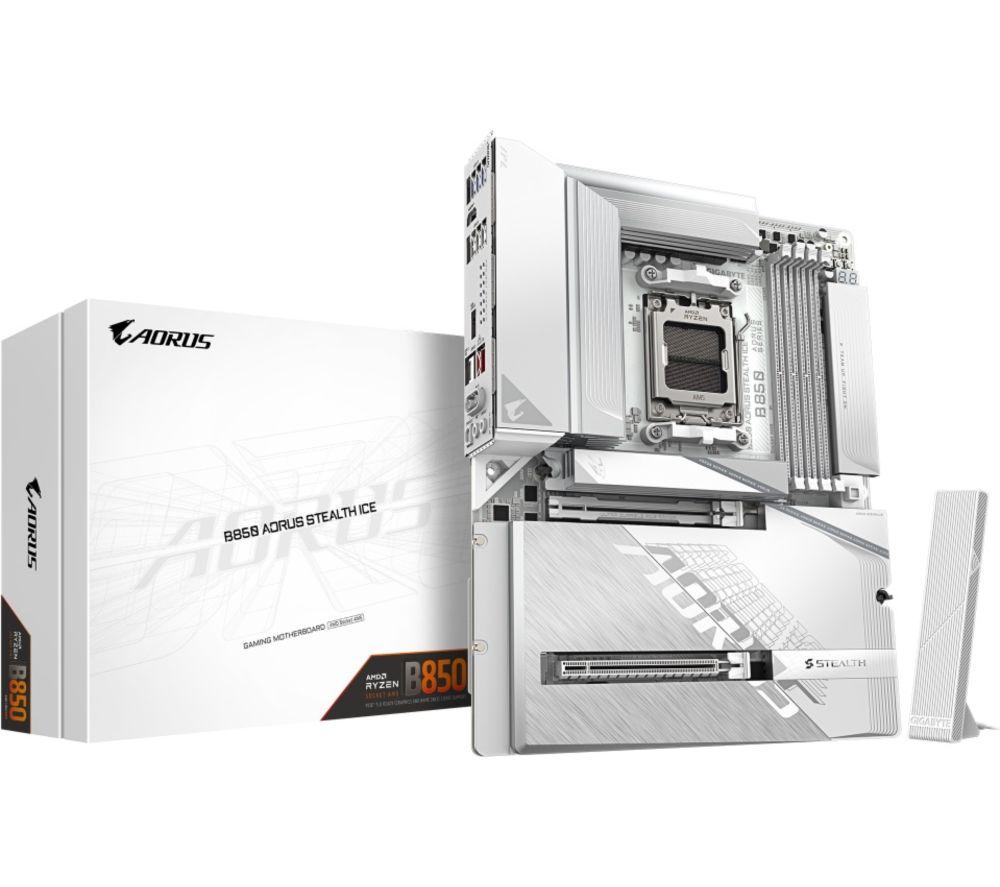

GIGABYTE Aorus B850 Stealth Ice AM5 WIFI7 Motherboard
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 583466

This Eagle motherboard is the perfect base for your PC. It'll let you squeeze every bit of power from AMD Ryzen 9000, 8000 and 7000 processors. With the Twin Digital VRM Design you can safely overclock the CPU and push it to the max. There are 4 DIMM slots allowing you to plug in up to 256 GB DDR5 RAM - that's plenty even for the most powerful systems. And you can forget about slow loading. The PCIe 5.0 M.2 SSD slot let you install a blazing fast drive.

Good to know


- With AMD EXPO you can overclock compatible DDR5 RAM up to 8200 MT/s
X3D Turbo Mode gives you higher frame rates, meaning smoother gameplay
Ultra Durable design means it'll last for years
WiFi 7 and Gigabit Ethernet give you fast internet
- The Advanced Thermal Armor keeps your motherboard cool even with high-end components
EZ-Latches make PC assembly quicker and more user-friendly

Technical specifications for GIGABYTE Aorus B850 Stealth Ice AM5 WIFI7 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD B850
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000 / 8000 / 7000 Series processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
- Fan cooling
- Water pump headers
Operating systems supported
Windows 11 or later

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek GbE LAN chip
Audio
Realtek Audio CODEC
USB
- USB Type-C x 1
- USB 3.2 Gen 1 x 2
- USB 3.2 Gen 2 x 2
- USB 2.0 x 4
Other external connections
Antenna connectors (2T2R) x 2

INTERNAL CONNECTIVITY

BIOS
UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x16) x 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 4
Cooling
- CPU fan header x 1
- CPU fan/water cooling pump header x 1
- System fan headers x 4
- System fan/water cooling pump header x 2
Buttons
- Power button
- Q-Flash Plus
- Clear CMOS jumper
Power
- 24-pin ATX x 1
- 8-pin ATX x 1
- 4-pin ATX x 1
Other internal connections
- Addressable RGB LED strip headers x 3
- RGB LED strip header x 1
- M.2 Socket 3 connectors x 3
- TPM header x 1
USB
- USB Type-C x 1
- USB 3.2 Gen 1 x 4
- USB 2.0 x 4

GENERAL

Box contents
- Gigabyte Aorus B850 Stealth Ice AM5 WIFI7 Motherboard
- Antenna
- SATA cables x 2
- G connector x 1
- M.2 screws
- M.2 thick/thin rubber pads pack x 1
- Manual
- Quick installation guide
Weight
4.1 kg
Manufacturer’s guarantee
3 years
Dimensions
70 x 244 x 305 mm (H x W x D)
Colour
White
