GIGABYTE AORUS ELITE GP-AE1000PM PG5 ICE Modular ATX PSU - 1000 W, White
80 PLUS Platinum
120 mm fan
10 years guarantee
Product code: 511003

- PCIe Gen 5.0 with ATX 3.0 support lets your GPU pull up to 600 W, so it runs efficiently
- The AORUS magnetic plate lets you customise the look by snapping it onto different sides
- The compact 140 mm length fits easily into smaller cases
- Fully modular cables mean you only connect what you need - less clutter, better airflow
- The built-in protections like OCP, OTP and more help keep your system safe and stable
- The single +12V rail helps with overclocking - a little speed boost for faster, smoother gameplay

Technical specifications for GIGABYTE AORUS ELITE GP-AE1000PM PG5 ICE Modular ATX PSU - 1000 W, White

GENERAL

Colour
White
Dimensions
86 x 150 x 140 mm (H x W x D)
Weight
3 kg
Manufacturer’s guarantee
10 years
Box contents
- Gigabyte AORUS ELITE GP-AE1000PM PG5 ICE Modular ATX PSU
- UK power cord
- Mounting screws
- Cable set

OVERVIEW

Form factor
ATX
Power
1000 W
80 PLUS certification
80 PLUS Platinum
Modular
Yes

FEATURES

Cooling
120 mm fan
MTBF
100,000 hours

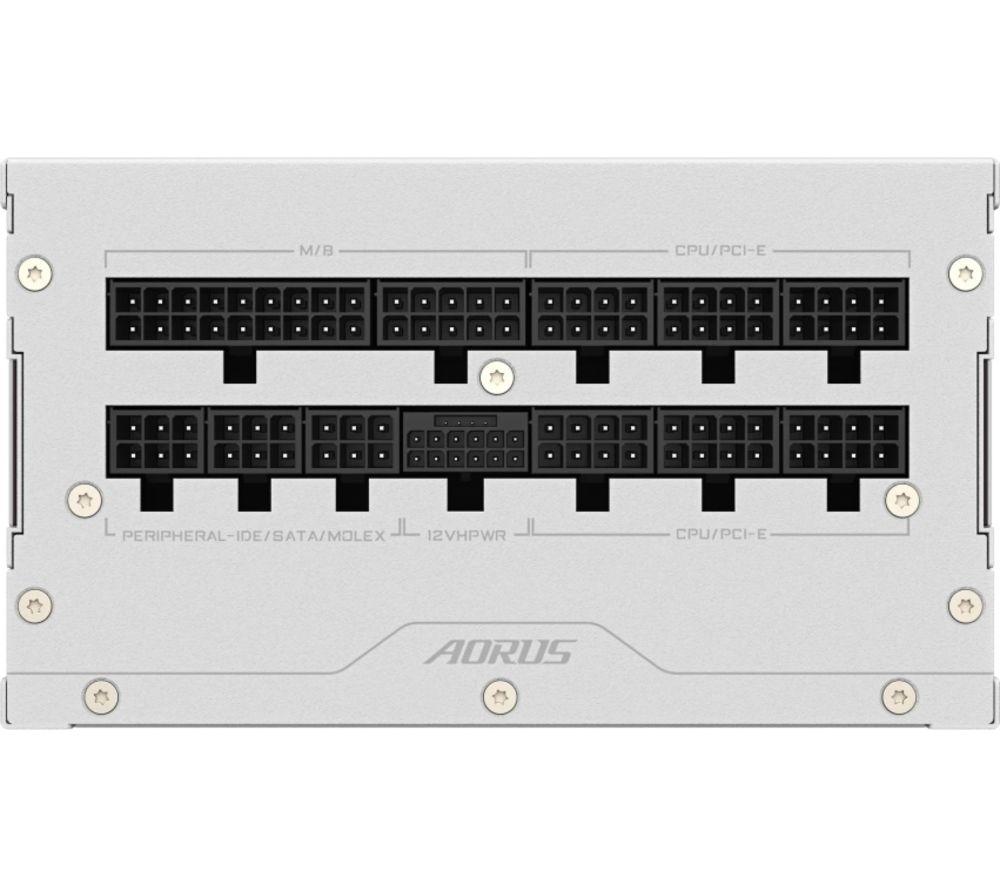

Connections
- 20+4 pin ATX x 1
- 16‑pin PCIe x 1
- 6+2 pin PCIe x 6
- 4‑pin peripheral connector x 4
- SATA x 8
Other features
- Supports PCIe Gen 5.0 graphics cards
- Supports Intel ATX 3.0 standard
- AORUS magnetic plate design
- Fully modular
- Single +12V rail
- OCP
- OVP
- UVP
- OTP
- OPP
- SCP
