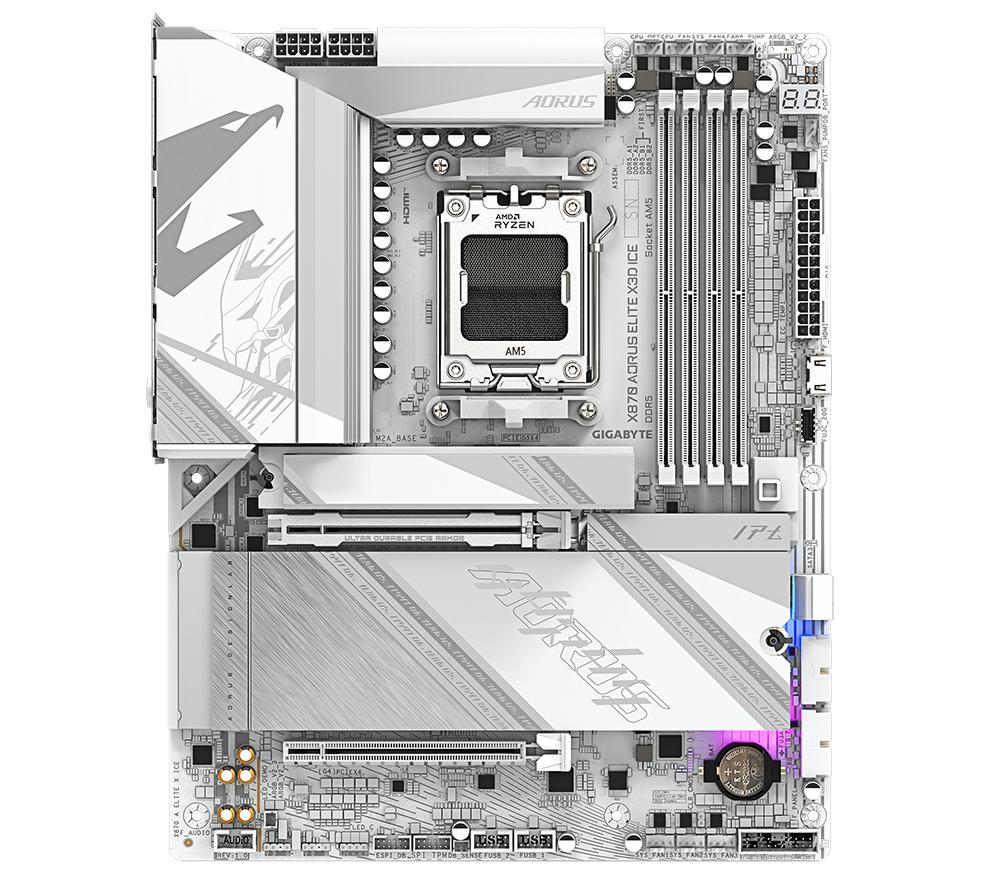

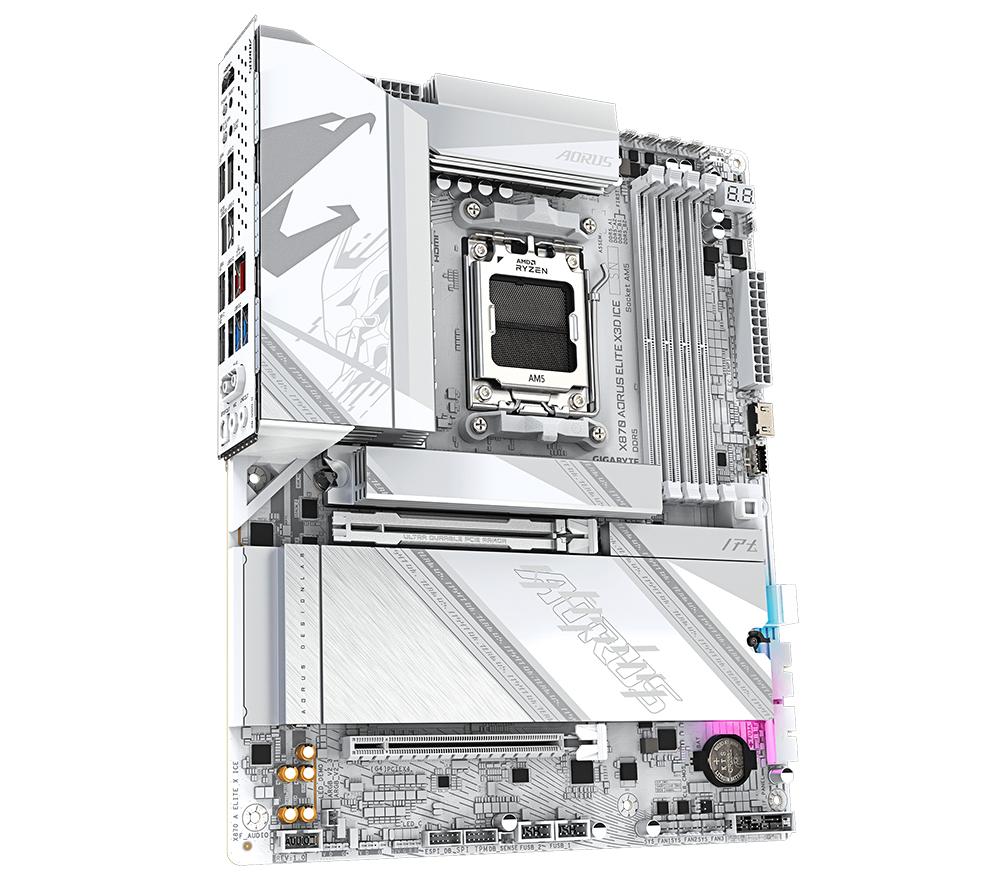

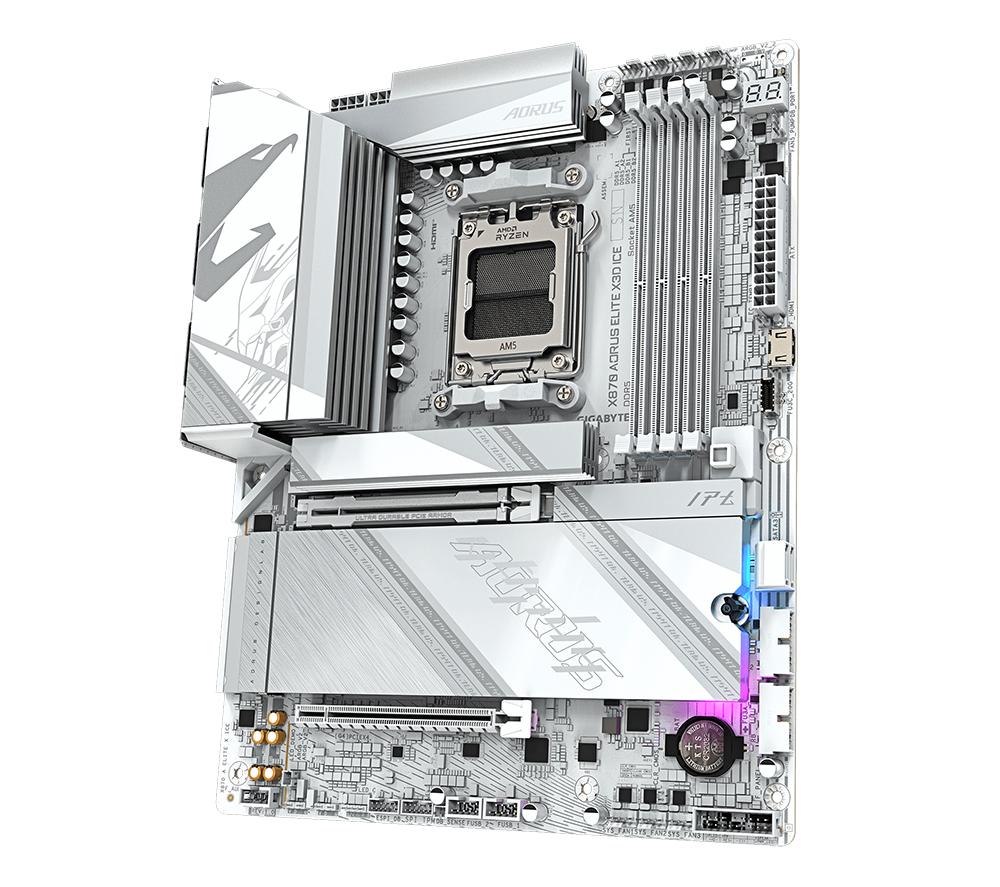

GIGABYTE AORUS ELITE X3D ICE X870 AM5 Motherboard

GIGABYTE AORUS ELITE X3D ICE X870 AM5 Motherboard

Item No. 10296852

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFYCNTRL_FNDD_GAMING_WK06 INFYCNTRL_BNPL12_GAMING
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 724795

The Gigabyte AORUS ELITE X3D ICE X870 AM5 Motherboard is best for gamers who want to build a high-performance PC. It supports AMD Ryzen 7000, 8000 and 9000 Series processors, with plenty of performance for gaming and room to upgrade later on. VRM Thermal Armor and M.2 Thermal Guard keep temperatures in check during long gaming sessions in titles like Call of Duty, Cyberpunk 2077 and Fortnite. And PCIe 5.0 and PCIe 4.0 support means compatibility with fast SSDs and next-generation components.

  • Supports up to 256 GB DDR5 RAM - keeps games, browser tabs and background apps running smoothly
  • X3D Turbo Mode 2.0 - boosts performance with compatible AMD X3D processors
  • Two M.2 slots - add extra NVMe SSD storage
  • Includes HDMI, USB 3.0 and USB 2.0 ports
  • WiFi 7 and 5 GbE LAN

Technical specifications for GIGABYTE AORUS ELITE X3D ICE X870 AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X870
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000 / 8000 & 9000 Series processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
- Advanced passive heatsinks
- VRM Thermal Armor Advanced
- Reinforced PCB thermal plate
- M.2 Thermal Guard
Operating systems supported
Windows 11

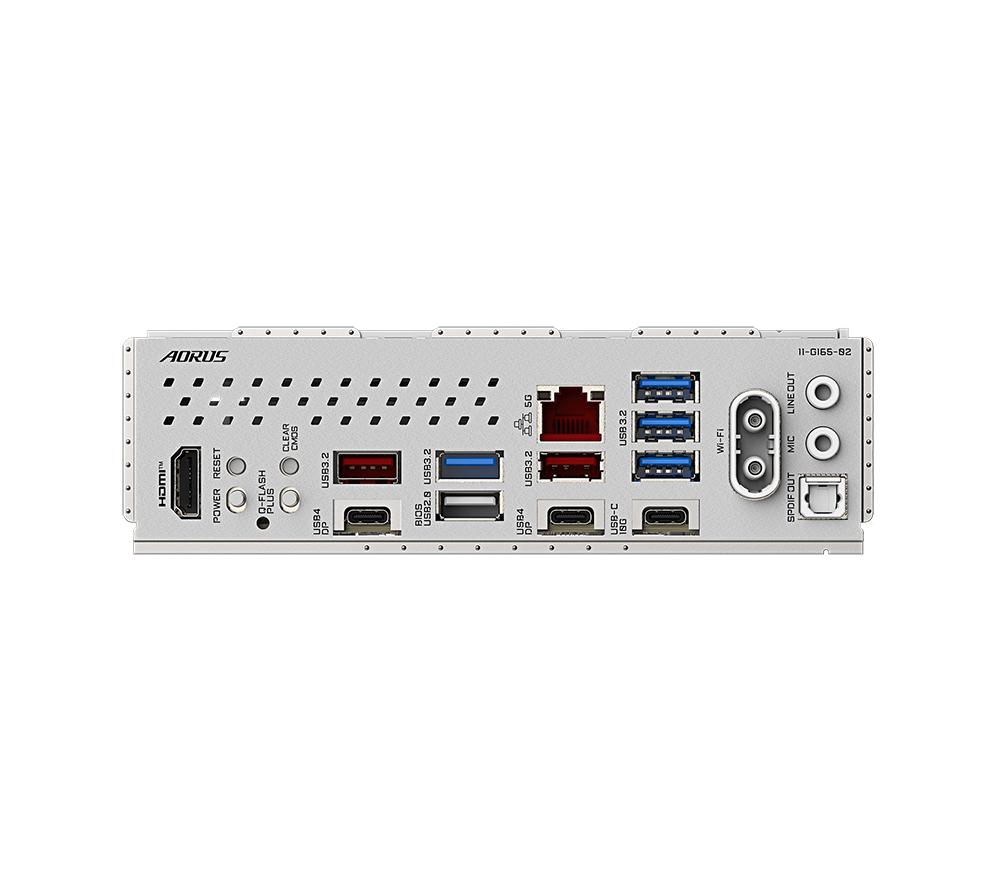

EXTERNAL CONNECTIVITY

Video output
HDMI x 1
LAN
5GbE LAN x 1
Audio
- Optical S/PDIF Out
- 3.5 mm jack x 2
-Ethernet port
USB
- USB Type-C x 3
- USB 2.0 x 1
Other external connections
Wi‑Fi 7

INTERNAL CONNECTIVITY

BIOS
AMI UEFI BIOS (512 Mbit flash)
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x4) x 1
Storage slots
- SATA x 2
- M.2 x 2
Cooling
- VRM Thermal Armor Advanced
- M.2 Thermal Guard
Case
- Power switch
- Reset switch
Buttons
- Reset
- Power
- Clear CMOS jumper
- Q-Flash Plus button
Power
- 24-pin ATX x 1
- 8-pin ATX x 2
Sensors
- Temperature sensor
- Noise detection
Other internal connections
- Addressable RGB Gen2 headers
- RGB LED header

GENERAL

Box contents
- Gigabyte AORUS ELITE X3D ICE X870 AM5 Motherboard
- Manual
- Quick Installation Guide
- Antenna
- SATA cables x 2
- G Connector
- M.2 rubber pads
Weight
2.42 kg
Manufacturer’s guarantee
3 years
Dimensions
244 x 305 mm (W x D)
Colour
White
