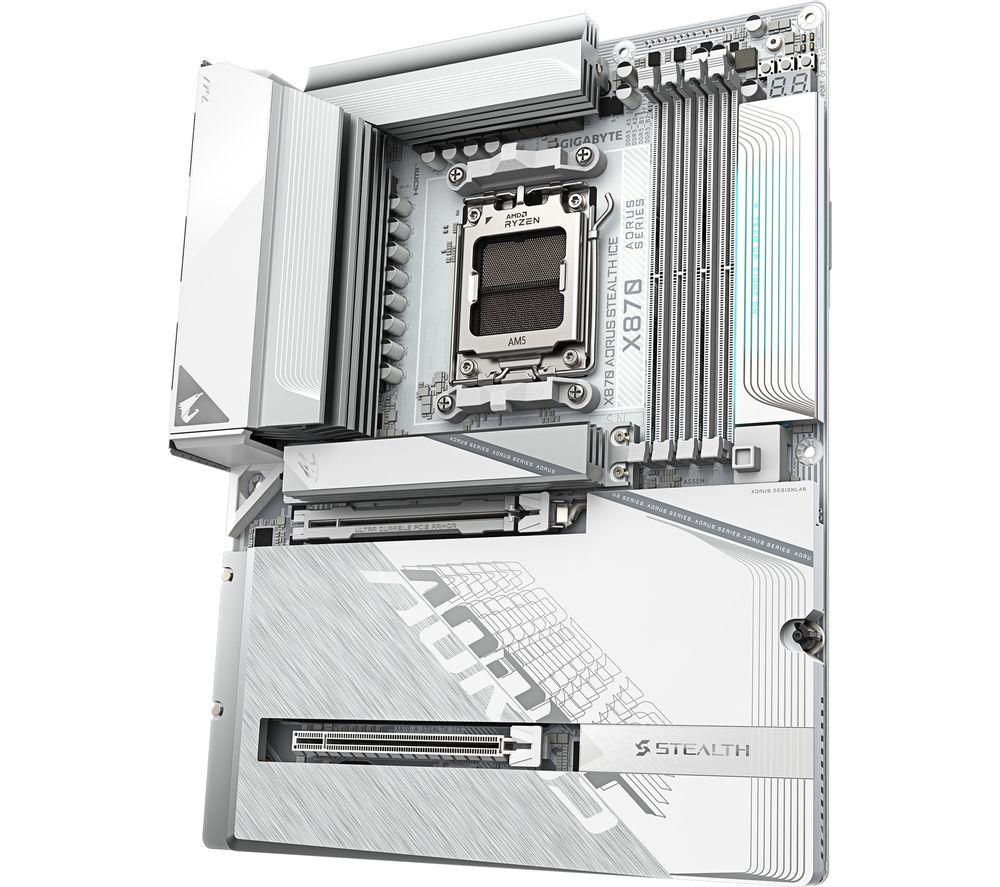

GIGABYTE Aorus STEALTH ICE X870 AM5 Motherboard

GIGABYTE Aorus STEALTH ICE X870 AM5 Motherboard

Item No. 10291916

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFYCNTRL_BNPL12_GENERIC_WK07 INFYCNTRL_FNDD_WK32
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 779961

If you want to build a proper machine, you need a solid base. This Aorus STEALTH ICE motherboard will let you squeeze every bit of power from your AMD 7000, 8000 or 9000 Series processor You can plug in up to 256 GB of DDR5 RAM and blaze through your workflows. With the Twin Digital VRM Design you can safely overclock the CPU and push it to the max. And you can forget about slow loading. The PCIe 5.0 M.2 SSD slot let you install a blazing fast drive.

Good to know

- WiFi 7 gives you incredibly fast wireless internet, and there's Gigabit Ethernet too
- Choose either water or fan cooling, this motherboard lets you do bot
- With XMP you can overclock compatible DDR5 RAM up to 8200 MT/s
- The Thermal Armor Advanced keeps your motherboard cool even with high-end components
- Smart Fan 6 gives you precision control over your cooling
- To make building a PC easier, it's got user-friendly EZ-latches for some of the components
- The D5 Bionic Corsa design boosts signal quality for faster, more reliable RAM speeds
- Connect loads of LEDs to create unique custom lighting controlled by Gigabyte RGB Fusion

Technical specifications for GIGABYTE Aorus STEALTH ICE X870 AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X870
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000 / 8000 & 9000 Series processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
- Fan cooling
- Liquid cooling
Operating systems supported
Windows 11 (64-bit)

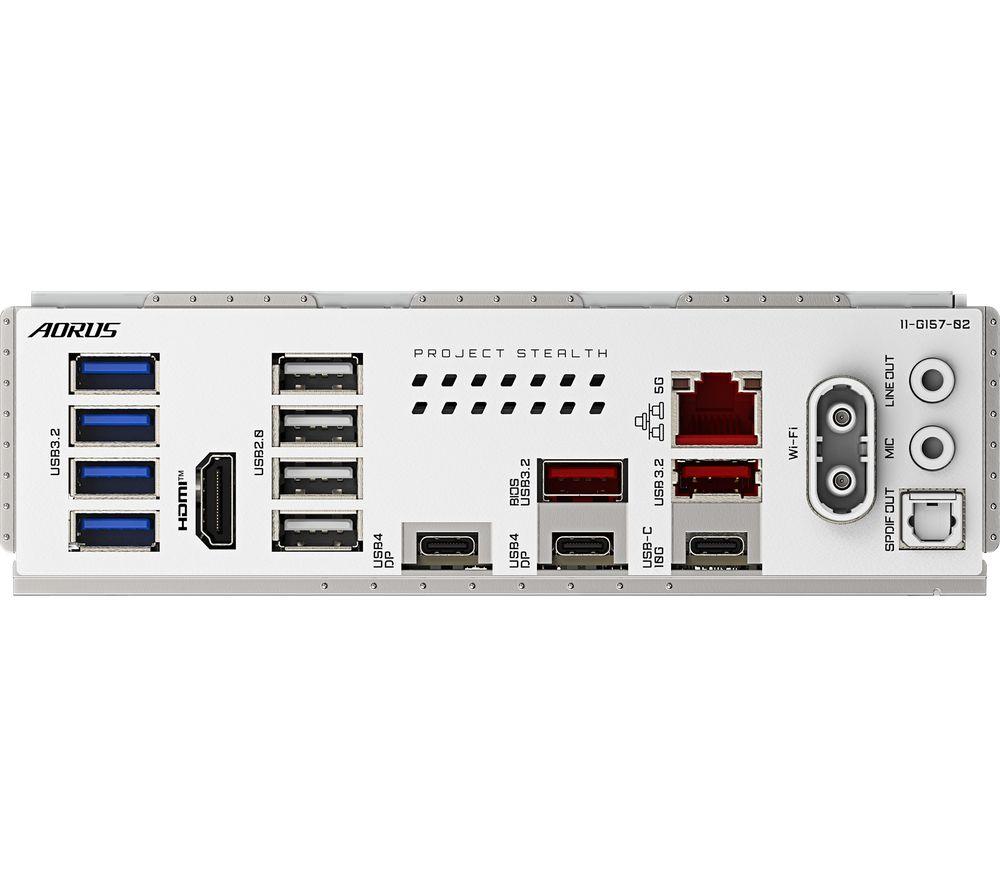

EXTERNAL CONNECTIVITY

Video output
HDMI x 1
LAN
Realtek 5GbE LAN chip (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)
Audio
- Optical S/PDIF Out
- 3.5 mm jack x 2
- 7.1 HD Audio (Realtek ALC1220)
USB
- USB Type-C x 1
- USB Type-C x 2 (with DP alt mode)
- USB 3.2 Gen 1 x 4
- USB 2.0 / 1.1 x 4
Other external connections
- Qualcomm WiFi 7 QCNCM865
- Bluetooth 5.4

INTERNAL CONNECTIVITY

BIOS
- AMI UEFI BIOS
- SM BIOS
- ACPI
- DMI
- WfM
Expansion slots
CPU:
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x16) x 8
- PCIe 4.0 (x16) x 4

Chipset:
- PCIe 4.0 (x16) x 4
Storage slots
- SATA x 2 (6 GB/s)
- M.2 x 4
Cooling
- CPU fan header x 1
- CPU fan/water cooling pump header x 1
- System fan headers x 4
- System fan/water cooling pump header x 2
Case
- Front panel header x 1
- Front panel audio header x 1
- Noise detection header x 1
- TPM header x 1
Buttons
- Reset
- Power
- Clear CMOS jumper
- Q-Flash Plus button
Power
- 24-pin ATX x 1
- 8-pin ATX (12 V) x 1
- 4-pin ATX (12V) x 1
Sensors
- Voltage detection
- Temperature sensor
- Fan speed sensor
- Water cooling flow rate sensor
Other internal connections
- Addressable RGB Gen2 LED strip headers x 3
- RGB LED strip header x 1
USB
- USB Type-C x 1
- USB 3.2 x 1
- USB 2.0 / 1.1 x 2

GENERAL

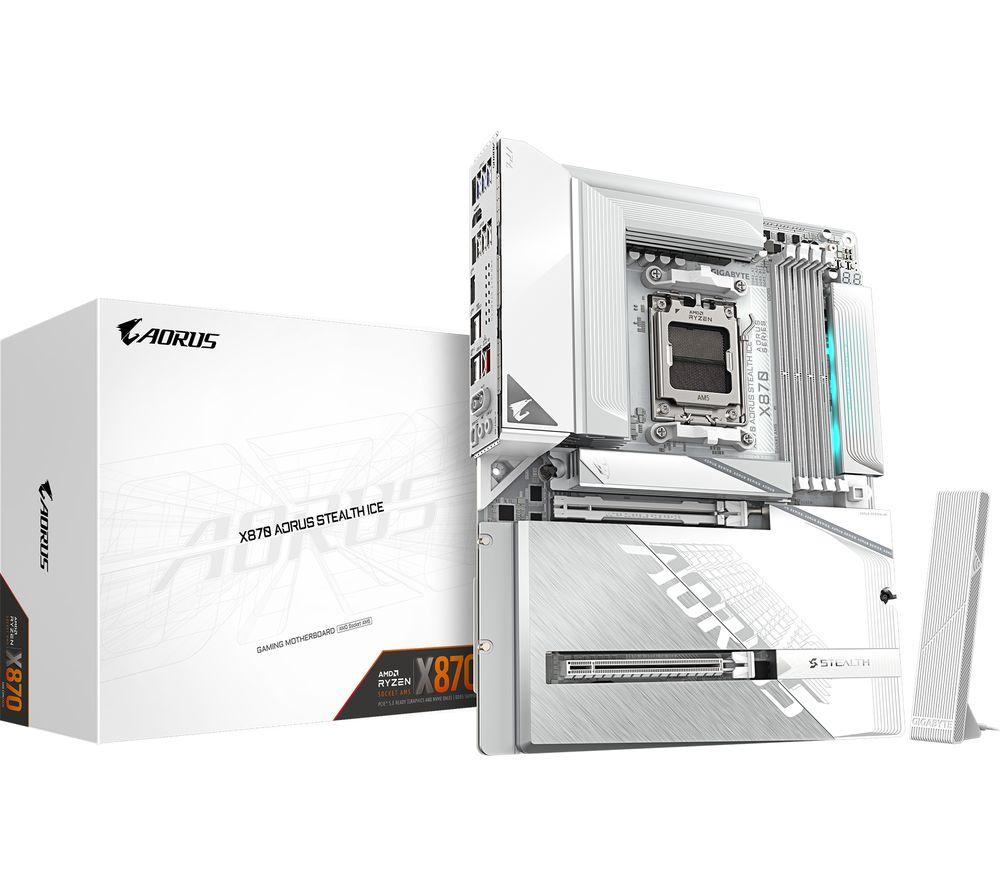

Box contents
- Gigabyte Aorus STEALTH ICE X870 AM5 Motherboard
- Antenna x 1
- SATA cables x 2
- G Connector x 1
- M.2 thick/thin rubber pads x 3
- Quick Installation Guide
- Manual
Weight
5.1 kg
Manufacturer’s guarantee
3 years
Dimensions
119 x 355 x 396 mm (H x W x D)
Colour
White
