GIGABYTE AORUS STEALTH X870 AM5 Motherboard

GIGABYTE AORUS STEALTH X870 AM5 Motherboard

Item No. 10297431

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFYCNTRL_BNPL12_GENERIC_1
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 754651

If you're building a high-performance setup, the Gigabyte X870 AORUS STEALTH motherboard gives you a solid base to start with. It supports AMD Ryzen 7000, 8000 and 9000 Series processors, so you've got plenty of power and room to upgrade over time. A 16+2+2 phase digital VRM design with advanced cooling keeps power stable, so your system runs smoothly even during long gaming sessions. With PCIe 5.0 and PCIe 4.0 support, you can install SSDs and next-gen components, helping reduce load times and keep everything running quickly.

Good to know

  • DDR5 RAM up to 256 GB lets you run large apps without slowdowns
  • X3D Turbo Mode boosts frame rates in supported games
  • Quad M.2 slots let you install multiple NVMe SSDs for storage expansion
  • EZ-Latch Plus design lets you install components without needing tools
  • Advanced thermal design helps manage heat when running demanding tasks
  • WiFi 7 and 5 GbE LAN
  • Includes USB-C, USB 3.2 and USB 2.0 ports
  • Bluetooth support

Technical specifications for GIGABYTE AORUS STEALTH X870 AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X870
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000 / 8000 & 9000 Series processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
- Fan cooling
- Liquid cooling
Operating systems supported
Windows 11 (64-bit)

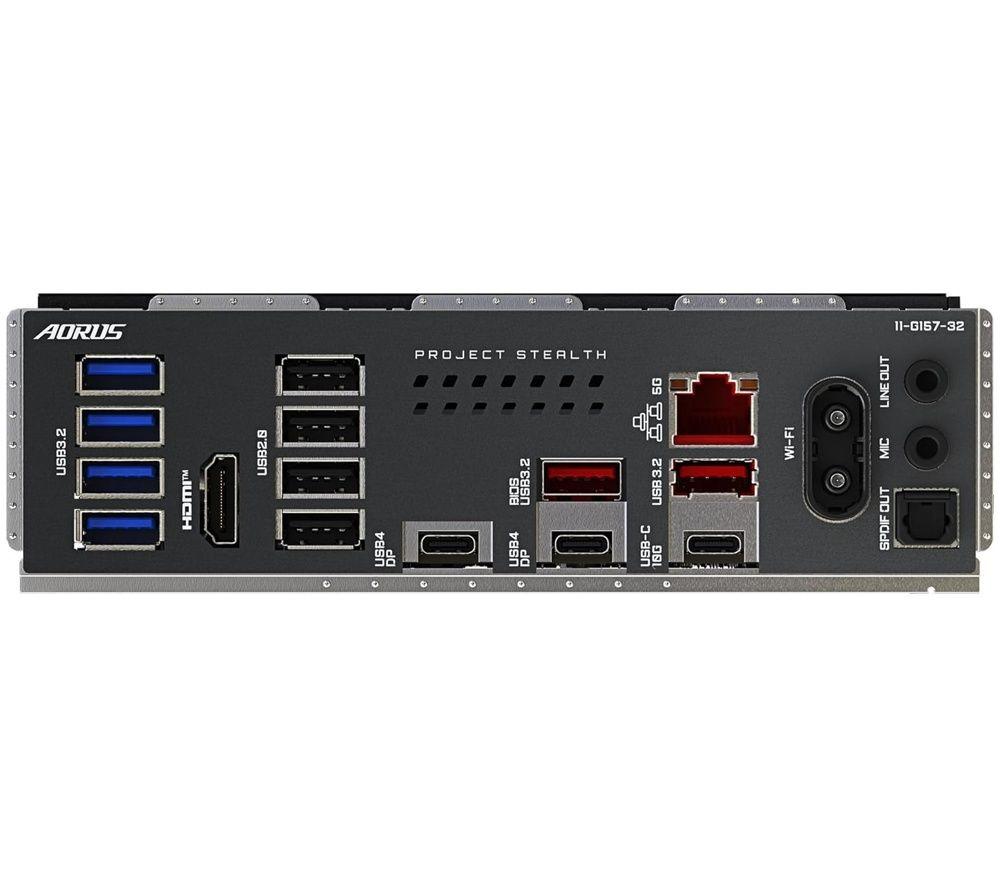

EXTERNAL CONNECTIVITY

Video output
HDMI x 1
LAN
Realtek 5GbE LAN chip (5 Gbps / 2.5 Gbps / 1 Gbps / 100 Mbps)
Audio
- Optical S/PDIF Out
- 3.5 mm jack x 2
- 7.1 HD Audio (Realtek ALC1220)
USB
- USB Type-C x 1
- USB Type-C x 2
- USB 3.2 Gen 1 x 4
- USB 2.0 / 1.1 x 4
Other external connections
- Qualcomm WiFi 7 QCNCM865
- Bluetooth 5.4

INTERNAL CONNECTIVITY

BIOS
- AMI UEFI BIOS
- SM BIOS
- ACPI
- DMI
- WfM
- PnP
Expansion slots
CPU:
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x16) x 8
- PCIe 4.0 (x16) x 4

Chipset:
- PCIe 4.0 (x16) x 4
Storage slots
- SATA x 2 (6 GB/s)
- M.2 x 4
Cooling
- CPU fan header x 1
- CPU fan/water cooling pump header x 1
- System fan headers x 4
- System fan/water cooling pump header x 2
Case
- Front panel header x 1
- Front panel audio header x 1
- Noise detection header x 1
- TPM header x 1
Buttons
- Reset
- Power
- Clear CMOS jumper
- Q-Flash Plus button
Power
- 24-pin ATX x 1
- 8-pin ATX (12 V) x 1
- 4-pin ATX (12V) x 1
Sensors
- Voltage detection
- Temperature sensor
- Fan speed sensor
- Water cooling flow rate sensor
Other internal connections
- Addressable RGB Gen2 LED strip headers x 3
- RGB LED strip header x 1
USB
- USB Type-C x 1
- USB 3.2 x 1
- USB 2.0 / 1.1 x 2

GENERAL

Box contents
- Gigabyte AORUS STEALTH X870 AM5 Motherboard
- WiFi Antenna
- Accessories
- Manual
Weight
4.42 kg
Manufacturer’s guarantee
3 years
Dimensions
305 x 244 x 80 mm (H x W x D)
Colour
Black
