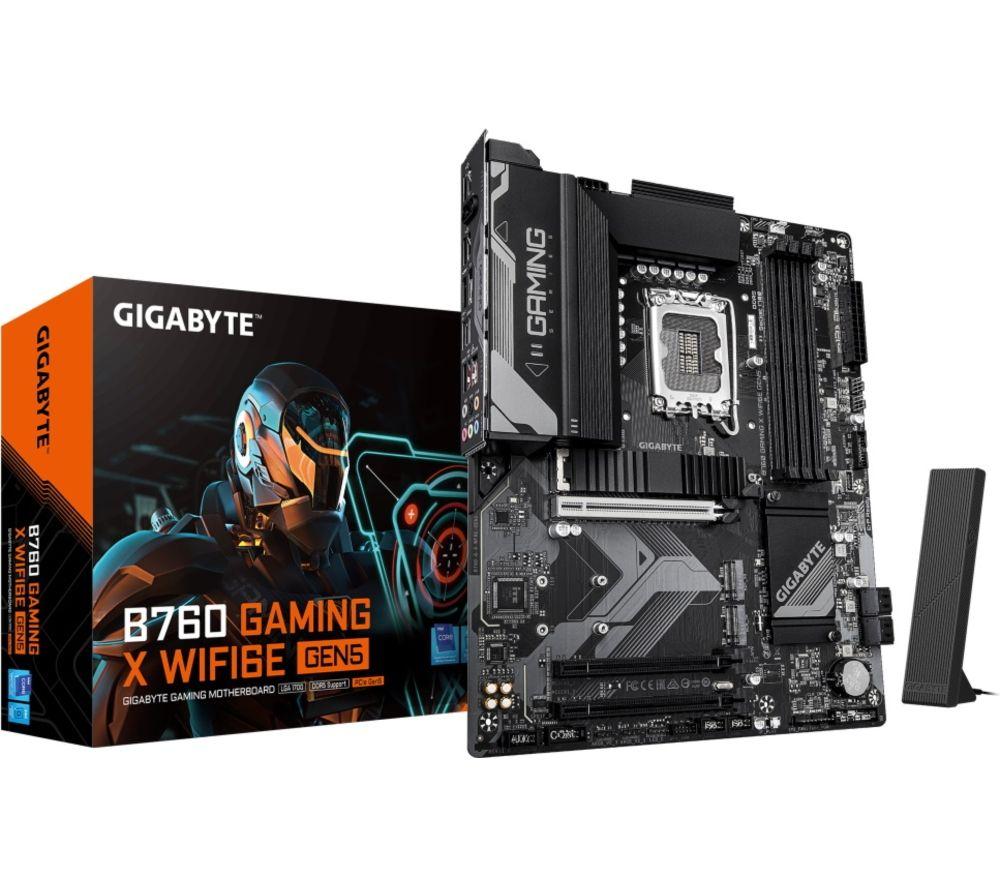

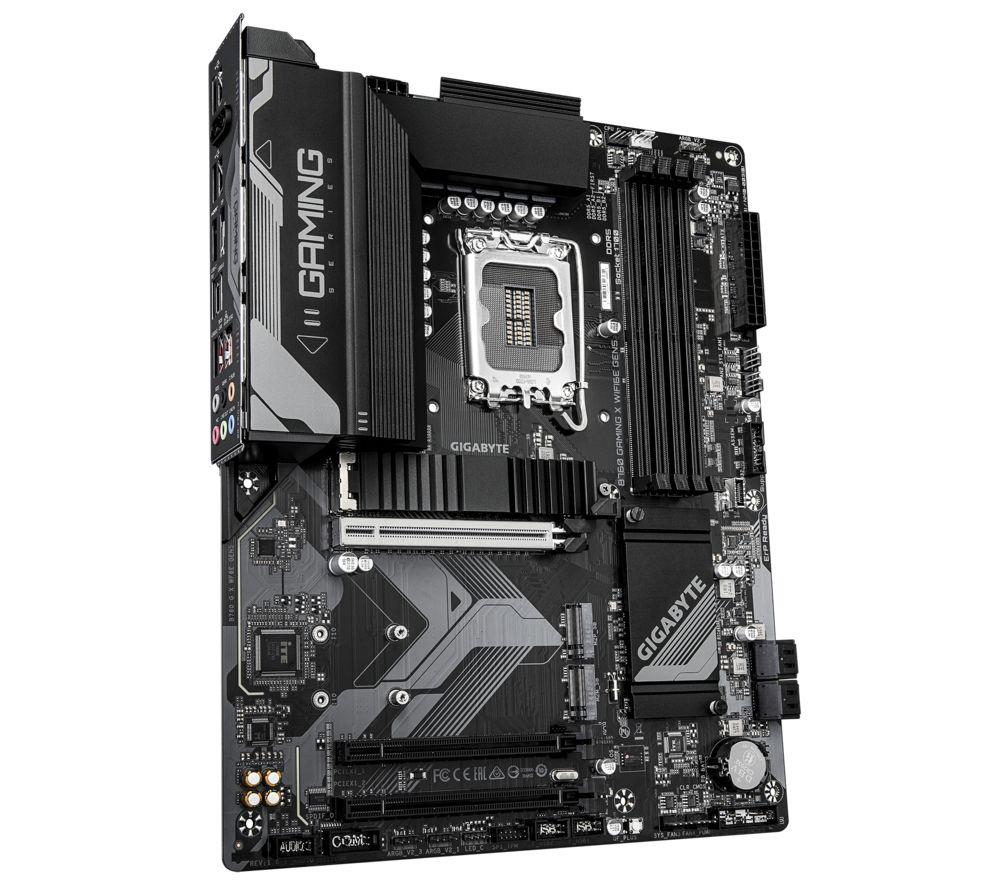

GIGABYTE B760 GAMING X WIFI6E GEN5 LGA1700 Motherboard

GIGABYTE B760 GAMING X WIFI6E GEN5 LGA1700 Motherboard

Item No. 10291917

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFYCNTRL_BNPL12_GENERIC_WK07 INFYCNTRL_FNDD_WK32
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® B760 Express
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® B760 Express
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 780993

If you want to build a proper compact machine, you need a solid base. This Gigabyte B760 GAMING X GEN5 Motherboard motherboard is ready for Intel® Core™ 14th, 13th, and 12th Gen processors. You can plug in up to 256 GB of DDR5 RAM and blaze through your workflows. The PCIe 5.0 x16 slots give your graphics card next-gen bandwidth. And the three PCIe 4.0 M.2 SSD slots let you install blazing fast drives for quick boots and snappy app launches.

Good to know

- With XMP support, you can overclock compatible DDR5 RAM up to 7600 MT/s, giving you extra performance when you need it
- The Smart Fan 6 system keeps your motherboard cool even with high-end components, thanks to multiple temperature sensors and hybrid fan headers
- To make building a PC easier, it's got EZ-Latch features for quick installation of M.2 drives and PCIe cards
- The VRM Thermal Armor Advanced and M.2 Thermal Guard keep your system running cool, even during intense gaming session

Technical specifications for GIGABYTE B760 GAMING X WIFI6E GEN5 LGA1700 Motherboard

OVERVIEW

Form factor
ATX
Chipset
Intel® B760 Express
Socket
Intel® LGA1700
Processor models supported
Intel® Core™ 14th/ 13th/ 12th generation / Pentium® Gold / Celeron® processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
- CPU fan
- CPU water pump
- System fans
- Water pump header
Operating systems supported
Windows 10 or later

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio
- 3.5 mm jack x 6
- Supports S/PDIF output
USB
- USB Type-C x 1
- USB 3.2 x 2
- USB 2.0 x 5
Other external connections
- Wi-Fi 6E antenna x 2
- Bluetooth 5.3

INTERNAL CONNECTIVITY

BIOS
- 256 Mbit flash x 1
- AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe 3.0 (x1) x 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 3
Case
- Front panel
- Front audio
- TPM header
- RGB headers
Buttons
- Q-Flash Plus
- Clear CMOS
- Reset jumper
Power
- 24-pin ATX x 1
- 8-pin ATX x 1
- 4-pin ATX x 1
Sensors
- Voltage
- Temperature
- Fan speed
- Water flow
- Fan fail warning
Other internal connections
- Addressable RGB Gen2 LED strip headers x 3
- RGB LED strip header x 1
- TPM header x 1
- Serial port header x 1
USB
- USB Type-C x 1
- USB 3.2 x 2
- USB 2.0 x 4

GENERAL

Box contents
- Gigabyte B760 GAMING X WIFI6E GEN5 LGA1700 Motherboard
- SATA cables x 2
- Antenna x 1
- M.2 screws
- One pack of M.2 rubber pads
- Manual
Weight
1.8 kg
Manufacturer’s guarantee
3 years
Dimensions
70 x 244 x 305 mm (H x W x D)
Colour
Black
