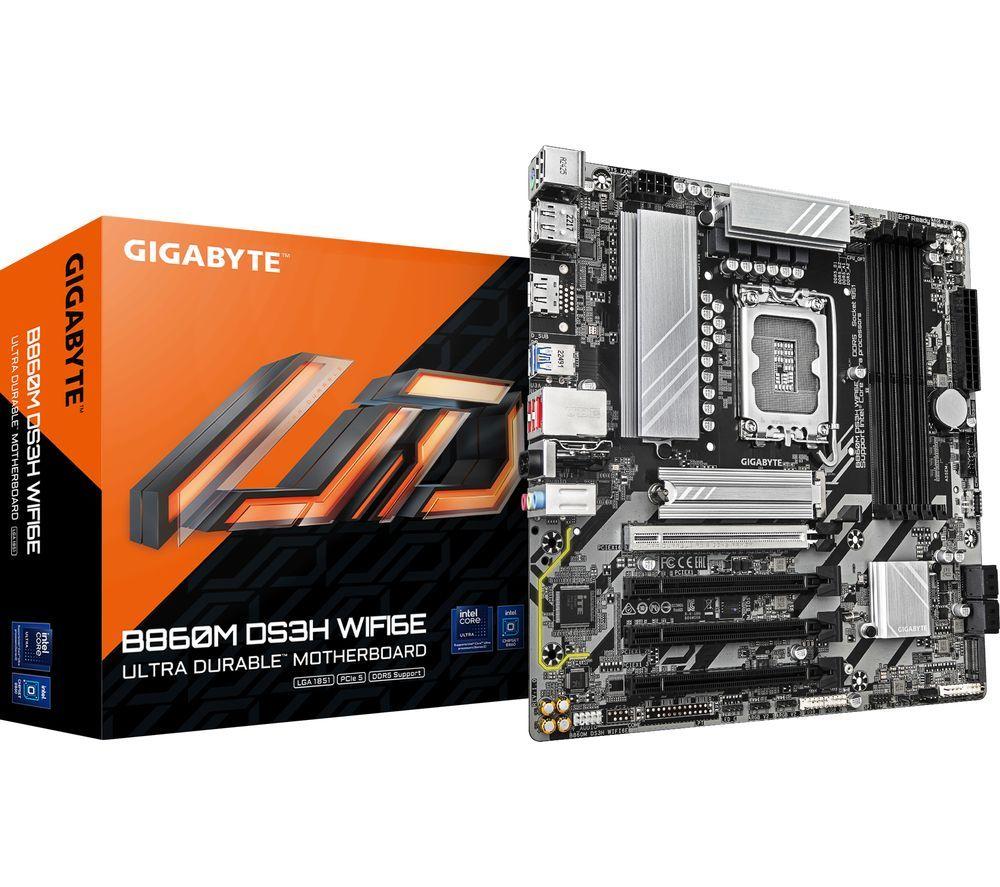

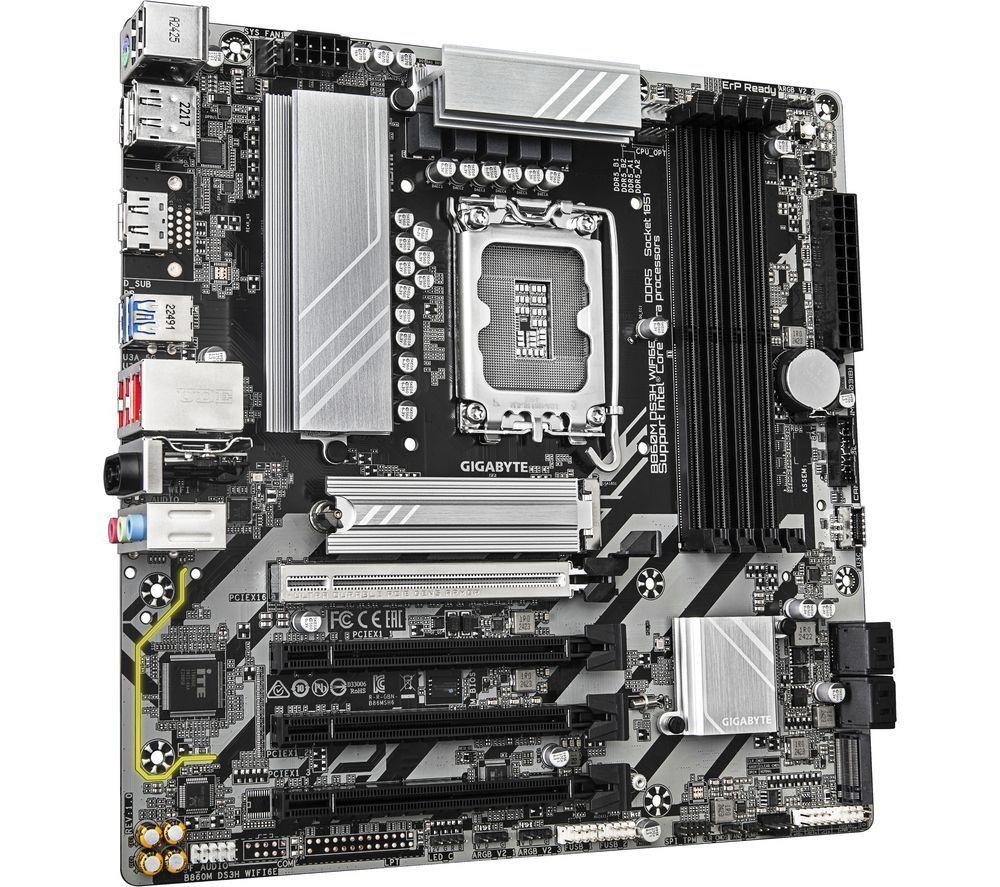

GIGABYTE B860M DS3H LGA1851 WiFi 6E Motherboard

GIGABYTE B860M DS3H LGA1851 WiFi 6E Motherboard

Item No. 10277527

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFY_BNPL12_GAMING_WK52_1 INFYCNTRL_FNDD_1
Form factor: microATX
Socket: Intel® 1851
Chipset: Intel® B860 Express
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: microATX
Socket: Intel® 1851
Chipset: Intel® B860 Express
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 682184

If you want to build a proper compact machine, you need a solid base. This Gigabyte B860M DS3H motherboard is ready for Intel® Core™ Ultra processors (Series 2). You can plug in up to 256 GB of DDR5 RAM and blaze through your workflows. With the Hybrid VRM Design you can safely overclock the CPU and push it to the max. And you can forget about slow loading. The PCIe 5.0 M.2 SSD slot lets you install a blazing fast drive.

Good to know

- With Infinite Memory Performance you can overclock compatible DDR5 RAM up to 9066 MT/s
- The advanced thermal design keeps your motherboard cool even with high-end components
- To make building a PC easier, it's got user-friendly EZ-latches for some of the components
- Connect loads of LEDs to create unique custom lighting controlled by Gigabyte RGB Fusion
- With WiFi 6E and 2.5 GB Ethernet,you'll have super-fast and rock-solid internet connection

Technical specifications for GIGABYTE B860M DS3H LGA1851 WiFi 6E Motherboard

OVERVIEW

Form factor
Micro ATX
Chipset
Intel® B860 Express
Socket
Intel® LGA1851
Processor models supported
Intel ® Core™ Ultra Processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
Comprehensive Thermal

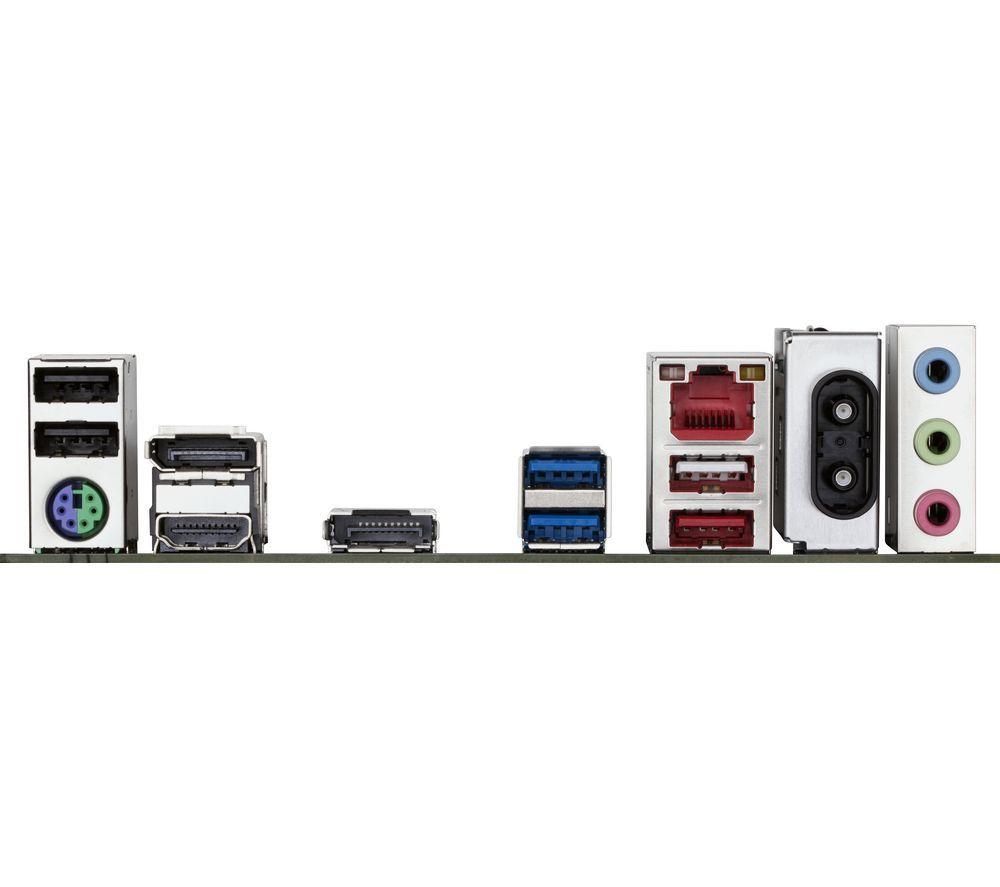

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 2
LAN
2.5 GbE LAN
Audio
Audio CODEC x 3
USB
USB 2.0 x 3
Other external connections
- USB 3.2 Gen 2 Type-A port x 1
- USB 3.2 Gen 1 port x 2
- Antenna connector (2T2R) x 2
- RJ-45 port x 1

INTERNAL CONNECTIVITY

BIOS
- 256 Mbit flash
- UEFI AMI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x16) x 3
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 2
Buttons
Q-Flash Plus
Power
- 24-pin ATX x 1
- 8-pin ATX x 2

GENERAL

Box contents
- Gigabyte WiFi6E B860M DS3H LGA1851 Motherboard
- SATA cables x 2
- M.2 screws
- Pack of M.2 thick/thin rubber pads x 1
- Antenna x 1
- Quick installation guide
- User manual
Software included
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Weight
1.68 kg
Manufacturer’s guarantee
3 years
Dimensions
74 x 244 x 244 mm (H x W x D)
Colour
Silver
