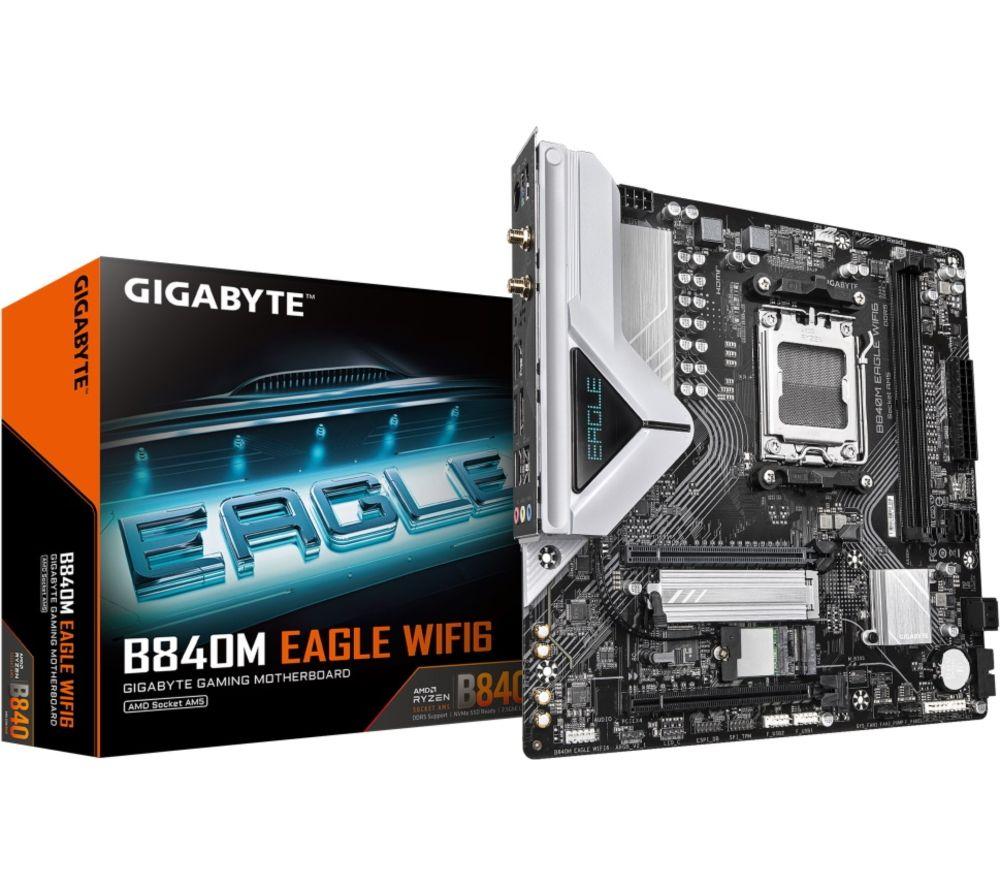

GIGABYTE Eagle WiFi6 B840 AM5 Motherboard

GIGABYTE Eagle WiFi6 B840 AM5 Motherboard

Item No. 10291915

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFYCNTRL_BNPL12_GENERIC_WK07 INFYCNTRL_FNDD_WK32
Form factor: microATX
Socket: AMD AM5
Chipset: AMD B840
Memory: DIMM x 2 / Max RAM: 128 GB DDR5
3 year guarantee
Form factor: microATX
Socket: AMD AM5
Chipset: AMD B840
Memory: DIMM x 2 / Max RAM: 128 GB DDR5
3 year guarantee
Product code: 778868

If you want to build a proper machine, you need a solid base. This Gigabyte motherboard is ready for 9000 Series AMD Processors. It's got a X3D Turbo Mode, which lets you squeeze out max FPS with a single button. You can plug in up to 128 GB of DDR5 RAM and blaze through your workflows. With the Twin Digital VRM Design you can safely overclock the CPU and push it to the max.

Good to know

- With PCIe 5.0 you can have high-speed storage that won't make you wait around
- With AMD EXPO you can overclock compatible DDR5 RAM up to 7600 MT/s
- Choose either water or fan cooling, this motherboard lets you do both
- WiFi 6 gives you incredibly fast wireless internet, and there's 2.5 Gigabit Ethernet, too

Technical specifications for GIGABYTE Eagle WiFi6 B840 AM5 Motherboard

OVERVIEW

Form factor
micro ATX
Chipset
AMD B840
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000, 8000, & 7000 Series Processors
Memory slots
2 x DDR5 (Max RAM: 128 GB)
Memory standard
DDR5
Cooling features
- Fan cooling
- Water cooling
Operating systems supported
Windows 10 (64-bit) or later

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 2.5 GbE LAN chip
Audio
- Realtek® Audio CODEC
- S/PDIF supported
- 3.5 mm jack x 3
USB
- USB Type-C x 1
- USB 2.0 x 8
- USB 3.0 x 4
Other external connections
- PS/2 combo port
- SMA antenna connectors (Wi-Fi) x 2

INTERNAL CONNECTIVITY

BIOS
- AMI UEFI BIOS
- 256 Mbit flash
- ACPI 5.0, DMI 2.7
- PnP 1.0a
- SM BIOS 2.7
Expansion slots
- PCIe 3.0 x 4 (x16) x 1
- PCIe 4.0 (x16) x 1
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 2
Cooling
- CPU fan header x 1
- CPU fan/water cooling pump header x 1
- System fan header x 1
- System fan/water cooling pump header x 1
Case
- Front panel header (Power LED, HDD LED, Power SW, Reset SW)
- Front panel audio header
- RGB strip headers
Buttons
- Power button
- Q-Flash Plus
- Reset jumper
- Clear CMOS jumper
Power
- 24-pin EATX x 1
- 8-pin ATX x 1
Sensors
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
Other internal connections
- Addressable RGB LED strip headers x 2
- RGB LED strip header x 1
- TMP header
- USB headers
USB
- USB Type-C x 1
- USB 3.2 Gen 1 x 1
- USB 2.0 x 1

GENERAL

Box contents
- Gigabyte Eagle WiFi6 B840 AM5 Motherboard
- Manual
- Quick Installation Guide
- Antenna x 2
- SATA Cables x 2
- M.2 thick/thin rubber pads pack x 1
Weight
1.30 kg
Manufacturer’s guarantee
3 years
Dimensions
70 x 244 x 244 mm (H x W x D)
Colour
Black
