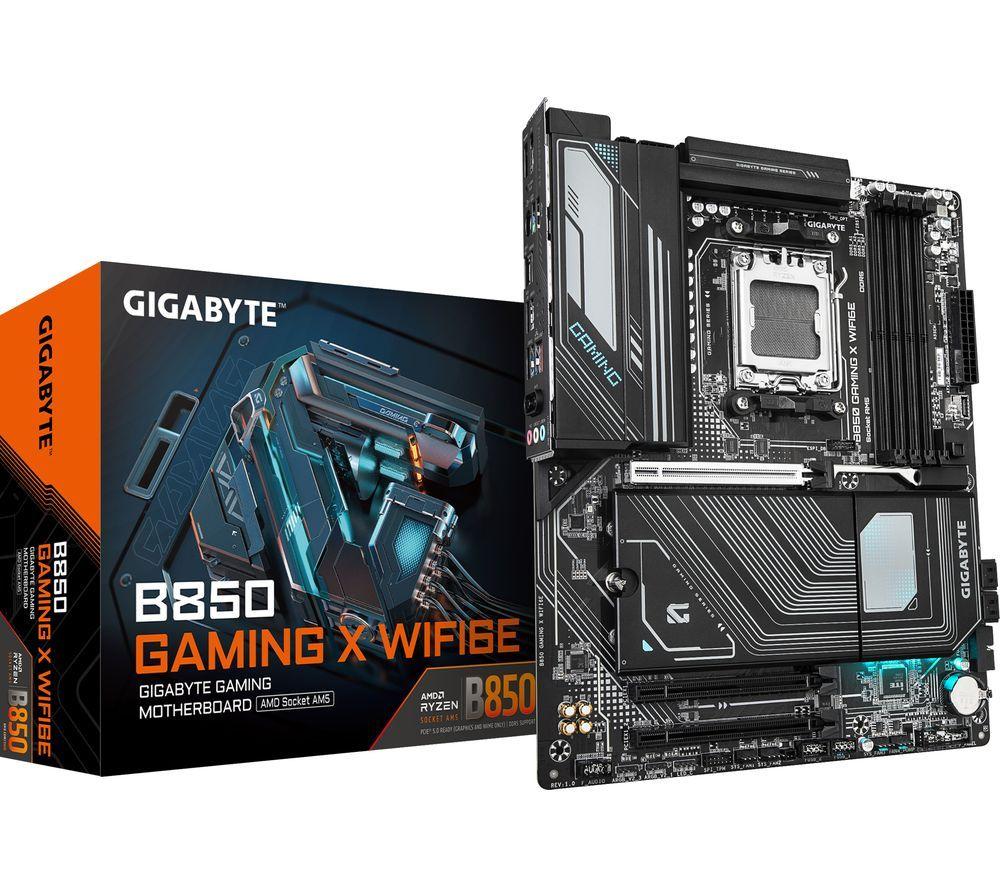

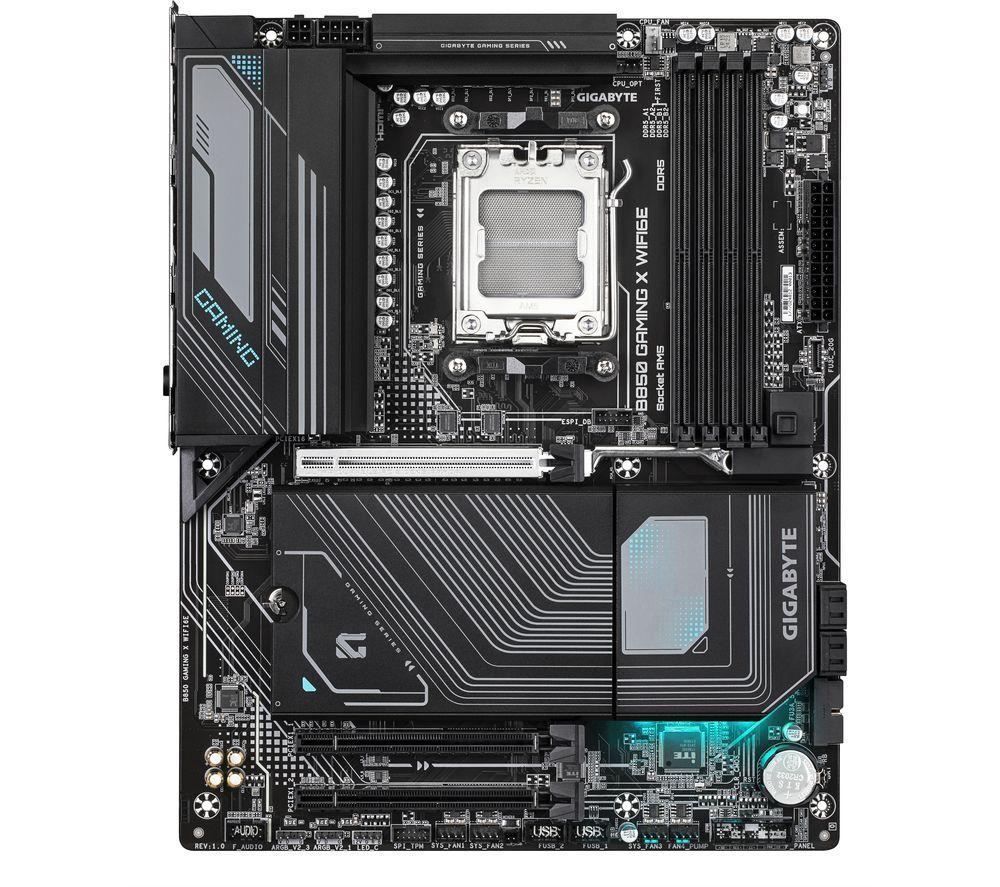

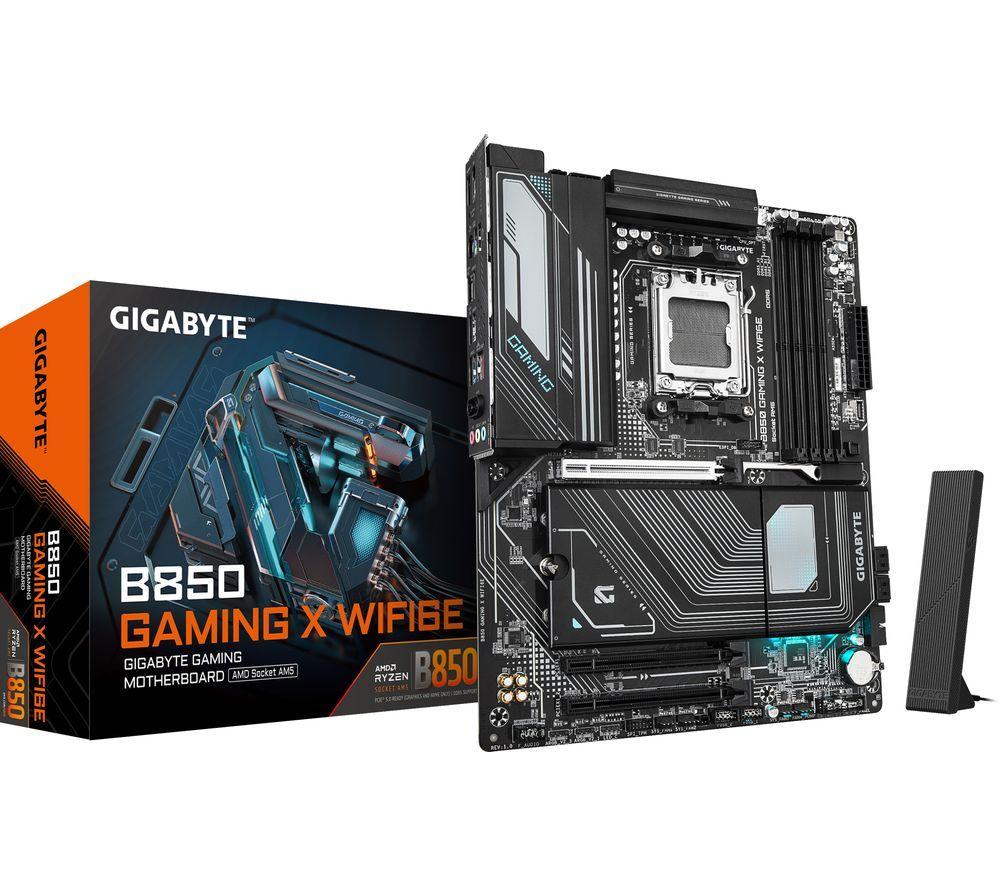

GIGABYTE Gaming X WiFi 6E B850 AM5 Motherboard

GIGABYTE Gaming X WiFi 6E B850 AM5 Motherboard

Item No. 10277414

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

5/5 1 reviews
INFY_BNPL12_GAMING_WK52_1 INFYCNTRL_FNDD_1
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 796494

This Gaming X motherboard is the perfect base for your PC. It'll let you squeeze every bit of power from an AMD 9000 Series processor - it's specifically optimised for X3D processors. The X3D Turbo Mode lets you push out max FPS with a single click. There are 4 DIMM slots allowing you to plug in up to 256 GB DDR5 RAM - that's plenty even for the most powerful systems. And you can forget about slow loading. The PCIe 5.0 M.2 SSD slots let you install blazing fast drives.

Good to know

- With WiFi 6E and 2.5 GbE LAN on-board you'll have a rock solid and fast internet connection
- The WiFi EZ-Plug makes it easy to connect your WiFi antenna
- The Advanced Thermal Design keeps your motherboard cool even with high-end components
- With the Twin Digital VRM Design you can safely overclock the CPU and push it to the max
- Smart Fan 6 gives you precision control over your cooling
- With AMD EXPO you can overclock compatible DDR5 RAM up to 8200 MT/s
- To make building a PC easier, it's got user-friendly EZ-latches for some of the components

Technical specifications for GIGABYTE Gaming X WiFi 6E B850 AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD B850
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000, 8000 & 9000 Series processors
Memory slots
4 x DDR5 (Max RAM: 256 GB)
Memory standard
DDR5
Operating systems supported
- Windows 11 (64-bit)
- Windows 10 (64-bit)

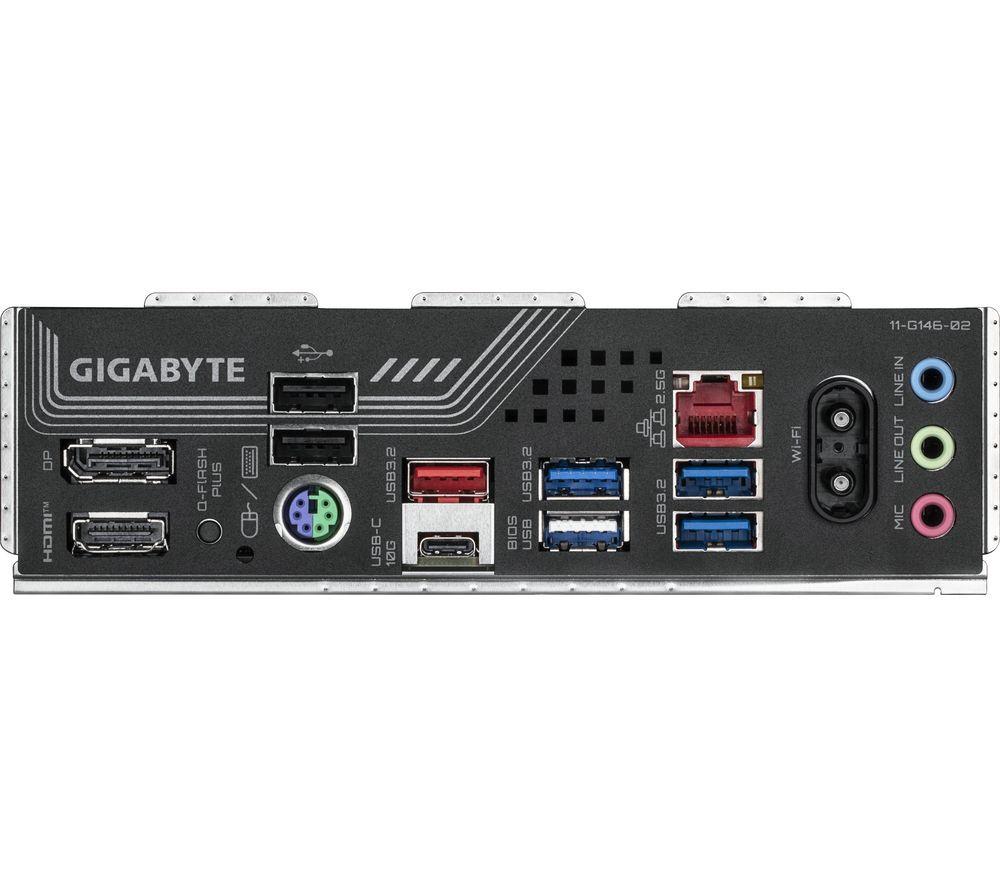

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps /1 Gbps /100 Mbps)
Audio
Audio jacks x 3
USB
- USB Type-C port, with USB 3.2 Gen 2 support x 1
- USB 3.2 Gen 2 Type-A port (red) x 1
- USB 3.2 Gen 1 ports x 3
- USB 2.0/1.1 ports x 3

INTERNAL CONNECTIVITY

BIOS
- UEFI AMI BIOS
- 256 Mbit flash x 1
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe Gen 4.0 (x8) x 1
- PCIe Gen 4.0 (x4) x 1
- PCI Express (x16) x 2
Storage slots
- SATA x 4
- M.2 x 3
Cooling
- CPU fan header x 1
- CPU fan/water cooling pump header x 1
- System fan headers x 3
- System fan/water cooling pump header x 1
Buttons
- Q-Flash Plus x 1
- Reset jumper x 1
- Clear CMOS jumper x 1
Power
- 24-pin ATX x 1
- 8-pin ATX x 1
- 4-pin ATX x 1
Sensors
- Temperature detection
- Voltage detection
- Fan speed sensor
- Thermal sensor
- Water cooling flow rate sensor
- Fan fail warning sensor
Other internal connections
- Front panel header x 1
- Front panel audio header x 1
- Addressable RGB Gen2 LED Strip Headers x 3
- RGB LED Strip Header x 1
- Trusted Platform Module header x 1
USB
- USB 3.2 Gen 2 Type-C port x 1
- USB 3.2 Gen 2 Type-A port (red) x 1
- USB 3.2 Gen 1 Type-A port x 1
- USB 2.0/1.1 Type-A ports x 3

GENERAL

Box contents
- Gigabyte Gaming X Wi-Fi 6E B850 AM5 Motherboard
- SATA cable x 2
- WiFi antenna x 1
- G connector x 1
- User manual
Software included
- Norton® Internet Security (OEM version)
- LAN bandwidth management
Weight
1.31 kg
Manufacturer’s guarantee
3 years
Dimensions
70 x 244 x 305 mm (H x W x D)
Colour
Black
