INSTAGEN 435 W Plug-in Solar Panel & Mounting Kit - Pack of 2
435 W plug-in solar panel
Includes flexible mounting kit
High-efficiency 800 VA microinverter
Bifacial panel captures direct & reflected sunlight
Durable, weather-resistant construction
Easy to install anywhere
Product code: 452636

The InstaGen Plug-in Solar Panel Kit is best for homeowners who want to generate their own electricity without a complicated installation. Its plug-in design makes setup straightforward, while the flexible mounting system lets you install it in gardens, on balconies, fences or walls.

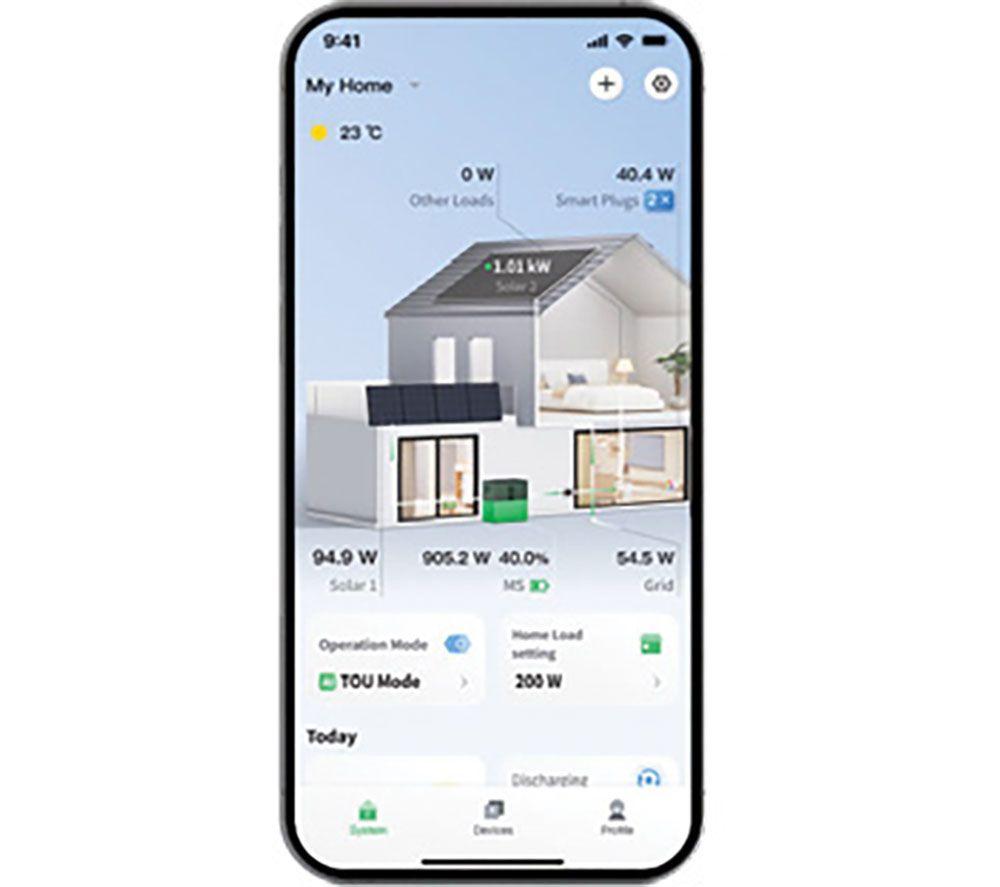

Plug in and go. Its plug-in design with built-in WiFi and Bluetooth means setup is quick and easy. Once connected, it feeds power directly into your household system through a standard wall socket.

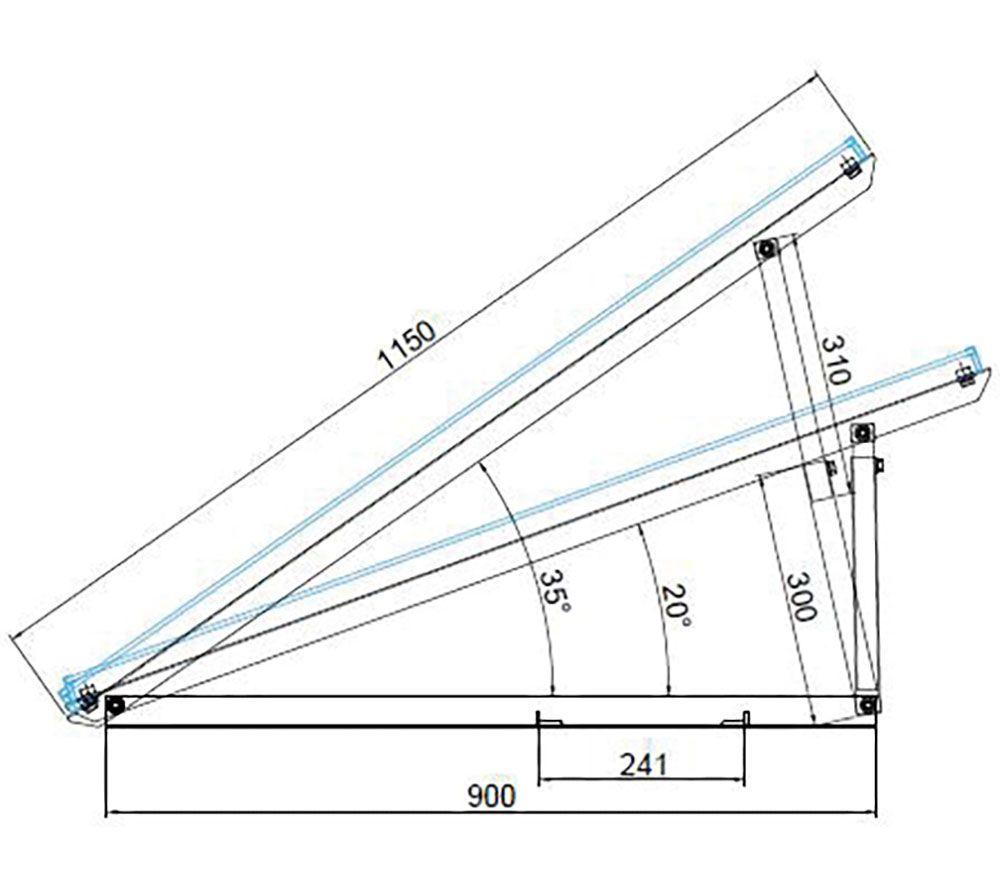

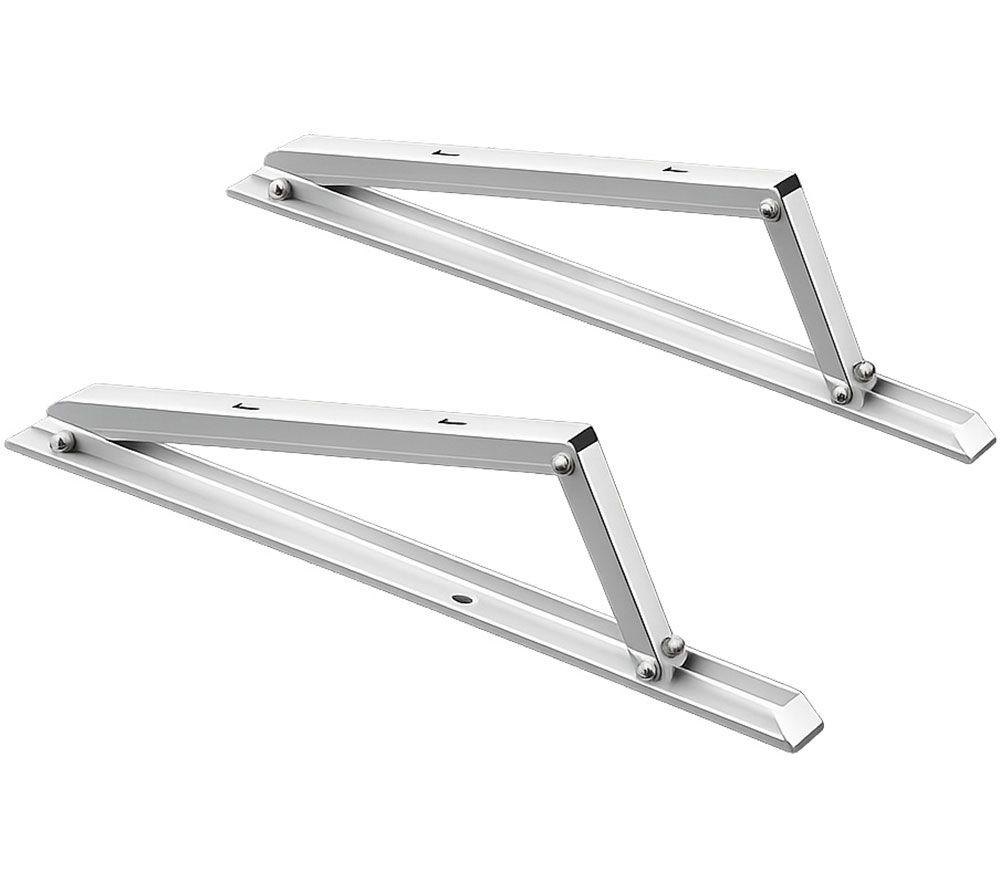

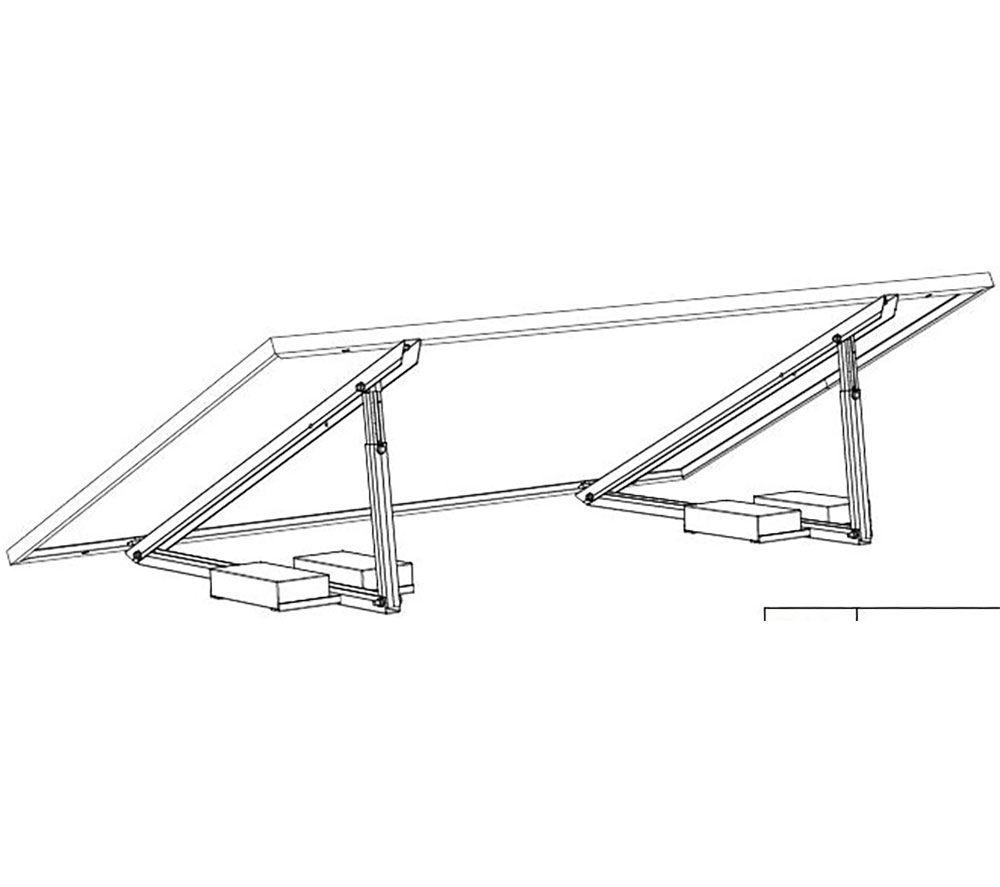

Flexible installation options. Whether you have a balcony, garden, railing, fence or wall, the adjustable mounting frame gives you plenty of options. The tilt angle can be adjusted manually, helping you capture more sunlight throughout the day.

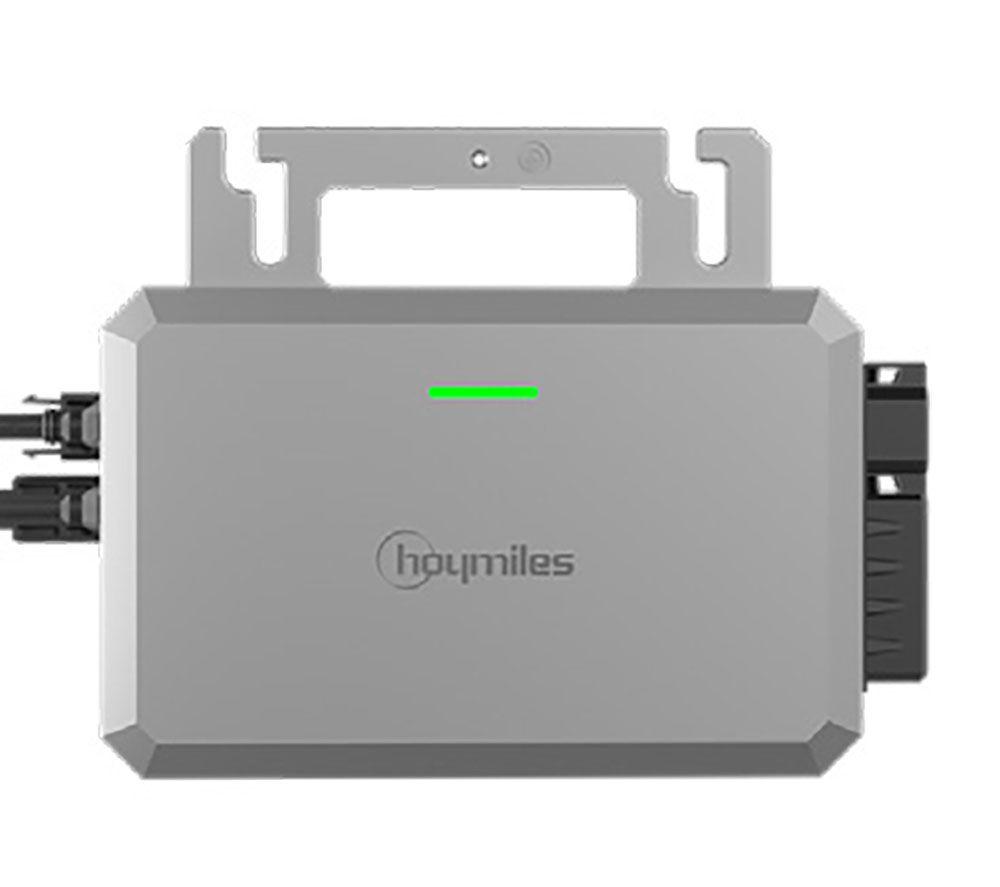

Get more from the energy you generate. The 800 VA microinverter converts the electricity produced by the panel into usable power for your home. With up to 97% peak efficiency, it maximises the amount of energy available from every sunny day.

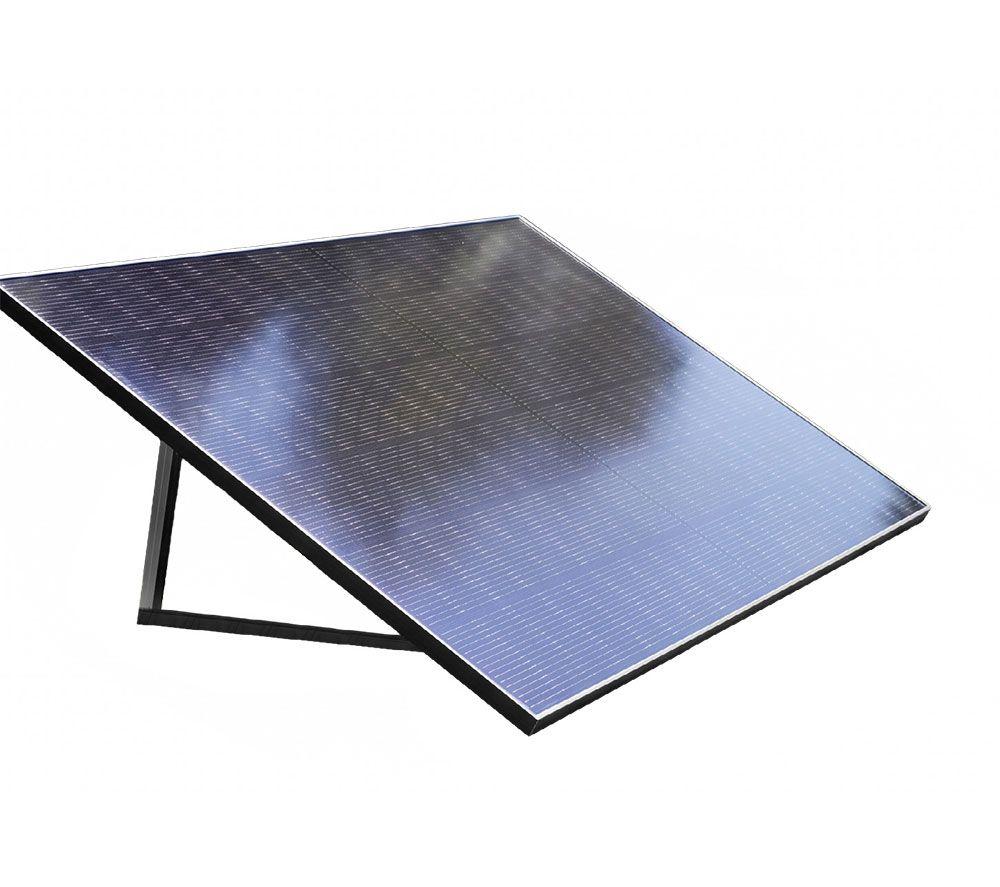

Powerful solar performance. The 435 W bifacial solar panel generates electricity from both direct and reflected sunlight. It helps increase overall energy generation throughout the day, especially in bright outdoor spaces.

No permanent changes required. The system doesn't need any major structural modifications, so it's ideal for people who may move home in the future. The kit can be dismounted and reinstalled at another suitable property when needed.

Built for UK conditions. The solar panel is durable, weather-resistant and designed to perform reliably in the British climate. That means you won't be left in the dark when the weather takes a turn.

Tech explained

Traditional solar panels only generate electricity from sunlight hitting the front. This bifacial panel can also capture reflected light on the rear side. That means it can make use of sunlight bouncing off surfaces such as paving, decking or light-coloured ground, helping to increase energy production.


Please note:
This kit is designed for connection to a suitable outdoor socket installed and certified by a qualified electrician. Installation must follow the supplied manual, local electrical regulations and all safety guidance. Do not use damaged cables, plugs or connectors.

Technical specifications for INSTAGEN 435 W Plug-in Solar Panel & Mounting Kit - Pack of 2

GENERAL

Dimensions
- Solar panel: 1724 x 1134 x 30 (H x W x D)
- Microinverter: 213 × 182.5 × 36.5 mm (H x W x D)
- Universal solar bracket: 1195 x 160 x 75 mm (H x W x D)
Manufacturer’s guarantee
- 12 year guarantee
- 30 year linear power warranty
Weight
- Solar panel: 25.1 kg
- Microinverter: 2.1 kg
Box contents
- Instagen 435 W Plug-in Solar Panel x 2
- Mounting Kit
- Microinverter
Power
- Mains power
- Maximum Power Watts-Pmax (Wp): 435 W
- Two panels connected to one microinverter can generate up to 800 W

OVERVIEW

Type
Plug-in solar panel kit
Compatibility
- Balconies
- Gardens
- Railings
- Fences
- Walls
Colour
Black
Material
- Front glass: 2 mm tempered glass
- Back glass: 2 mm tempered glass
- Encapsulant material: POE/EVA
- Frame: Anodised Aluminium Alloy
Other features
- Photovoltaic Technology cable 4 mm2
- Cable length: 350 mm or customised length
- 3/6 Bypass Diodes
- Junction box IP68 rating
- N-Type TOPCon Monocrystalline 182 x 91 mm solar cells
- 108 cells (6 x 18) cell orientation
