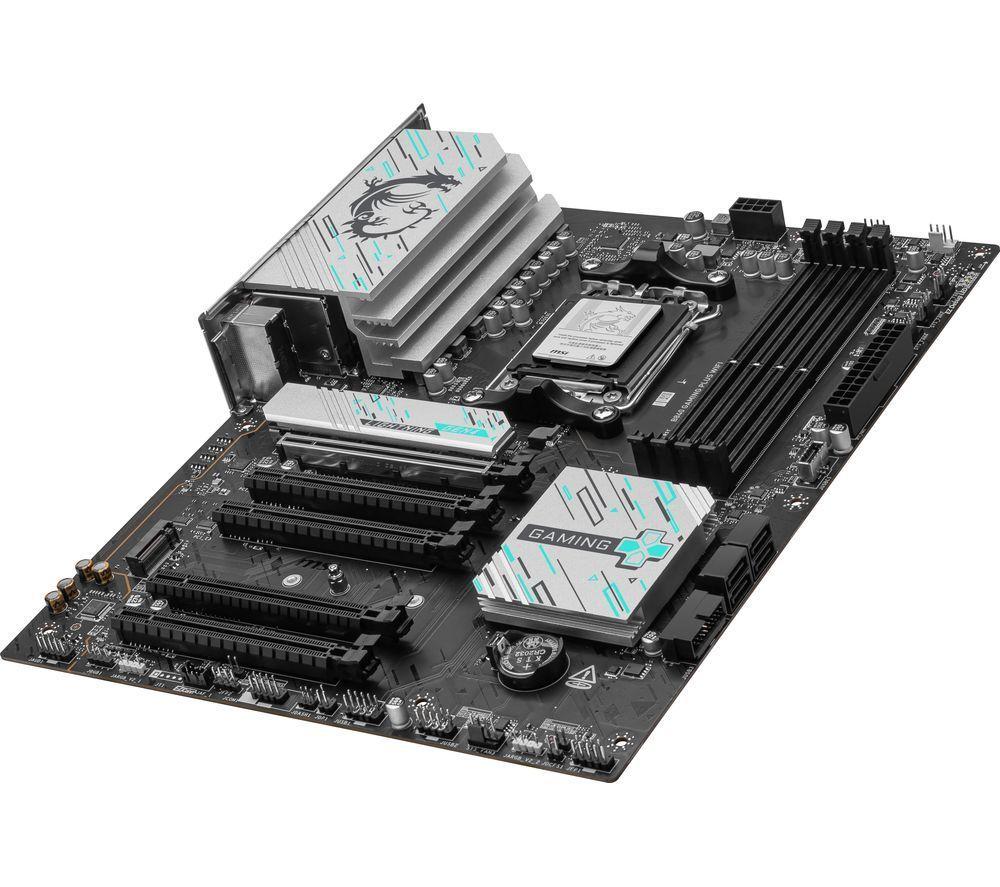

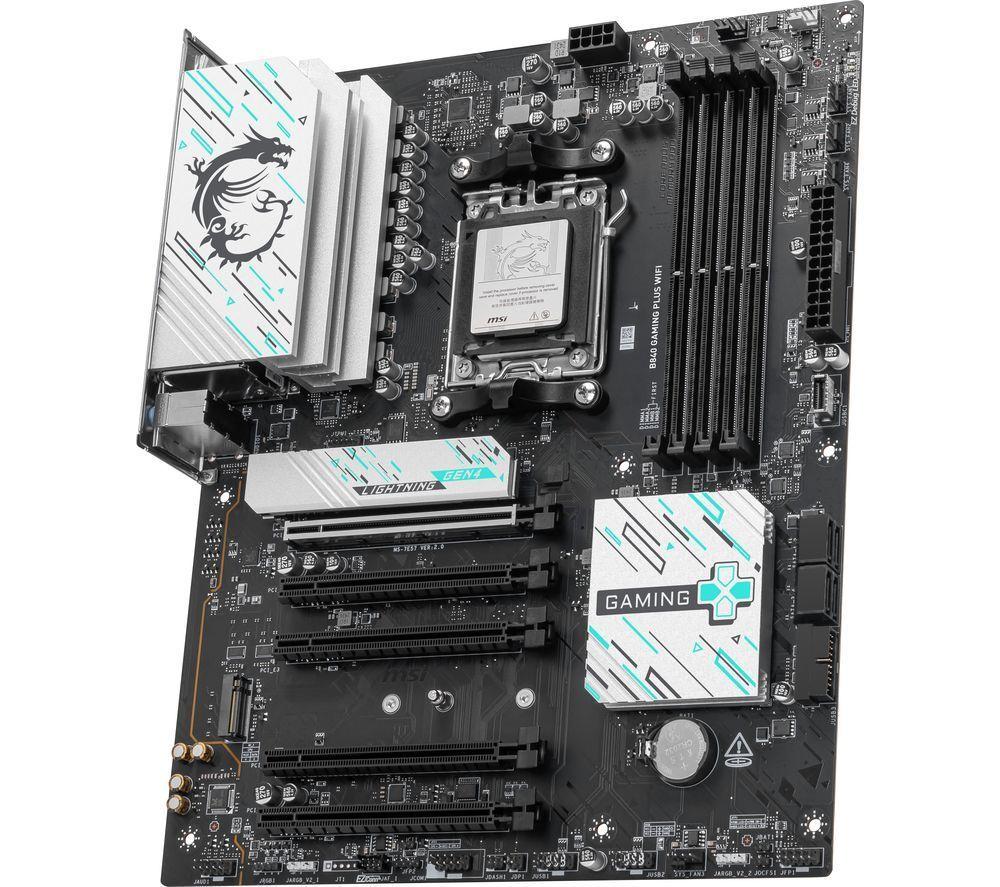

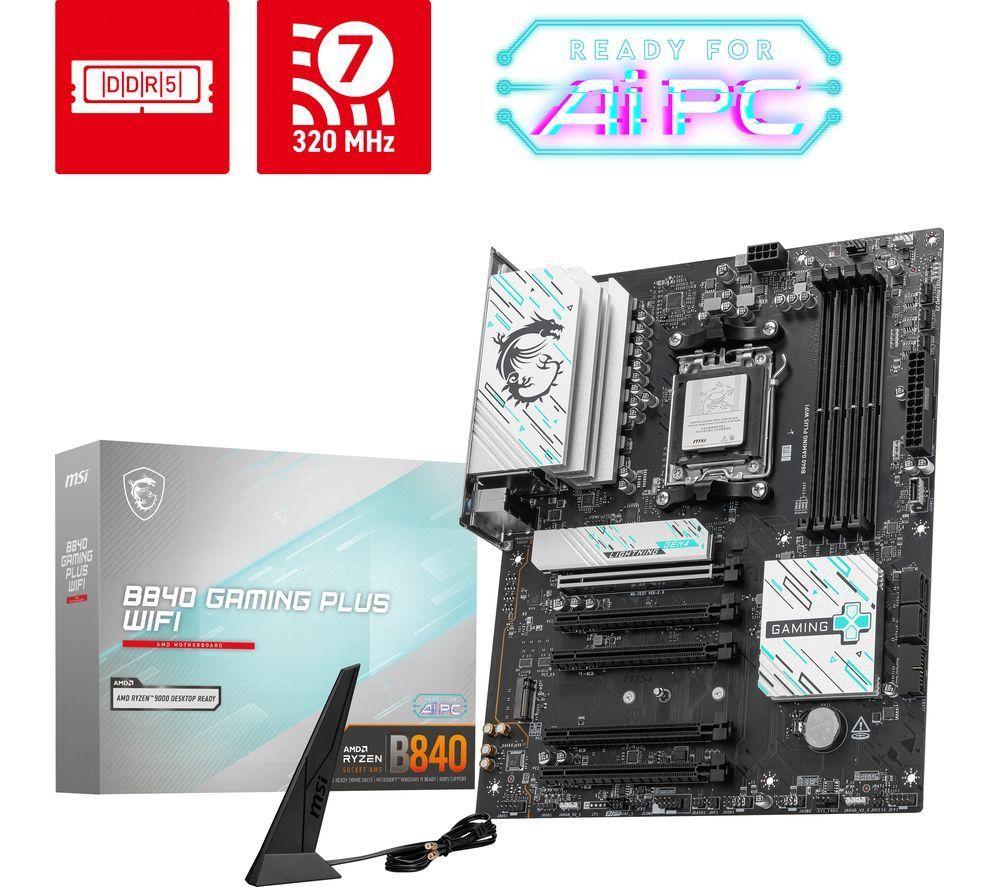

MSI B840 Gaming Plus WiFi AMD Motherboard

MSI B840 Gaming Plus WiFi AMD Motherboard

Item No. 10277381
INFYCNTRL_BNPL12_CG_WK43_Components COM_WK32_PS_COMPONENTS_PERIPHERALS_DATA_FNDD
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B840
3 year guarantee

Free Next Day Delivery (All day 8am-8pm) on selected Gaming

£149.99

Spread the cost with Currys flexpay

Learn more
icon-pound

Your available credit to spend: -1.0

Make monthly payments

From £6.07 per month for 36 months*

Or buy now, pay later

Pay as much or as little as you like for 6 months. Settle in full by 23 November 2025 & pay no interest

*Illustrative example: Credit amount £149.99. Pay 36 monthly payments of £6.07. Total amount payable £218.52. The interest rate for this purchase is 29.9%.

Representative example: Rate of interest 29.9% (variable). 29.9% APR representative (variable). Assumed Credit Limit £1,200.

Credit offers require a Currys flexpay account. With a Currys flexpay account you get a credit limit that you can use for future purchases at your standard flexpay interest rate.
Your personalised APR will be set by Creation Consumer Finance Ltd and will depend on your individual circumstances. Monthly prices shown reflect a 29.9% Representative APR (variable) excluding interest free or low interest offers.
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later
Check stock in your area
store Delivery Delivery available Checking Stock...
store collection FREE in-store collection in as little as 1 hour Checking Stock...

Delivery to:

Select your preferred delivery option at checkout
Change your location

Want FREE delivery?

Free
Free
open calendar

Collection available:

Change your location

What you’ll need to make it even better

Form factor: ATX
Socket: AMD AM5
Chipset: AMD B840
3 year guarantee
Product code: 682838

Building a compact desktop PC? Start off strong with this ATX board from MSI. It works with AMD 9000, 8000 & 7000 Series processors, giving you loads of choices. so it's designed for the future of AI computing. Add up to 256 GB of DDR5 RAM and blaze through your workflows. And with PCIe 4.0 and dual M.2 slots, you can pop in high-speed SSDs that won't make you wait around.

Good to know

- With WiFi 7 and 2.5 Gig Ethernet you'll have super-fast and rock-solid internet connection
- The advanced thermal design provides more stable power, so you can safely overclock the CPU and push it to the limit
- Say goodbye to slow loading times - the PCIe 4.0 M.2 SSD slots let you install a super-fast drive
- With the extended heatsink and M.2 Thermal Frozr Guards it's ready to keep cool even a high-performance setup
- To make sure your hardware stays cool under load, there are extended PWM heatsinks


Technical specifications for MSI B840 Gaming Plus WiFi AMD Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD B840
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000, 8000 & 7000 Series
Memory slots
4 x DDR5 (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
- Audio Boost
- Wi-Fi 7
- Latest DDR5 memory
- Lightning Gen4 solution
- Extended heatsink design
- EZ M.2 shield frozr II
- EZ PCIe Clip II
- Pre-installed I/O shielding
- 2.5G network solution
- Dual M.2 connectors
Operating systems supported
Windows 10 or later

EXTERNAL CONNECTIVITY

Video output
HDMI x 1
Audio
3.5 mm jack x 3
USB
- USB 2.0 x 4
- USB Type-C x 1
Other external connections
- Bluetooth v5.4
- Wi-Fi 7

INTERNAL CONNECTIVITY

BIOS
AMI BIOS
Expansion slots
- PCIe 4.0 x16 slot x 1
- PCIe 3.0 x16 slot x 1
- PCIe 3.0 x1 slots x 3
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 2
Cooling
- CPU fan 4-pin x 1
- Case fan 3-pin x 4
Case
- Power LED
- HDD LED
Buttons
- Clear CMOS
- Flash BIOS
Power
- 24-pin ATX x 1
- 8-pin ATX 12 V x 1
Sensors
- Thermal sensor x 1
- Fan speed sensor x 1
Other internal connections
- RGB strip header
- EZ Debug LED
USB
- USB 10Gbps (1 Type-A + 1 Type-C) x 2
- USB 5Gbps (4 Type-A + 1 Type-C) x 5
- USB 2.0 x 8

GENERAL

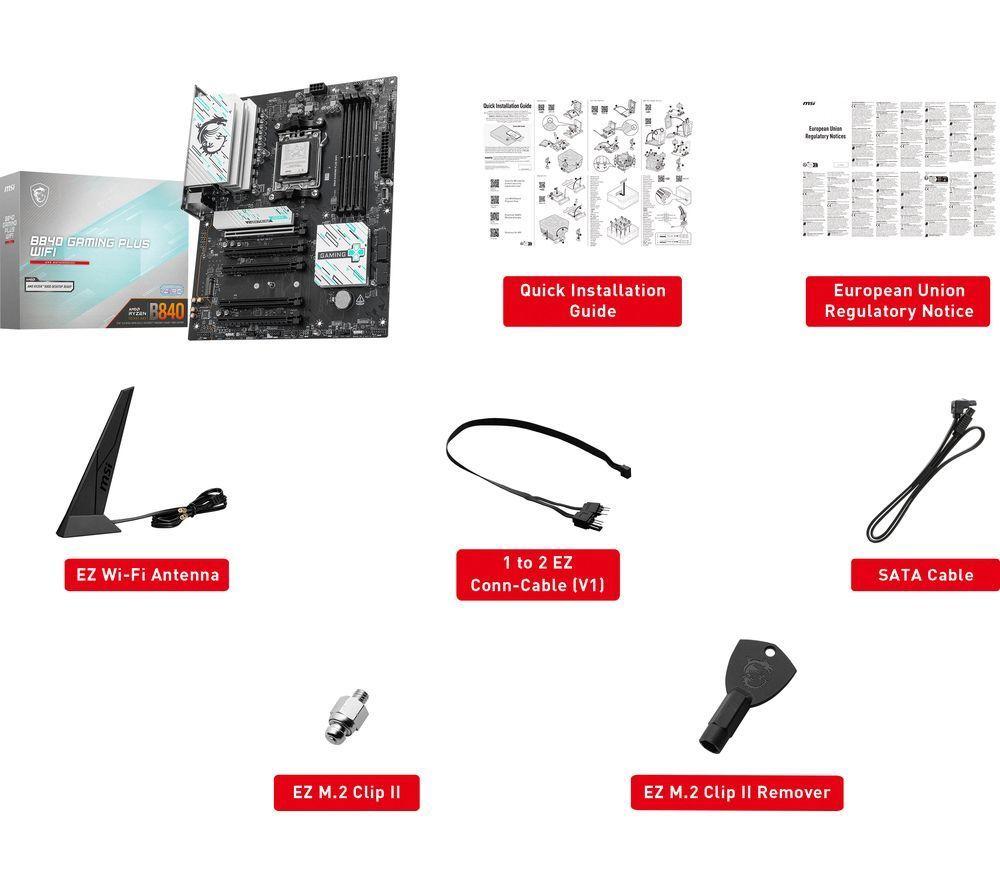

Box contents
- MSI B840 Gaming Plus WiFi AMD Motherboard
- Quick installation guide
- EZ Wi-Fi antenna
- SATA cable
- EZ M.2 clips
- EZ M.2 Clips remover
- 1 to 2 EZ Conn-cable (V1)
Software included
Installation software
Weight
1.63 kg
Manufacturer’s guarantee
3 years
Dimensions
70 x 270 x 345 mm (H x W x D)
Colour
Black
