MSI MAG X870E TOMAHAWK WIFI AM5 Motherboard

MSI MAG X870E TOMAHAWK WIFI AM5 Motherboard

Item No. 10277340

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

4.8/5 13 reviews
INFY_BNPL12_GAMING_WK52_1 INFYCNTRL_FNDD_1
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 514087

This MSI motherboard lets you build a powerful PC based on a 9000 series AMD processor and DDR5 RAM. Fancy a gaming rig or a content creator's workstation? Using the PCIe 5.0 expansion slot you can hook up most recent graphics cards for a truly high-end setup. The best thing about a PC is upgradeability. That's why this motherboard is seriously tough – the MSI Steel Armor II reinforcement means you're set up for years of heavy use.

Good to know

- There's a WiFi 7 chip built-in and a 5G LAN port for incredibly fast wireless and wired internet
- The 40 Gbps USB Type-C ports are great for high-speed SSDs, and there's plenty of USB-A ports as well
- With the extended heatsink and M.2 Thermal Frozr Shield II it's ready to keep cool even a high-performance setup
- It fits up to 2 gen 5.0 M.2 SSDs, with a whopping 64 GB/s of data transfer
- Choose water or fan cooling - this motherboard has connectors for either

Technical specifications for MSI MAG X870E TOMAHAWK WIFI AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X870E
Socket
AM5
Processor models supported
AMD Ryzen 9000 Series desktop processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Multi-GPU support
No
Cooling features
- Fan cooling
- Liquid cooling
- Extended heatsink
- VRM heatsink
- MOSFET thermal pads
- M.2 Shield Frozr II
- Enlarged chipset heatsink
Operating systems supported
Windows 11 or later

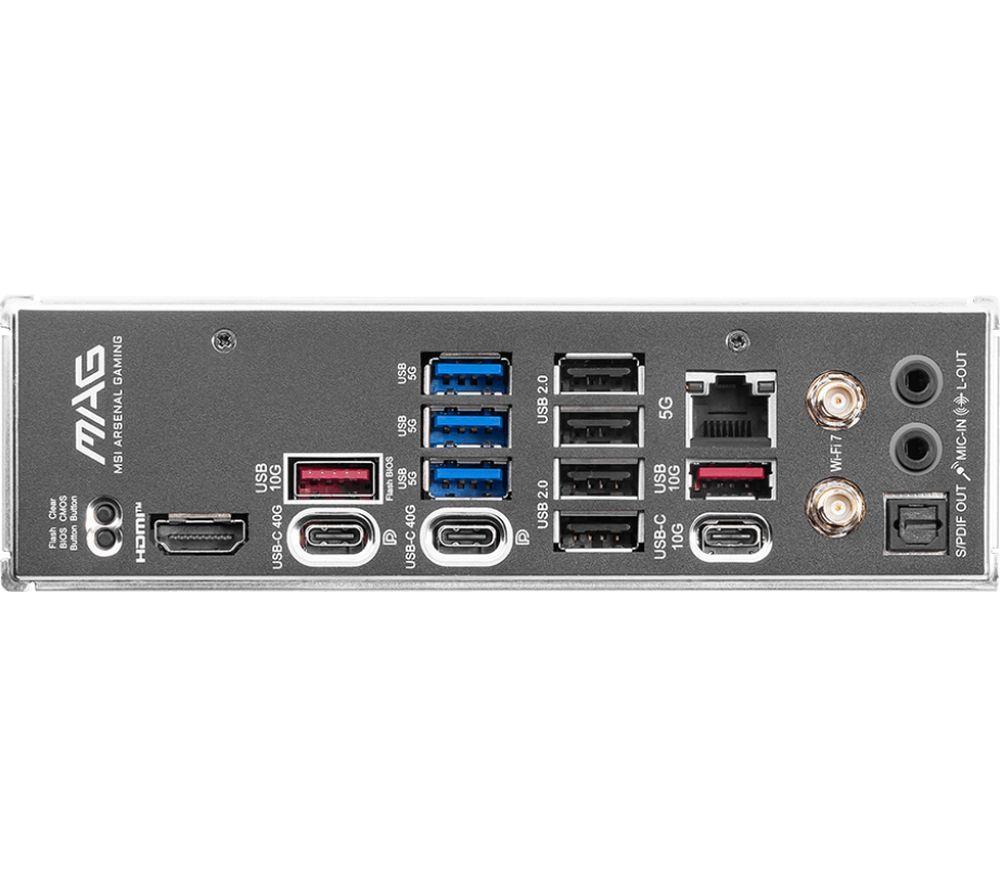

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 8126-CG 5G LAN
Audio
7.1-Channel USB High Performance Audio
USB
- USB Type-C x 3
- USB 3.2 gen 2 x 3
- USB 3.2 gen 1 x 2
- USB 2.0 x 4
Expansion slots
- PCIe 5.0 (x16 slot) x 1
- PCIe 4.0 (x16 slot) x 1
- PCIe 3.0 (x1 slot) x 1
Storage slots
- SATA x 4 (6 GB/s)
- M.2 Gen5 x 2 (128 GB/s)
- M.2 Gen4 x 2 (64 GB/s)
Cooling
- CPU fan 8-pin x 1
- Combo Fan (Pump_Sys Fan) x 1
- System fan x 6
Buttons
- Flash BIOS
- CMOS Button
Power
- Power Connector (ATX_PWR) x 1
- Power Connector (CPU_PWR) x 2
USB
- USB Type-C x 3
- USB 2.0 x 2

GENERAL

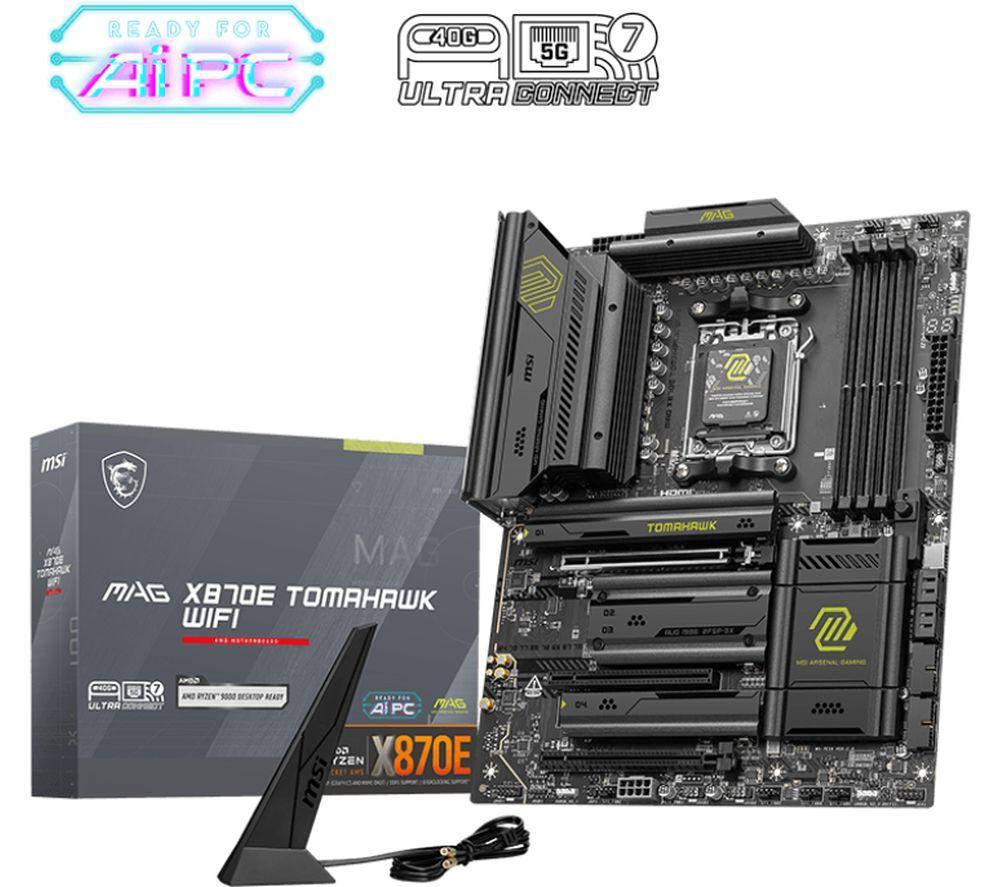

Box contents
- MSI MAG X870E TOMAHAWK WIFI AM5 Motherboard
- SATA cables x 2
- EZ M.2 clip II remover
- EZ WiFi antenna
- EZ front panel cable
- 1 to 3 EZ Conn-cable
- USB driver
- Cable sticker
- M.2 plate screw
- User guide
Weight
1.71 kg
Manufacturer’s guarantee
3 years
Dimensions
73 x 243 x 304 mm (H x W x D)
Colour
Black
