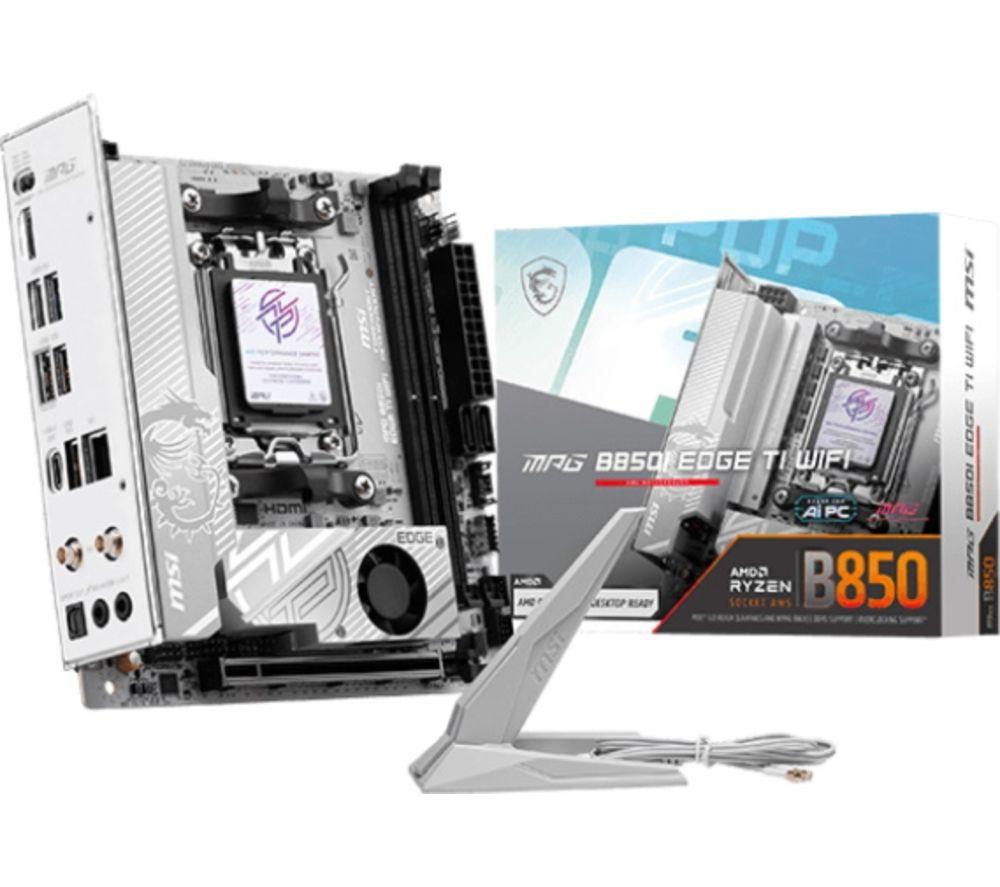

MSI MPG B850I EDGE TI WIFI AM5 Motherboard

MSI MPG B850I EDGE TI WIFI AM5 Motherboard

Item No. 10291921

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

INFYCNTRL_BNPL12_GENERIC_WK07 INFYCNTRL_FNDD_WK32
Form factor: mini ITX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 2 / Max RAM: 96 GB DDR5
3 year guarantee
Form factor: mini ITX
Socket: AMD AM5
Chipset: AMD B850
Memory: DIMM x 2 / Max RAM: 96 GB DDR5
3 year guarantee
Product code: 799639

Building a compact desktop PC? Start off strong with this microITX board from MSI. It works with AMD 9000, 8000 & 7000 Series processors, giving you loads of choices. Plus, with 2 DIMM slots, you can add up to 96 GB DDR5 RAM - great for multitasking. Dual M.2 connectors, including a PCIe 5.0, give flexible and fast storage options.

Good to know

- There's a WiFi 7 chip built-in, so you can expect ultra-fast and reliable wireless connectivity
- With the extended heatsink and M.2 Thermal Frozr Guards, it's ready to keep cool even in high-performance setups
- EZ Debug LED helps you troubleshoot any issues quickly
- The EZ Front Panel Cable makes connecting the front panel a breeze, taking the hassle out of the build process

Technical specifications for MSI MPG B850I EDGE TI WIFI AM5 Motherboard

OVERVIEW

Form factor
Mini IXT
Chipset
AMD B850
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000, 8000 & 7000 Series desktop processors
Memory slots
2 x UDIMM (Max RAM: 96 GB)
Memory standard
DDR5
Cooling features
- Frozr heatsink design
- Extended heatsink
- M.2 Shield Frozr
- Thermal pad & additional choke pad
Operating systems supported
Windows 11

EXTERNAL CONNECTIVITY

Video output
HDMI 2.1 x 1
LAN
- Realtek 5Gbps LAN
- Bluetooth 5.4
Audio
8-Channel (7.1) HD Audio with Audio Boost 5
USB
- USB Type-C (20Gbps) x 1
- USB Type-C (10Gbps) x 2
- USB Type-A (5Gbps) x 4
- USB 2.0 x 2

INTERNAL CONNECTIVITY

BIOS
Flash BIOS
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x8) x 1
- PCIe 4.0 (x4) x 1
Storage slots
- SATA x 2 (6 GB/s)
- M.2 Gen4 x 1 (64 GB/s)
- M.2 Gen5 X 1 (128 GB/s)
Cooling
- CPU fan x 1
- Combo fan x 1
- Pump fan x 1
Case
- Power LED
- HDD LED
- Reset
- Front Panel Audio
Buttons
Clear CMOS Button
Power
- Power Connector (ATX_PWR) x 1
- Power Connector (CPU_PWR) x 1
Other internal connections
- Addressable V2 RGB connector x 2
- TPM header x 1
- EZ Debug LED x 4
- EZ Memory Detection LED x 1

GENERAL

Box contents
- MSIMPG B850I EDGE TI WIFI AM5 Motherboard
- Quick installation guide
- Cable sticker
- EZ Wi-Fi antenna
- SATA Cable
- M.2 screws x 2
- ARGB extension cable
- 1 to 3 EZ conn-cable
- EZ Front panel cable
Weight
1190 g
Manufacturer’s guarantee
3 years
Dimensions
57 x 225 x 275 mm (H x W x D)
Colour
White
