MSI PRO B760M-P LGA1700 Motherboard

MSI PRO B760M-P LGA1700 Motherboard

Item No. 10274214
Form factor: microATX
Socket: Intel® 1700
Chipset: Intel® B760
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee

Free Next Day Delivery (All day 8am-8pm) on selected Gaming

£99.99

Spread the cost with Currys flexpay

Learn more
icon-pound

Your available credit to spend: -1.0

Make monthly payments

From £5.09 per month for 26 months*

Or buy now, pay later

Pay as much or as little as you like for 6 months. Settle in full by 16 January 2026 & pay no interest

*Illustrative example: Credit amount £99.99. Pay 26 monthly payments of £5.09. Total amount payable £132.34. The interest rate for this purchase is 29.9%.

Representative example: Rate of interest 29.9% (variable). 29.9% APR representative (variable). Assumed Credit Limit £1,200.

Credit offers require a Currys flexpay account. With a Currys flexpay account you get a credit limit that you can use for future purchases at your standard flexpay interest rate.
Your personalised APR will be set by Creation Consumer Finance Ltd and will depend on your individual circumstances. Monthly prices shown reflect a 29.9% Representative APR (variable) excluding interest free or low interest offers.
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later

What you’ll need to make it even better

Form factor: microATX
Socket: Intel® 1700
Chipset: Intel® B760
Memory: DIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 716302

This MSI motherboard lets you build a powerful PC based on a 14th gen Intel® processor and DDR5 RAM. Fancy a gaming rig or a content creator‘s workstation? Using the PCIe 4.0 expansion slot you can hook up most recent graphics cards for a truly high-end setup. Best thing about a PC is upgradeability. That's why this mother board is seriously tough – the MSI Steel Armor reinforcement means you're up for many years of heavy use.

Good to know

2.5G Ethernet port is great for lightning fast wired internet connection
- With the extended heatsink and M.2 Thermal Frozr Guards it's ready to keep cool even a high-performance setup
- It fits 2 gen 4.0 M.2 SSDs, each speeding up to 64 Gbps of data transfer

- Choose water or fan cooling - this motherboard has connectors for either

Technical specifications for MSI PRO B760M-P LGA1700 Motherboard

OVERVIEW

Form factor
Micro ATX
Chipset
Intel B760
Socket
Intel LGA1700
Processor models supported
12th/13th/14th generation Intel Core / Pentium Gold / Celeron processors
Memory slots
4 x DIMM (Max RAM: 256 GB)
Memory standard
DDR5
Cooling features
- Fan cooling
- Liquid cooling
- Extended PWM heatsink
- Plated VRM heatsink
- Chipset heatsink
- MOSFET thermal pads
- M.2 Shield Frozr
Operating systems supported
- Windows 10
- Windows 11

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Gigabit Ethernet port x 1
Audio
- Realtek® ALC897 Codec x 3
- 7.1-Channel High-Definition Audio
USB
- USB 3.2 x 2
- USB 2.0 x 4
Other external connections
- USB 3.2 Gen 1 5Gbps (Type-A)
- USB 3.2 Gen 2 10Gbps (Type-C)
Expansion slots
- PCIe 4.0 (x16 slot) x 1
- PCIe 4.0 (x1 slot) x 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 Gen4 x 2 (64 GB/s)
Cooling
- CPU fan x 1
- System fan x 2
- Front panel x 2
Buttons
- Power
- Reset
Power
- Power connector (ATX_PWR) x 1
- Power connector (CPU_PWR) x 1
Other internal connections
- RGB LED Connector x 1
- EZ Debug LED x 4
- Front panel audio connector x 1
- System panel connectors x 2
- Chassis intrusion connector x 1
- TPM module connector x 1
- Tuning controller connector x 1
- Addressable V2 RGB LED connector x 2
- RGB LED 4-pin x 1
USB
- USB Type-C x 1
- USB 2.0 x 4

GENERAL

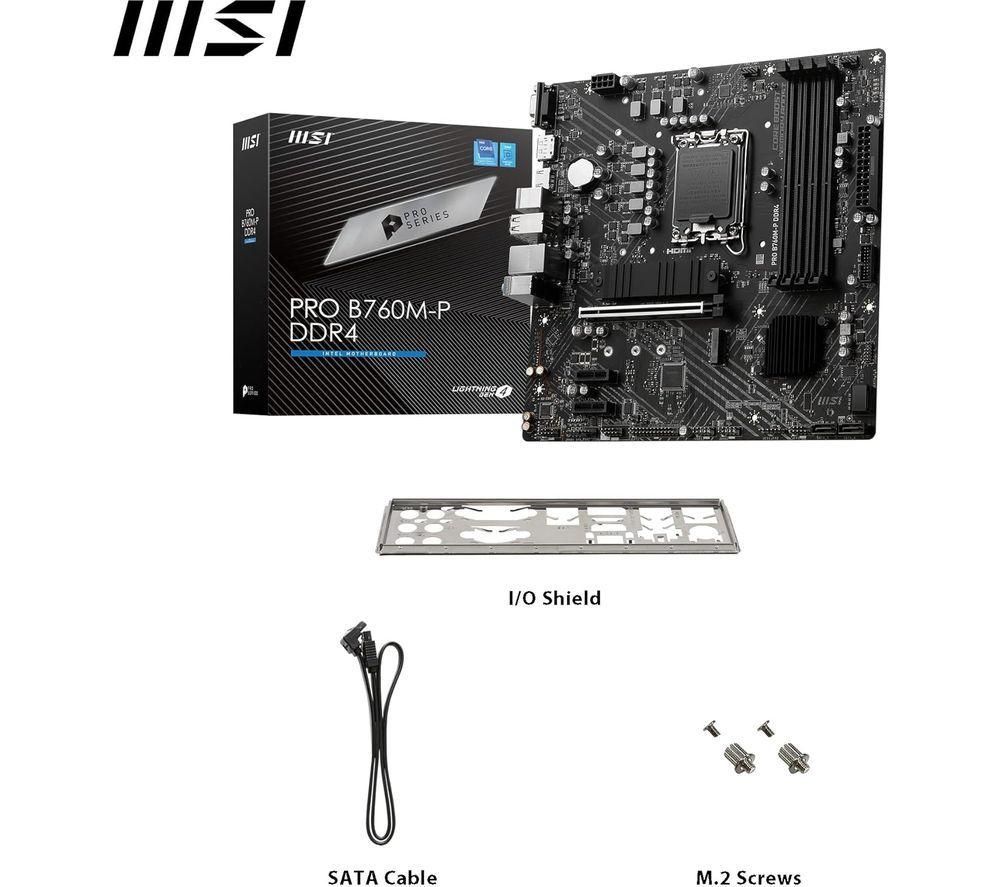

Box contents
- MSI PRO B760M-P LGA1700 Motherboard
- M.2 screw/standoff sets x 2
- SATA cable
- IO shield
- Quick installation guide
Weight
0.91 kg
Manufacturer’s guarantee
3 years
Dimensions
243 x 243 mm (H x W)
Colour
Black
