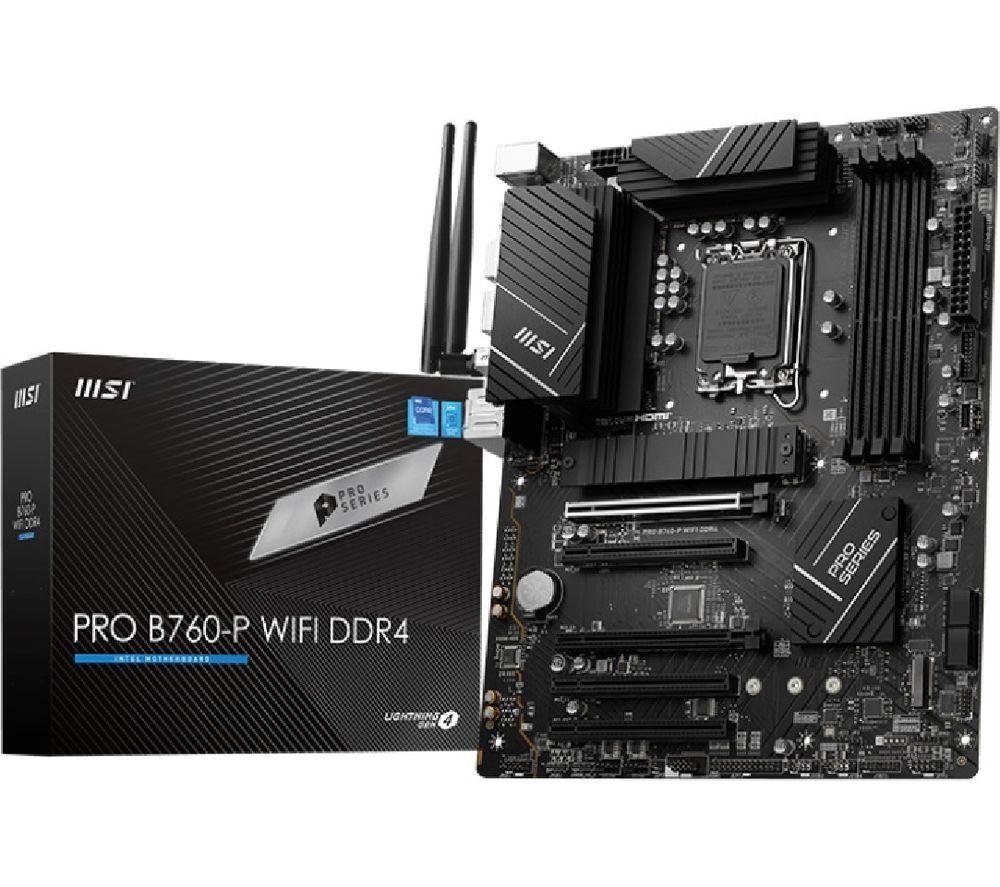

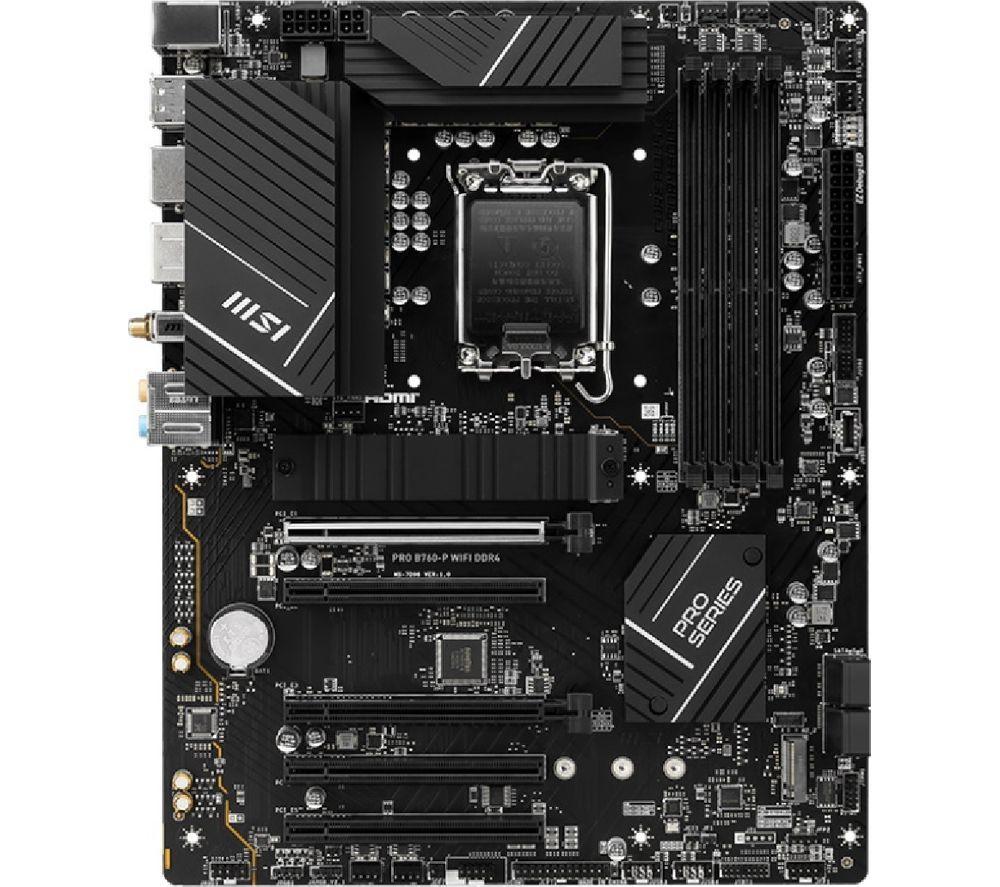

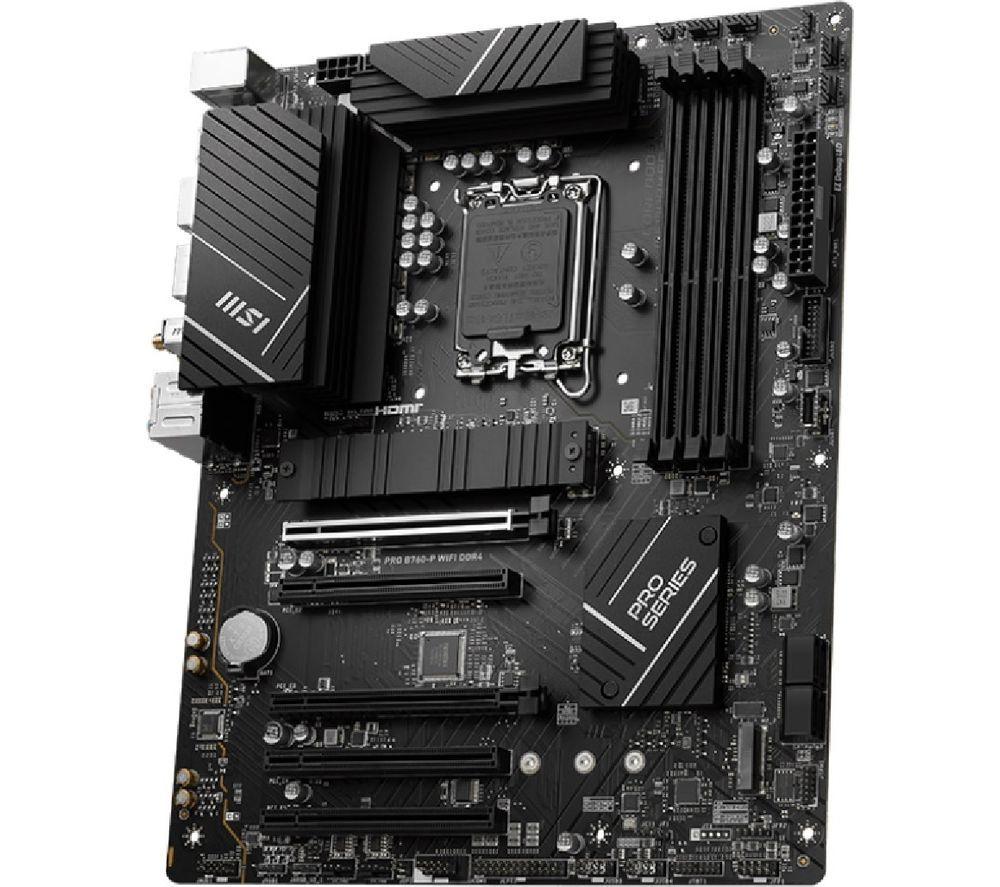

MSI PRO B760-P WIFI DDR4 LGA1700 Motherboard

MSI PRO B760-P WIFI DDR4 LGA1700 Motherboard

Item No. 10262733

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

5/5 5 reviews
INFY_BNPL12_GAMING_WK52_1 COM_WK32_PS_COMPONENTS_PERIPHERALS_DATA_FNDD
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® B760
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Form factor: ATX
Socket: Intel® 1700
Chipset: Intel® B760
Memory: DIMM x 4 / Max RAM: 128 GB DDR4
3 year guarantee
Product code: 529136

This MSI motherboard lets you build a powerful PC based on a 14th gen Intel® processor and DDR4 RAM. Fancy a gaming rig or a content creator‘s workstation? Using the PCIe 4.0 expansion slot you can hook up most graphics cards for a truly high-end setup. Best thing about a PC is upgradeability. That's why this mother board is seriously tough – the MSI Steel Armor reinforcement means you're up for many years of heavy use.

Good to know

- There's an Intel® WiFi 6E chip built-in, so you can expect fast and reliable wireless connectivity
- 2.5G Ethernet port is great for lightning fast wired internet connection
- With the extended heatsink and M.2 Thermal Frozr Guards it's ready to keep cool even a high-performance setup
- Fits up to 2 gen 4.0 M.2 SSDs, each speeding up to 64 GB/s of data transfer
- Choose water or fan cooling, this motherboard has connectors for either

Technical specifications for MSI PRO B760-P WIFI DDR4 LGA1700 Motherboard

OVERVIEW

Form factor
ATX
Chipset
Intel® B760
Socket
Intel® LGA1700
Processor models supported
12th/13th/14th generation Intel® Core™ / Pentium® Gold / Celeron® processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR4
Cooling features
- Fan cooling
- Liquid cooling
- Extended PWM heatsink
- Plated VRM heatsink
- Chipset heatsink
- MOSFET thermal pads
- M.2 Shield Frozr
Operating systems supported
- Windows 10
- Windows 11

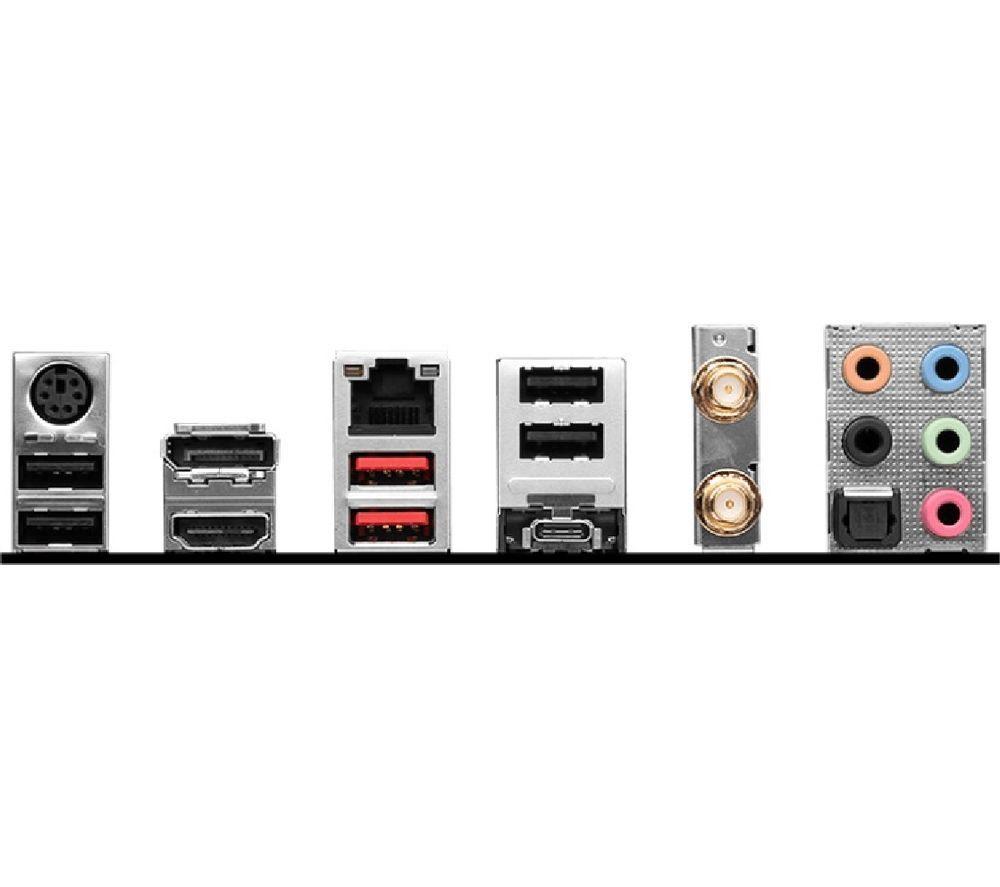

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Gigabit Ethernet port x 1
Audio
- Realtek® ALC897 Codec
- 7.1-Channel High-Definition Audio
USB
- USB 3.2 Gen 2 x 3
- USB 3.2 Gen 1 x 3
Expansion slots
- PCIe 4.0 (x16 slot) x 2
- PCIe 3.0 (x1 slot) x 3
Storage slots
- SATA x 4 (6 GB/s)
- M.2 Gen4 x 2 (64 GB/s)
Cooling
- CPU fan x 1
- System fan x 2
- Pump fan x 2
Power
- Power connector (ATX_PWR) x 1
- Power connector (CPU_PWR) x 2
Other internal connections
- RGB LED Connector x 1
- EZ Debug LED x 4
- Front panel audio connector x 1
- Chassis intrusion connector x 1
- TPM module connector x 1
- TBT connector x 1
- Addressable V2 RGB LED connector x 2
- RGB LED 4-pin x 1
USB
- USB Type-C x 1
- USB 2.0 x 4

GENERAL

Box contents
- MSI PRO B760-P WIFI DDR4 LGA1700 Motherboard
- WiFi Antenna
- EZ M.2 Clip
- SATA cable
- IO shield
- Quick installation guide
Weight
1.5 kg
Manufacturer’s guarantee
3 years
Dimensions
304.8 x 243.84 mm (H x W)
Colour
Black
