MSI X870E GAMING PLUS WIFI AM5 Motherboard

MSI X870E GAMING PLUS WIFI AM5 Motherboard

Item No. 10288901

Found it cheaper? We’ll match it.
We’ll price match against any other UK retailer, online or in-store.

Exclusions (eg. ink) and conditions apply. Claim within 7 days.

How to request a price match

Ok

5/5 1 reviews
INFYCNTRL_BNPL12_GENERIC_WK07 INFYWG_FNDD_WK22
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: UDIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Form factor: ATX
Socket: AMD AM5
Chipset: AMD X870E
Memory: UDIMM x 4 / Max RAM: 256 GB DDR5
3 year guarantee
Product code: 666313

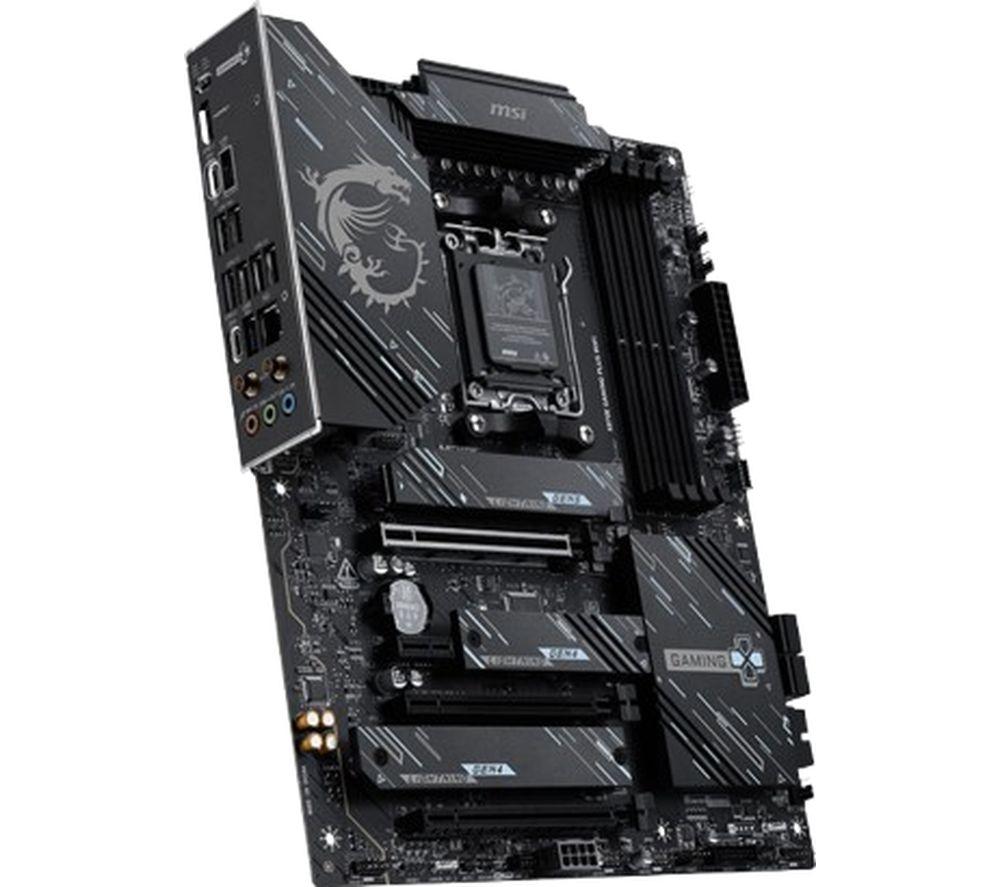

This MSI motherboard lets you build a powerful PC based on a 9000 series AMD processor and DDR5 RAM. Fancy a gaming rig or a content creator's workstation? Using the PCIe 5.0 expansion slot you can hook up most recent graphics cards for a truly high-end setup. The best thing about a PC is upgradeability. That's why this motherboard is seriously tough – the MSI Steel Armor II reinforcement means you're set up for years of heavy use.

Good to know

- There's a WiFi 7 chip built-in and a 5G LAN port for incredibly fast wireless and wired internet
- The 40 Gbps USB Type-C ports are great for high-speed SSDs, and there's plenty of USB-A ports as well
- With the extended heatsink and M.2 Thermal Frozr Shield II it's ready to keep cool even a high-performance setup
- It fits up to 2 gen 5.0 M.2 SSDs, with a whopping 64 GB/s of data transfer
- Choose water or fan cooling - this motherboard has connectors for either

Technical specifications for MSI X870E GAMING PLUS WIFI AM5 Motherboard

OVERVIEW

Form factor
ATX
Chipset
AMD X870E
Socket
AMD AM5
Processor models supported
AMD Ryzen 9000 Series desktop processors
Memory slots
4 x UDIMM (Max RAM: 256 GB)
Memory standard
DDR5
Multi-GPU support
No
Cooling features
- Fan cooling
- Liquid cooling
Operating systems supported
Windows 11 or later

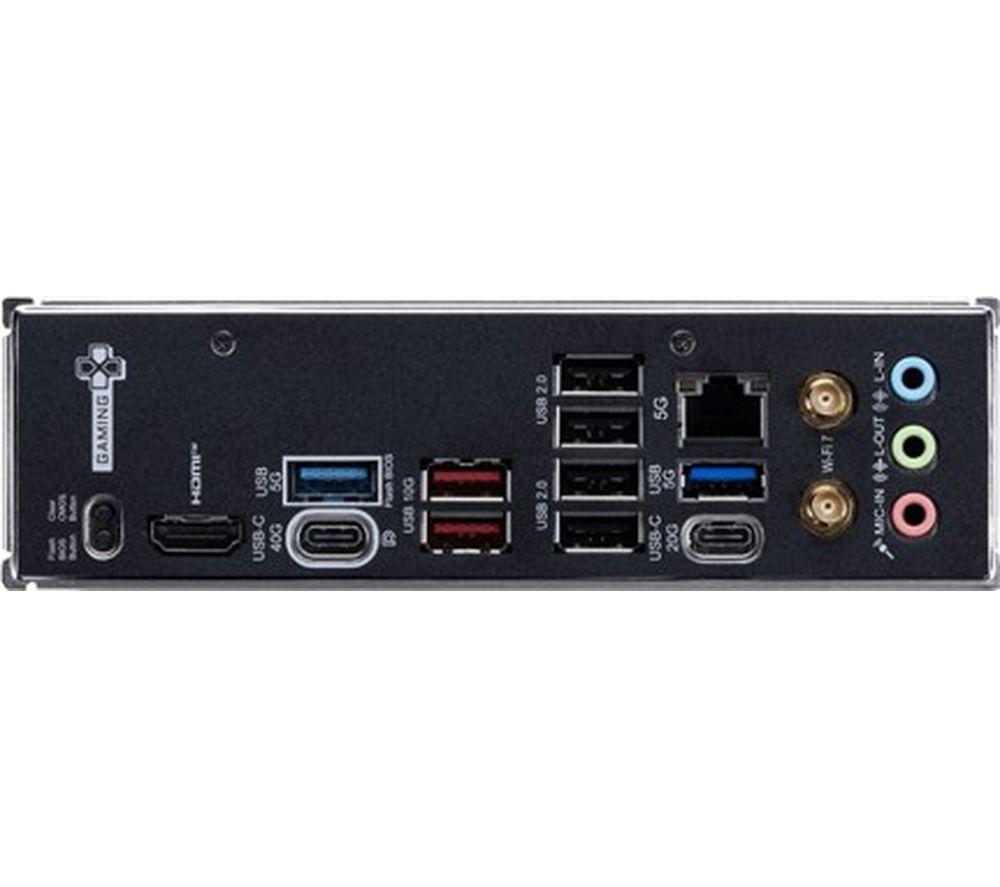

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 8126VB 5G LAN
Audio
- Realtek ALC897
- 7.1-Channel High-Definition audio
USB
- USB 2.0 (Rear) x 4
- USB 2.0 (Front) x 6
- USB 5Gbps Type A (Rear) x 2
- USB 5Gbps Type A (Front) x 4
- USB 10Gbps Type A (Rear) x 2
- USB 10Gbps Type C (Front) x 1
- USB 20Gbps Type C (Rear) x 1
- USB 40Gbps Type C (Rear) x 1
Other external connections
- Wi-Fi 7
- Bluetooth 5.4
- Optical S/PDIF
- Clear CMOS Button
- Flash BIOS Button

INTERNAL CONNECTIVITY

BIOS
UEFI AMI BIOS
Expansion slots
- PCIe (x16) x 3
- PCIe (x1) x 1
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 3
Cooling
- CPU fan 4-pin x 1
- Combo Fan (Pump_Sys Fan) x 1
- System fan x 6
Case
- EZ Conn-header (JAF_1) x 1
- Front Panel (JFP) x 2
- Chassis Intrusion (JCI) x 1
- Front Audio (JAUD) x 1
Buttons
- Flash BIOS
- CMOS Button
Power
- 24-pin ATX x 1
- 8-pin CPU x 2
- 8-pin PCIe x1
Sensors
- Thermal sensor
- Fan sensor
Other internal connections
- EZ Conn-header (JAF_1) x 1
- Front Panel (JFP) x 2
- Chassis Intrusion (JCI) x 1
- Front Audio (JAUD) x 1
- Tuning Controller connector (JDASH) x 1
- Addressable V2 RGB LED connector (JARGB_V2) x 3
- RGB LED connector (JRGB) x 1
- TPM pin header (Support TPM 2.0) x 1
USB
- USB 2.0 ports x 6
- USB Type-A (5Gbps) x 4
- USB Type-C (10Gbps) x 1

GENERAL

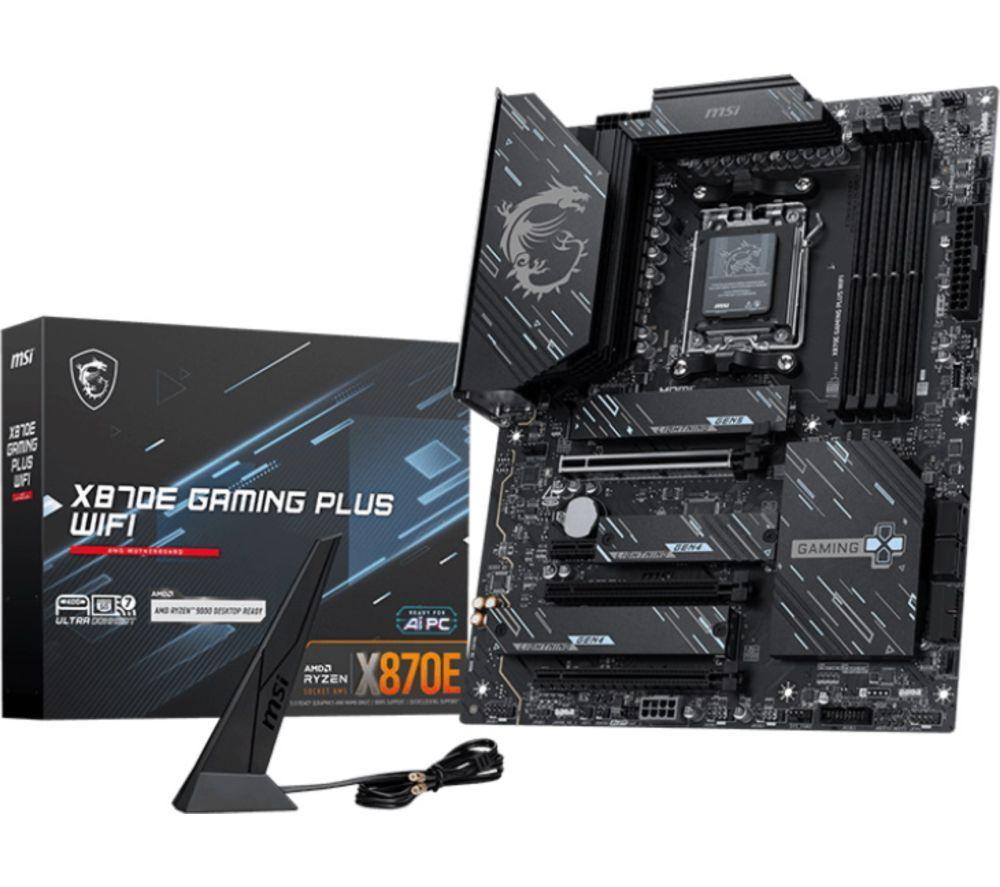

Box contents
- MSI X870E GAMING PLUS WIFI AM5 Motherboard
- Quick Installation Guide
- SATA Cables x 2
- EZ M.2 Clip II
- EZ M.2 Clip II Remover
- Cable Sticker
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable
Weight
1.6 kg
Manufacturer’s guarantee
3 years
Dimensions
70 x 243 x 304 mm (H x W x D)
Colour
Black
