ASUS ROG STRIX B650E-F AM5 Motherboard

ASUS ROG STRIX B650E-F AM5 Motherboard

Item No. 10246110
INFYCNTRL_BNPL12_CG_WK43_Components COM_WK32_PS_COMPONENTS_PERIPHERALS_DATA_FNDD
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B650
Memory: DIMM x 4 / Max RAM: 128 GB DDR5
3 year guarantee
Free Next Day Delivery (All day 8am-8pm) on selected Gaming
£199.99 Save £20.00
Was £219.99 (from 05/05/25 to 11/06/25)

Spread the cost with Currys flexpay

Learn more
icon-pound

Your available credit to spend: -1.0

Make monthly payments

From £8.10 per month for 36 months*

Or buy now, pay later

Pay as much or as little as you like for 6 months. Settle in full by 20 December 2025 & pay no interest

*Illustrative example: Credit amount £199.99. Pay 36 monthly payments of £8.10. Total amount payable £291.60. The interest rate for this purchase is 29.9%.

Representative example: Rate of interest 29.9% (variable). 29.9% APR representative (variable). Assumed Credit Limit £1,200.

Credit offers require a Currys flexpay account. With a Currys flexpay account you get a credit limit that you can use for future purchases at your standard flexpay interest rate.
Your personalised APR will be set by Creation Consumer Finance Ltd and will depend on your individual circumstances. Monthly prices shown reflect a 29.9% Representative APR (variable) excluding interest free or low interest offers.
Deals and Offers
DOOM: The Dark Free with selected ASUS Products +2 more offers
Show More
Saved items limit reached (20/20)
To save this item, try removing something else from your Saved items.
Save for later
Saved
Form factor: ATX
Socket: AMD AM5
Chipset: AMD B650
Memory: DIMM x 4 / Max RAM: 128 GB DDR5
3 year guarantee
Product code: 612423

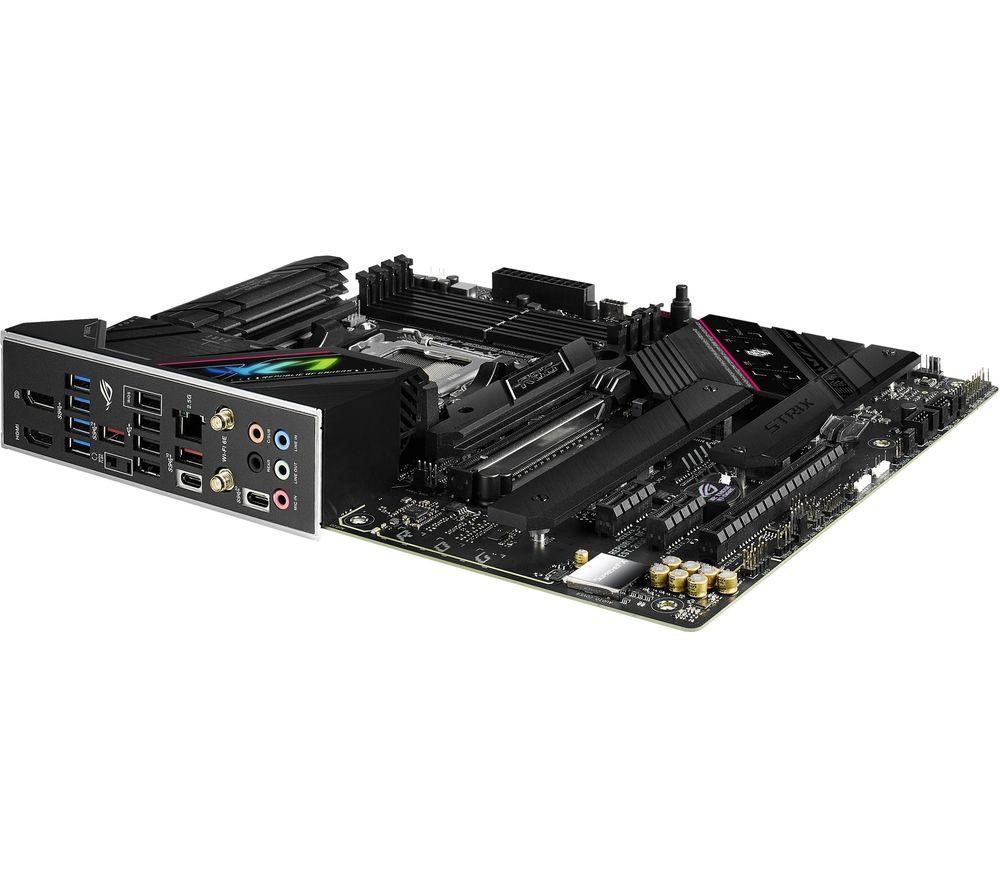

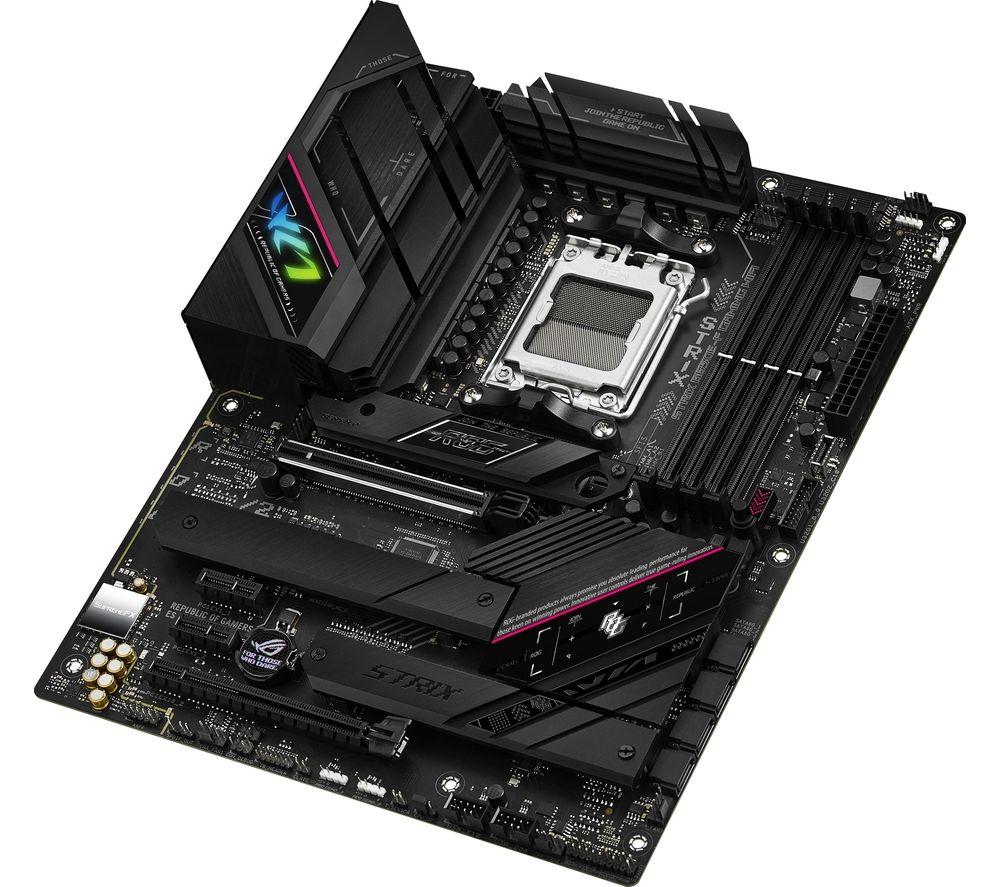

This ROG Strix ATX board is the perfect base for your gaming PC. It's ready for a 7000 Series AMD processor, so you can put all those cores to work. You can plug in up to 128 GB of DDR5 RAM and blaze through your workflows. And with PCIe 5.0 and 4.0 you can have high-speed storage that won't make you wait around.

Good to know

- With 2.5Gb Ethernet and WiFi 6E you'll have super-fast and rock-solid internet connection for online games
- To make sure your hardware stays cool under load, there are massive onboard heatsinks and 6 fan headers
- It's got an AIO Pump header, so you can slap some proper liquid cooling on your CPU
- Sync the RGB lighting on your motherboard with your components and peripherals using ASUS Aura Sync
- You'll be heard loud and clear - the AI noise cancellation blocks out background noise from your mic

Technical specifications for ASUS ROG STRIX B650E-F AM5 Motherboard

INTERNAL CONNECTIVITY

BIOS
- 256 Mb Flash ROM
- UEFI AMI BIOS
Expansion slots
- PCIe 5.0 (x16) x 1
- PCIe 4.0 (x16) (support x4 mode) x 1
- PCIe 4.0 (x1) x 2
Storage slots
- SATA x 4 (6 GB/s)
- M.2 x 3
Cooling
- 4-pin CPU fan header x 1
- 4-pin CPU OPT fan header x 1
- 4-pin AIO Pump header x 1
- 4-pin chassis fan headers x 4
Case
- Power LED x 1
- HDD LED x 1
- Clear CMOS header x 1
Buttons
- Power
- Reset
- BIOS FlashBack
Power
- 24-pin EATX x 1
- 8-pin ATX 12 V x 1
- 4-pin ATX 12 V x 1
Sensors
Thermal sensor header
Other internal connections
- Thunderbolt 4 header x 1
- Addressable Gen 2 headers x 3
- Aura RGB header x 1
- Clear CMOS header x 1
- COM Port header x 1
- Front Panel Audio header (AAFP) x 1
- S/PDIF Out header x 1
- 20-3 pin System Panel header x 1
- COM_DEBUG header x 1
- CPU Over Voltage jumper x 1
USB
- USB 3.2 Gen 2 connector (supports USB Type-C) x 1
- USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports) x 1
- USB 2.0 headers (supports 4 additional USB 2.0 ports) x 2

OVERVIEW

Form factor
ATX
Chipset
AMD B650
Socket
AMD AM5
Processor models supported
AMD Ryzen 7000 Series Desktop Processors
Memory slots
4 x DIMM (Max RAM: 128 GB)
Memory standard
DDR5
Operating systems supported
- Windows 10 (64-bit)
- Windows 11

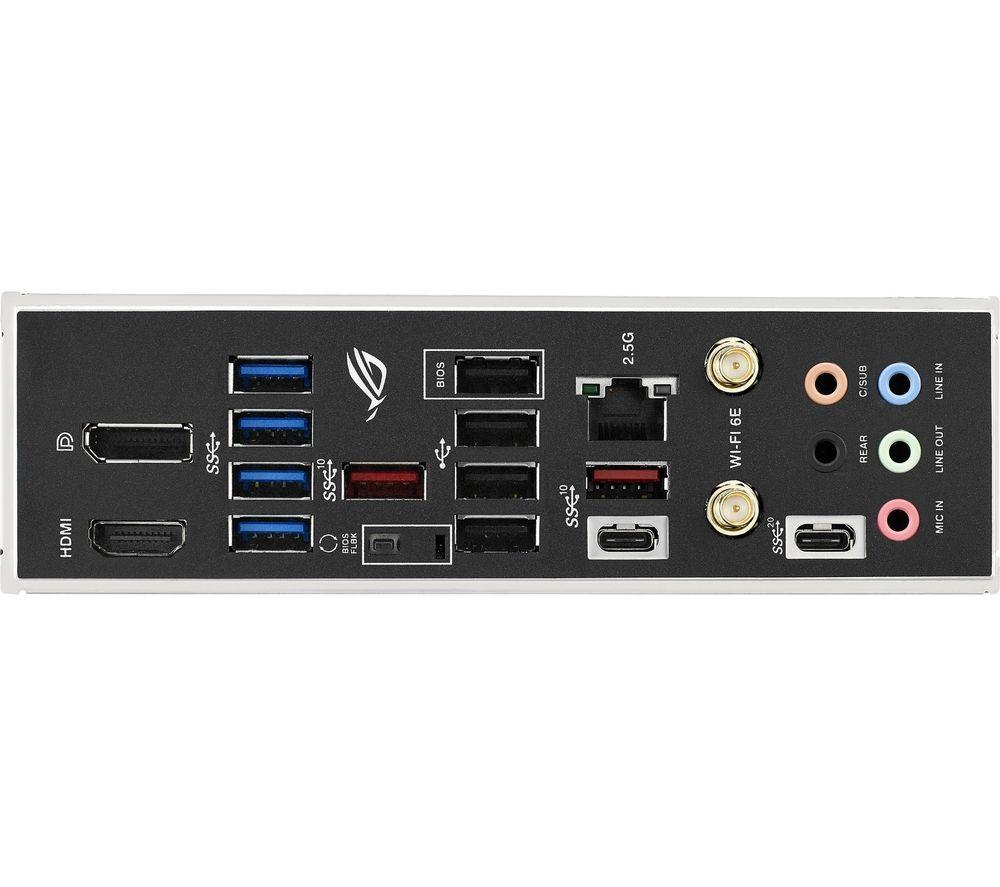

EXTERNAL CONNECTIVITY

Video output
- HDMI x 1
- DisplayPort x 1
LAN
Realtek 2.5Gb Ethernet x 1
Audio
Audio jacks x 5
USB
Rear:
- USB Type-C x 2
- USB 3.2 Gen 2 x 2
- USB 3.2 Gen 1 x 4
- USB 2.0 x 4
Front
- USB 3.2 Gen 2 (supports USB Type-C) x 1
- USB 3.2 Gen 1 (supports 2 additional USB 3.2 Gen 1 ports) x 1
- USB 2.0 (support 4 additional USB 2.0 ports) x 2
Other external connections
WiFi module x 1

GENERAL

Box contents
- Asus ROG STRIX B650E-F AM5 Motherboard
- I/O Shield
- WiFi antennas
- Cable ties pack
- SATA cables x 2
- M.2 thermal pad
- M.2 Q-Latch package
- M.2 rubber package x 2
- ROG key chain
- ROG Strix stickers
- ROG Strix thank you card
- User manual
Software included
- Armoury Crate
- AI Suite 3
- MyAsus
- FlexKey
- WinRAR
- ASUS EZ DIY
Weight
1.42 kg
Manufacturer’s guarantee
3 years
Dimensions
50 x 244 x 244 mm (H x W x D)
Colour
Black
